| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BR10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 15000-18000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/P, Western Union, T/T |
| Supply Ability: | 199 Sets per month |
| Machine Name: | Semi Automatic Packing Machine | Driven Type: | Electric |
|---|---|---|---|
| Packing Type: | Premade Bag,jar,bottle,box，carton | Machine Material: | Food Grade SS304 |
| Function: | Filling ,weighing | Packing Speed: | 15-35 Bags/min |
| Voltage: | 220V | Warranty: | 1 Year |
| System Out: | >4.8ton/day | Packing Accuracy: | ±0.1-1.5g |
| High Light: | 1.5g Semi Automatic Packing Machine,SS304 Semi Automatic Packing Machine,1.5g semi automatic packaging machine |
||
Electric driven semi-automatic beans bag filling and packing machine for
small business
Technical Features
1. Material conveying, weighing are completed automatically.
2. High weighing precision and material drop is controlled by manual with low cost system.
3. Easy to upgrade to automatic system.
| Technical Specification | |
| Model | ZH-BR10 |
| System Output | ≥4.8 Ton/Day |
| Packing Speed | 15-35 Bags/Min |
| Packing Accuracy | ±0.1-1.5g |
| Packing Type | Premade bag,jar,bottle,box,carton |
Application
It is suitable for packing many kinds of measuring equipments, and package different kinds of products such as:
puffy food,shrimp roll,peanut, shrimp chips, popcorn, cornmeal, seed and sugar,etc. which shape is roll, slice
and granule.
Machine system
1. Z type bucket conveyor:
For feeding the product to multihead weigher.
2. Multihead weigher:
For weighing the product.
3. Working platform:
For supporting the multihead weigher.
4.Timing hopper with dispener:
Timing hopper for collecting the product,and dispenser for discharging the product.

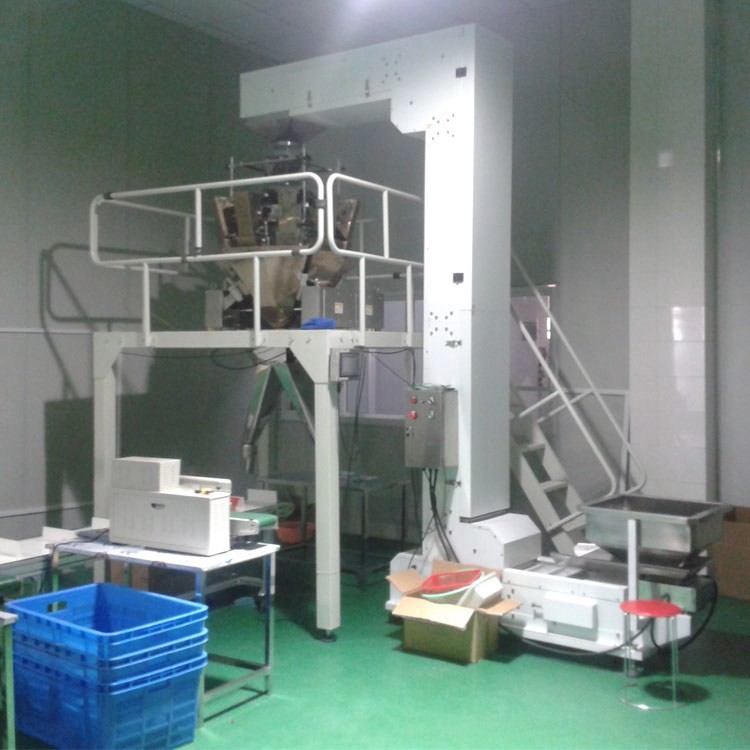

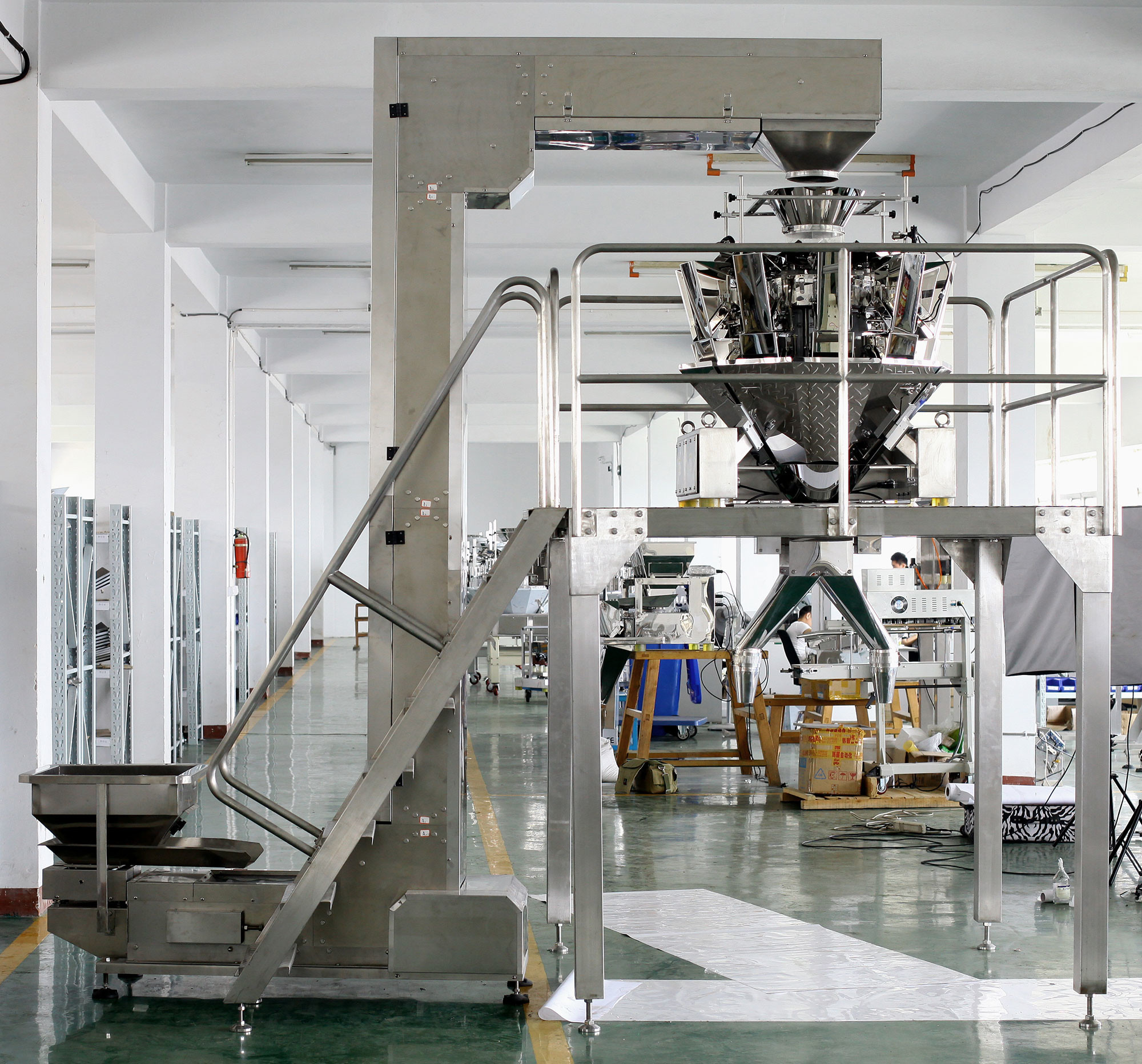

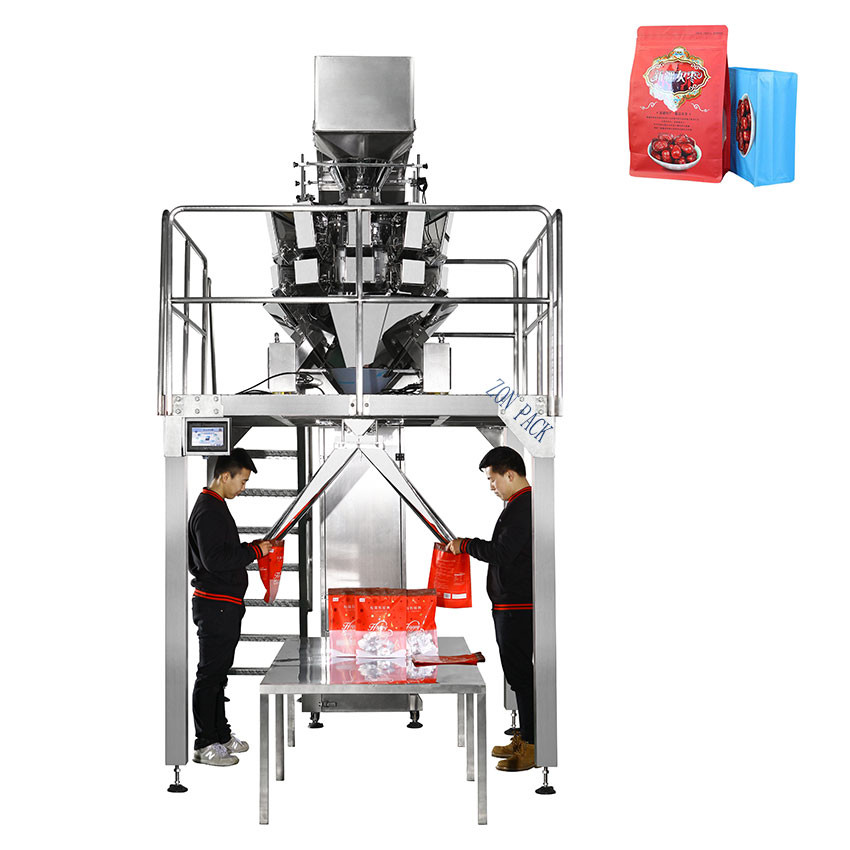

Machine Photos
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
