Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Puffed Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Filling ,Weighing,Sealing |
| Application: | Chemical, Commodity, Food, Machinery & Hardware | Power Parameter: | 220V 50/60Hz 2.2KW |
| Range Of Measuring (g): | 5000 | Language: | Multi-language |
| High Light: | 5000g banana chips packaging machine,1.5g banana chips packaging machine,5000g puff packing machine |
||

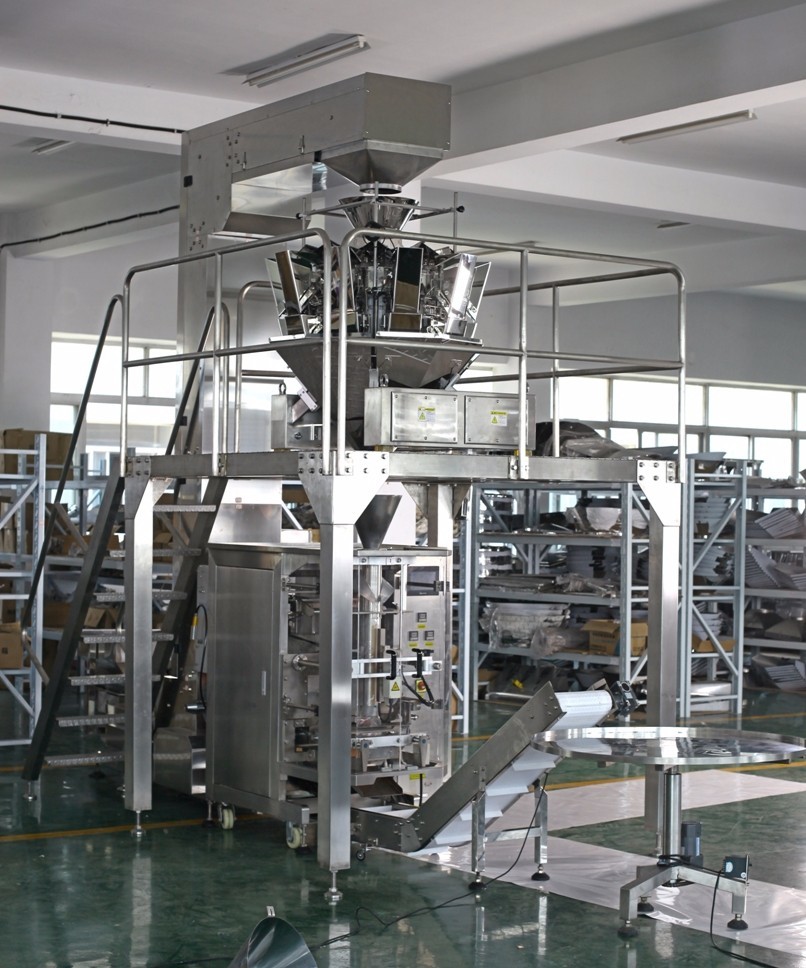

Food grade 10 heads weigher automatic apple/ banana chips bag packaging machine
Technical Feature
1. High capacity pillow sealing style.
2. PLC control, Bag length, packing volume, speed , etc can adjusted on the screen. The user can operate easily.
3. Adopt high accurate speed mathematical multihead electronic weigher to make metering and filling more accurate, more faster.
4. The machine can finish bag making, metering, filling, sealing, cutting, counting, and printing batch number automatically.
5. Packing material: PE pet, al foil, paper, penylon, PE and other heat-sealing compound material.
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application
1. Puffed food (photo chips, rice crust)
2. Many kinds of nuts ( peanuts, pistachio, hazelnuts)
3. Snack food ( beef jerky, cuttlefish pieces, jell, melon seeds, plums)
4. Freezing food (giue pudding, dumplings)
5. Candy, seeds, pet food, irregular materials in granule, globe pr piece shape

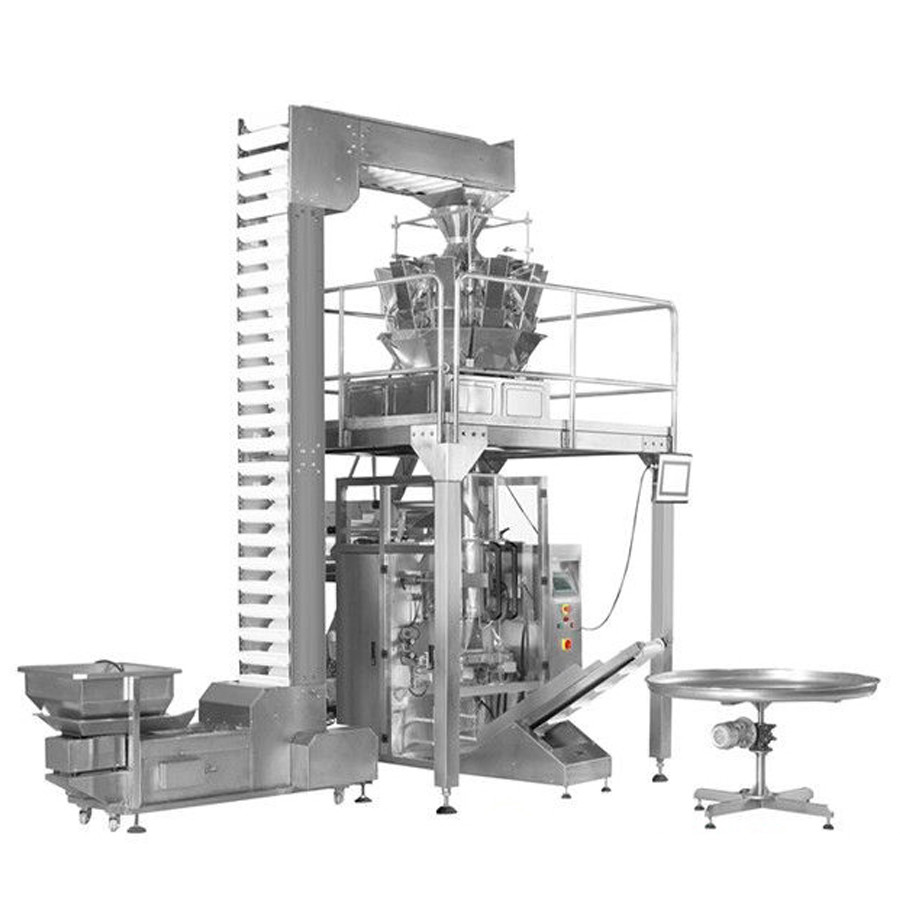

System Construction
1. Infeed bucket conveyor:
Convey the product to multihead weigher

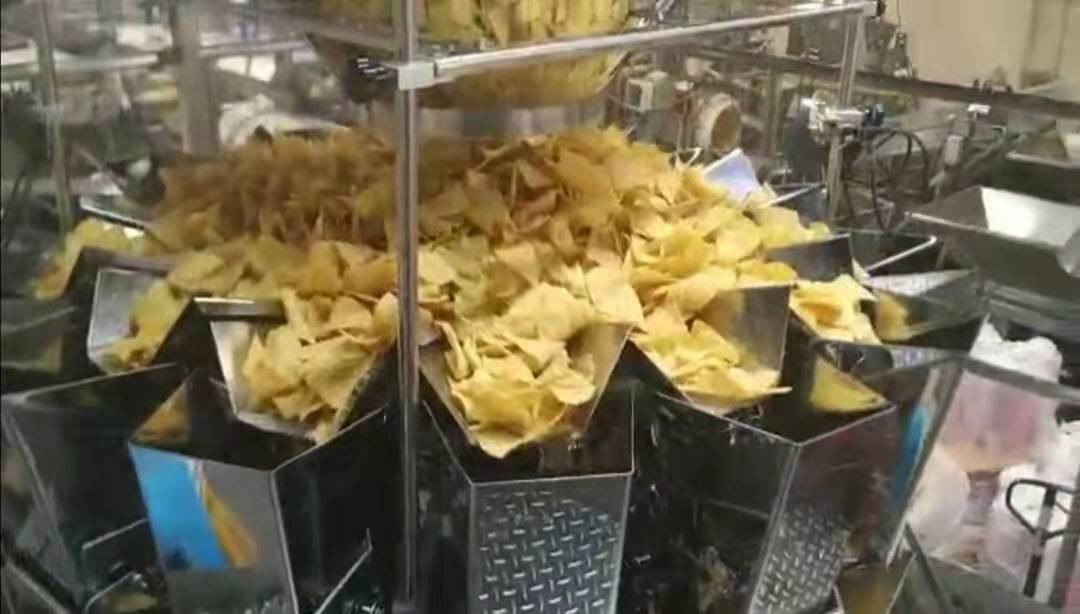

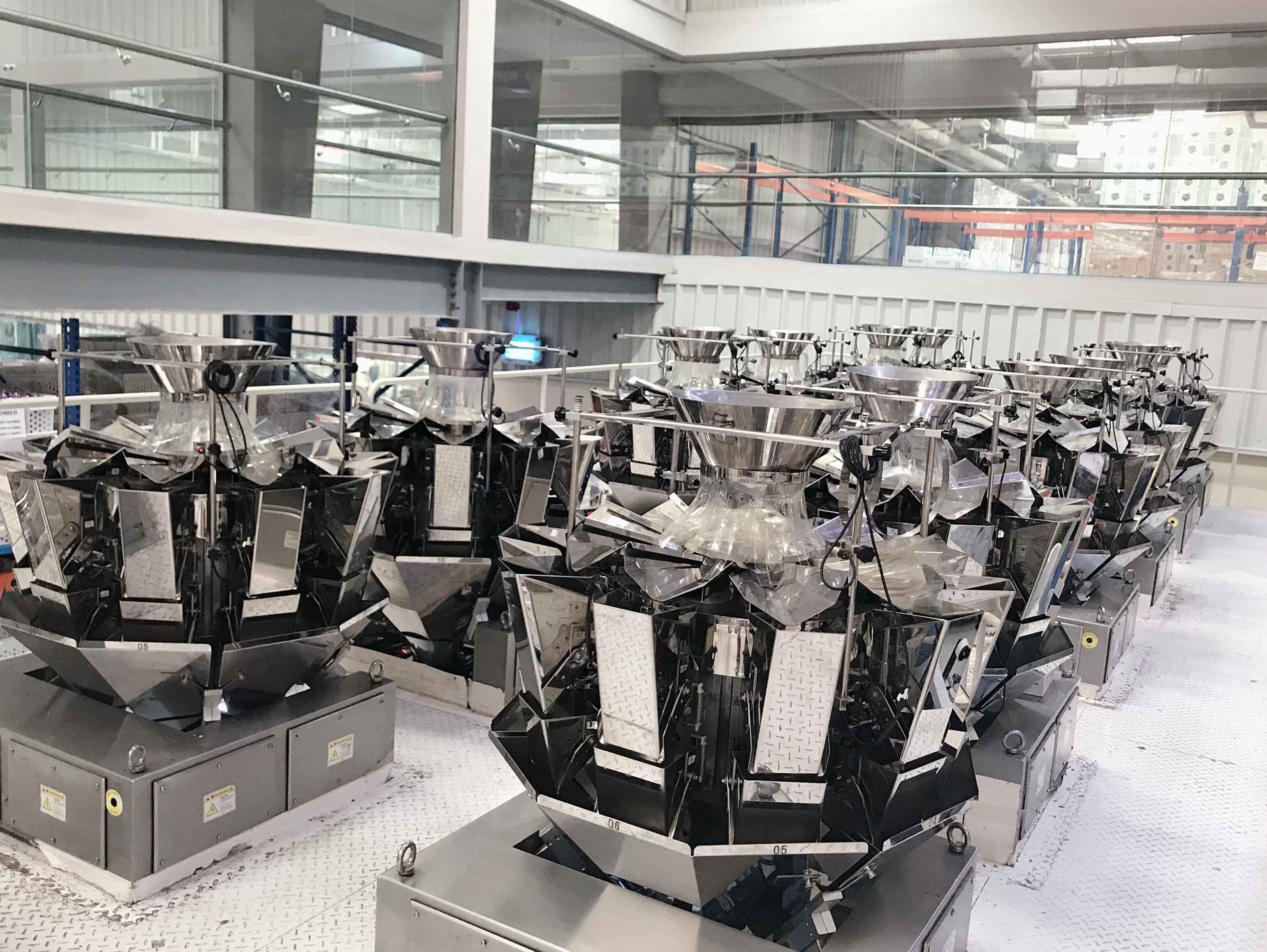

2. 10 heads multi weigher:
For product weighing.
3. Working platform:
Support the 10 heads multi weigher.
4. Vertical packing machine:
Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
