Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Multi-language: | Yes |
| Voltage: | 220V | VFFS: | V520 |
| Bag Width: | 90-250mm | Bag Length: | 80-350mm |
| Maximum Film Width: | 520mm | Packing Speed: | 30-70bag/min,depends On Your Product |
| Highlight: | V520 food grains packing machine,1.5g food grains packing machine,V520 Granule Packing Machine |
||

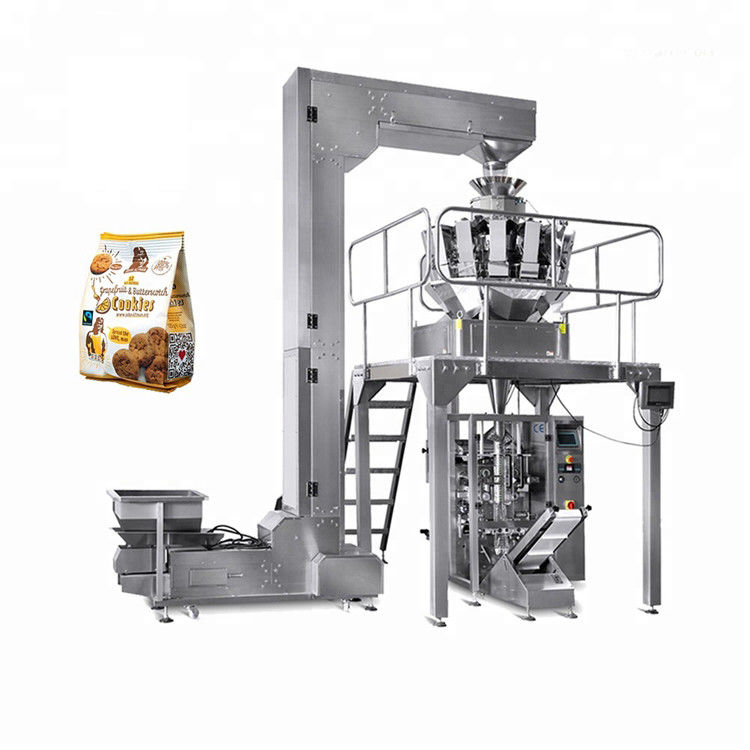

Multi functional food grains /granule packing machine vertical packing system
Technical Feature
1. English and Chinese screen display, operation is simple.
2. PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3. It can stock ten dispose, simple to change variety.
4. High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing &
cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS520: (W) 90-250 (L)80-350 |
| Machine dimension | it can be customized |
Application of Machine
It is suitable for weighing and packing candy, chocolate, jelly,pasta, melon seeds, roasted seeds, peanuts, pistachios,
almonds, cashews, nuts, coffee bean, chips ,raisins,plum, cereals and other leisure foods, pet food, puffed food,
vegetable, dehydrated vegetables ,fruits, sea food,frozen food, small hardware, etc.

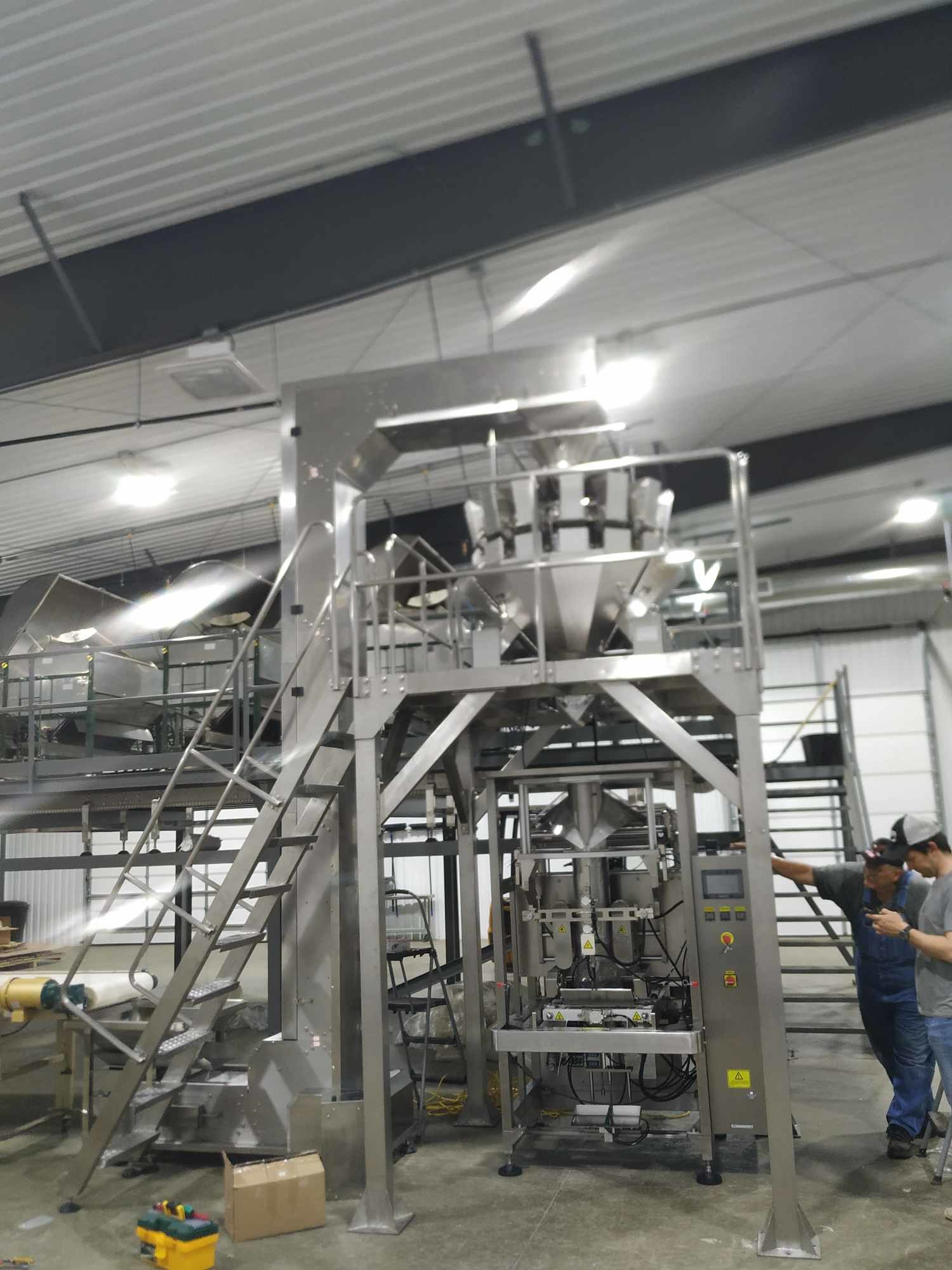

System Construction
1. Infeed bucket conveyor:
Raise material to multihead weigher which controls the start and stop of the hoister.
2. 10 heads multi weigher:
For product weighing.
3. Working platform:
Support multi weigher.
4. Vertical packing machine:
Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.

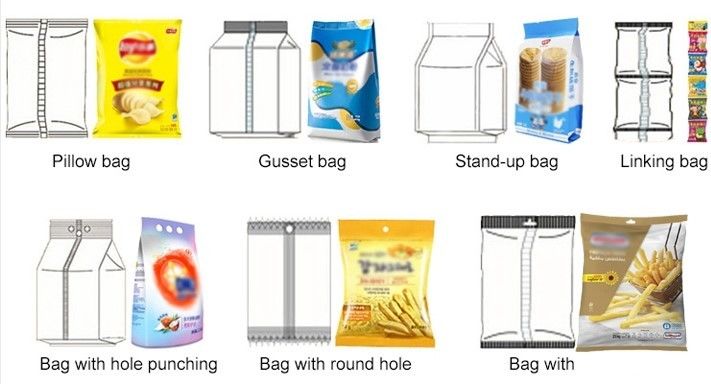

The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
