Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BG10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 35000-40000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35 Working days |
| Payment Terms: | L/C, D/A, Western Union, D/P, T/T |
| Supply Ability: | 199 Sets per month |
| Name: | Multihead Weigher Packing Machine | Packaging Type: | Flat Pouch,stand-up Pouch ,zipper Bag |
|---|---|---|---|
| Function: | Filling ,weighing ,sealing | Packing Speed: | 30-50bags/min,according To The Product |
| Weighing Range: | 5000g | Language: | Multi-language |
| Material: | 304SS Frame | Packing Speed: | 30-50 Bags/Min |
| High Light: | 2kg automatic weighing and filling machine,0.1g automatic weighing and filling machine,2000g pet food packaging machine |
||

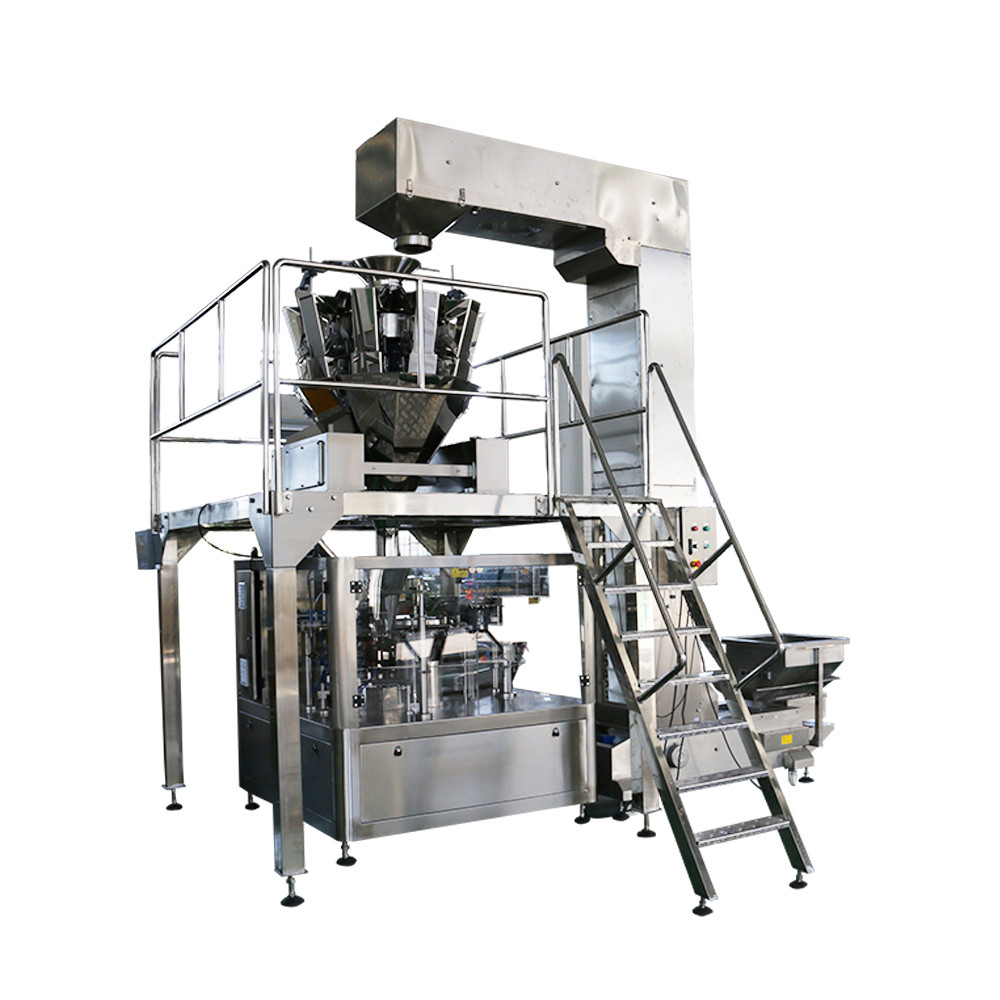

Automatic 1kg 2kg weighing and filling pet food packaging machine
Technical Feature
1. SUS304 steel material, which conforms to the health standards of food QS and GMP.
2. Advanced PLC control system.
3. Working speed of the machine can be adjusted by the variable frequency speed regulating device.
| Technical Specification | |
| Model | ZH-BG10 pet food packing system |
| Packing Speed | 30-50 Bags/Min |
| Packaging Accuracy | ±0.1-1.5g |
| System Output | ≥8.4 Ton/Day |
| Bag type making | Flat pouch,stand-up pouch ,zipper bag |
Application of Machine
It is new-updated compact version pouch pick fill seal packing machine for various pre-made bags such as pillow bags,
gusset bags, zipper bags etc. As a cost saving solution, it is ideal for a lot of application such as coffee beans ,pet food,
animal feed , frozen foods, cookies, cereals, nuts, flower seeds, candy etc.
Unit of this packig system
1. Infeed bucket conveyor:
For feeding the product to multihead weigher.

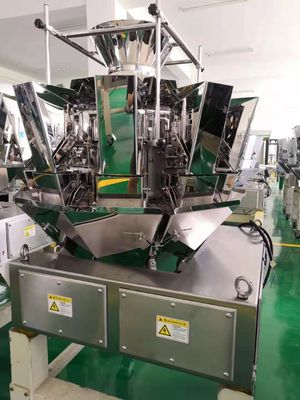

2. Multihead weigher:
For weighing the product.
3. Working platform:
For supporting the multihead weigher.
4.Rotary packing machine:
For premade bag sealing and output.
Bag type of machine:

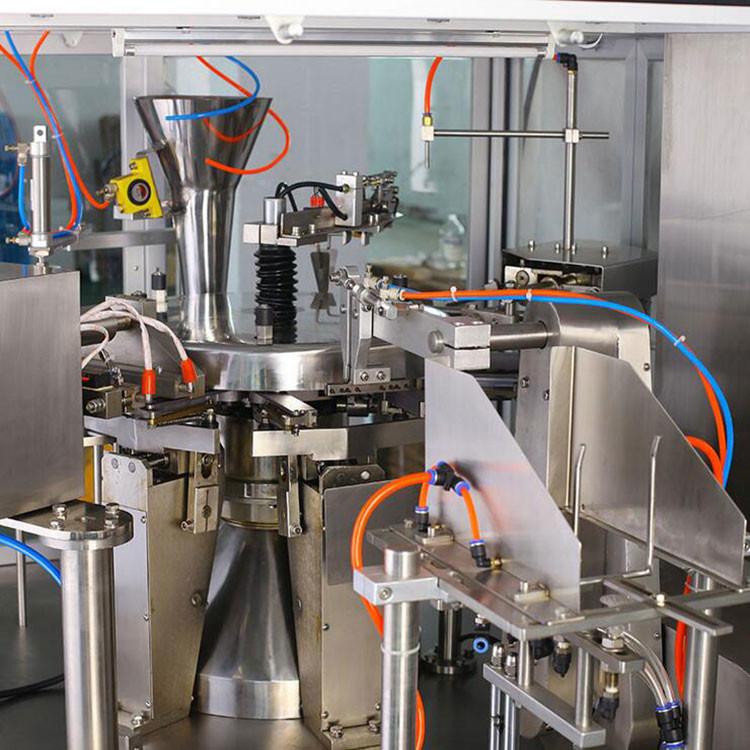

More details of machine
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
