Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Potato Chips Packing Machine | Material: | 304SS Frame |
|---|---|---|---|
| Bag Type: | Pillow Bag, Gusset Bag , Punching Bag,Linked Bag | Packing Material: | Laminated Film ,PE |
| Function: | Filling ,Weighing,Sealing | Multi-language: | Yes |
| Packing Speed: | 30-70 Bags/Min | Thickness Of Film (mm): | 0.04-0.10 |
| Highlight: | 0.04mm potato chips packing machine,1.5g potato chips packing machine,0.04mm snack food packing machine |
||
CE Certification industrial chips packing machine price/ potato chips packing machine
Technical Feature
1. Multi-head combined weigher improves metering speed and accuracy.
2. Imported PLC with Servo drive and Servo motor enable machine stable performance.
3. 7 inch touch screen with multiple language are available for easy operation.
4. Memory storage function of ten sets parameter for different product package chaging.
5. Seperate PID temperature control system suits for various kinds of package film sealing.
6. Multi-union roll film structure and sophisticated sealing framework for perfect bag shape forming.
| Machine Parameter | |
| Model | ZH-BL10 snack pouch packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Application of Machine
This automatic filling weighing and packing machine is suitable for various kinds of solid products in different
industries. Like food, chemical, medical, agricultural, mechanical, ect. Its multi-function perfomance enable widely
usage to meet different packing requirements.
System Construction
1. Z type bucket conveyor:
Raise material to multihead weigher which controls the start and stop of the hoister.

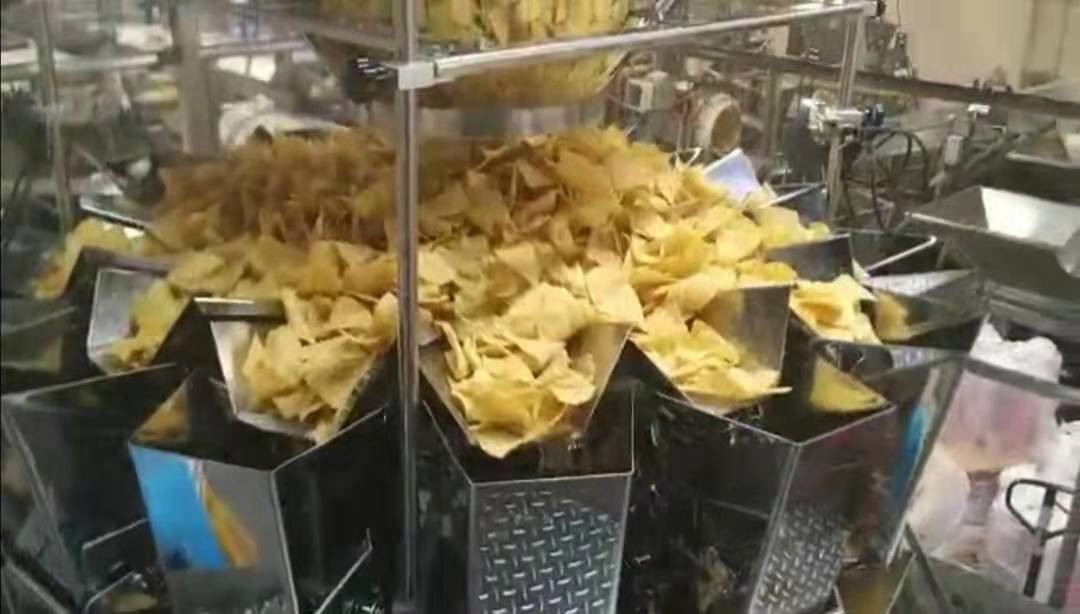

2. 10 heads multihead weigher:
Used for target weight weighing.
3. Working platform:
Support the multihead weigher.
4. Vertical packing machine:
Pack the material with high speed, and date printing sealing-off and bag cut are completed automatically.
5. Take off conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.

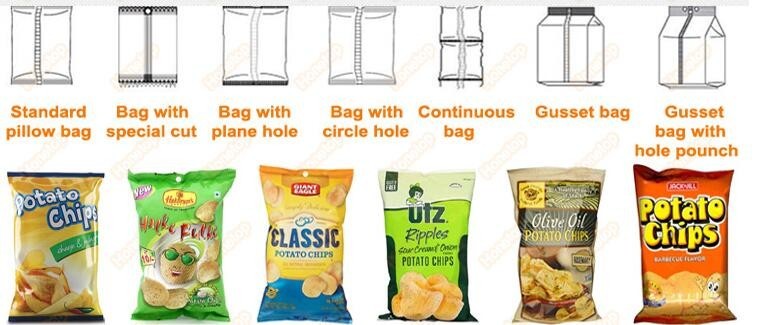

The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
