Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | Function: | Filling ,Weighing,Sealing |
|---|---|---|---|
| VFFS: | 320 | Bag Size: | W:60-150mm L:50-200mm |
| Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag | Packing Speed: | 25-70bag/min,depends On Your Product |
| Packing Material: | Laminated Film ,PE Film | Power: | 220V 50/60HZ Single Phase |
| High Light: | ZH-BL10 Automatic Food Packing Machine,60mm Automatic Food Packing Machine,5000g food packaging equipment |
||
High speed form fill and seal food packing machine automatic for small bag
Technical Feature
1. Multi-head combined weigher, improve metering speed and accuracy.
2. 7 inches touch screen, easy operation and multiple language for choice.
3. Imported PLC equipment, machine performance is stable and easy for parameters adjusting.
4. Easy to change different packing product and package sizes.
5. Separate PID temperature controller, suitable for various packing materials.
6. Multi-union roll film pulling system makes film running more smooth.
7. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
| Technical Specification | |
| Model | ZH-BL10 automatic food packing machine |
| Packing Speed | 25-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.09 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) |
VFFS320: (W) 60-150 (L)50-200
|
| Max roll film width(mm) | 320 |
Application of Machine

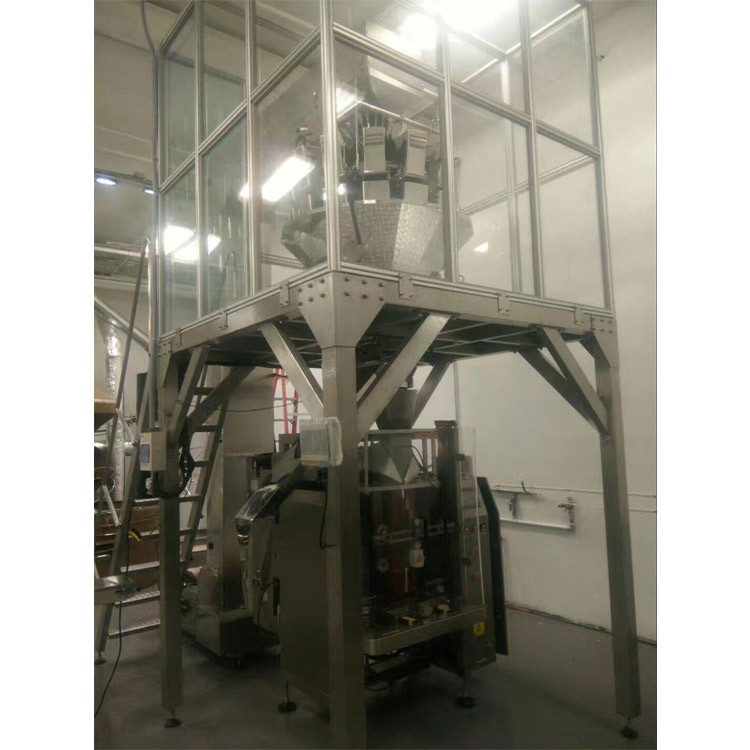

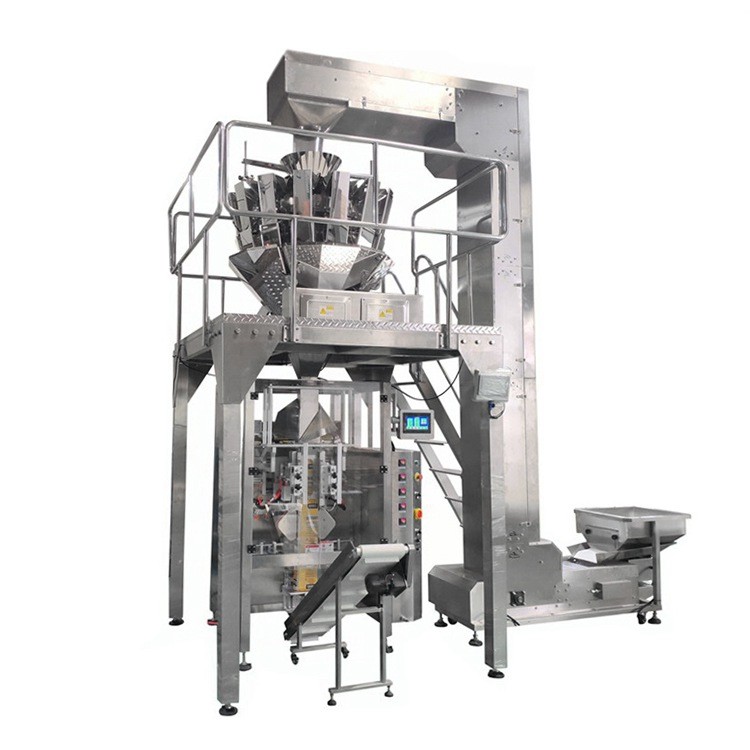

It is equipped with Z Conveyer and Multihead Weigher, it is widely applied to pack solid and bulk products,
such as candy, cereal, nuts & snacks, cheese, pasta, beans & rice, pet food & treat, coffee and other
non-food products.
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.

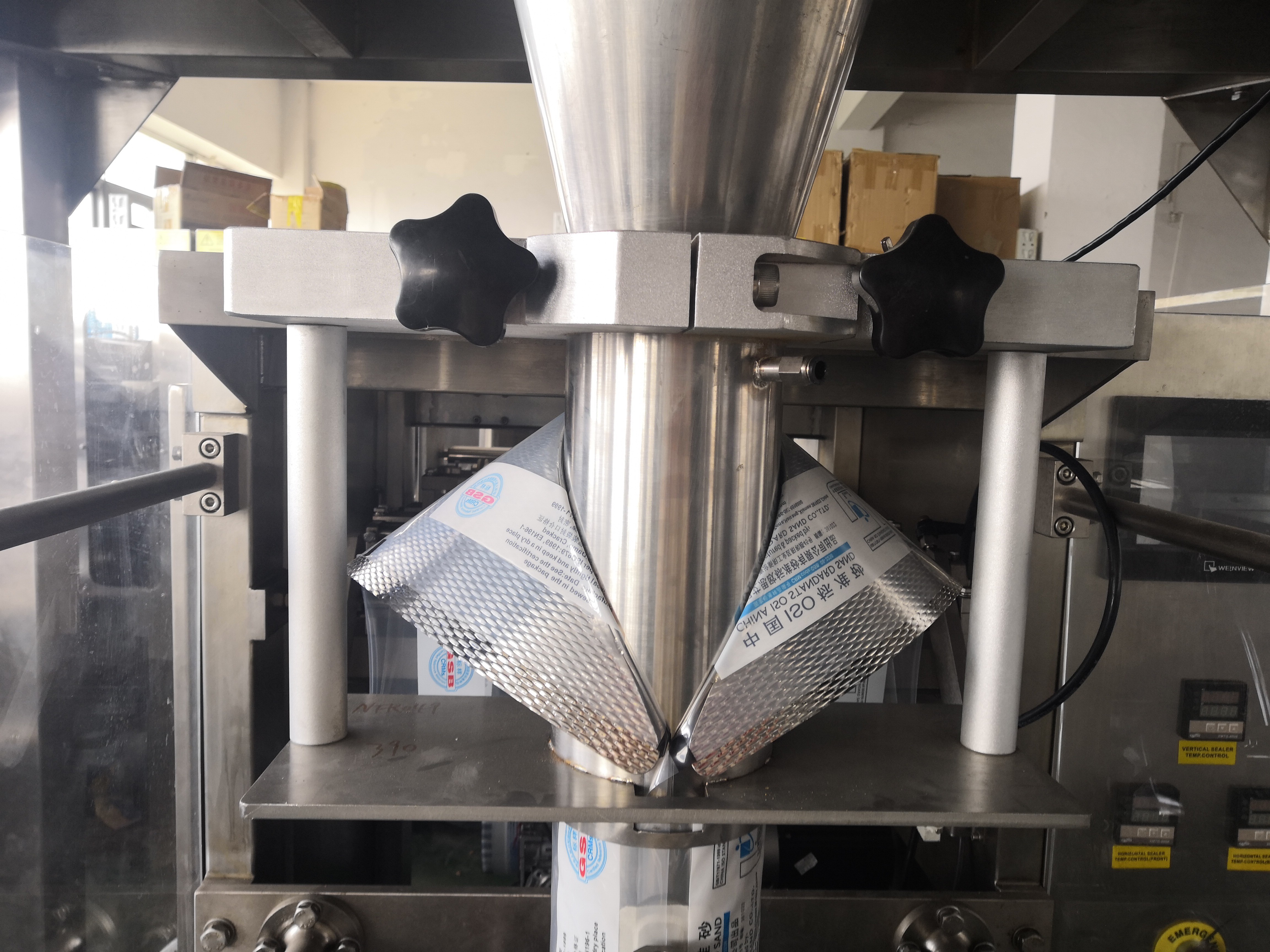

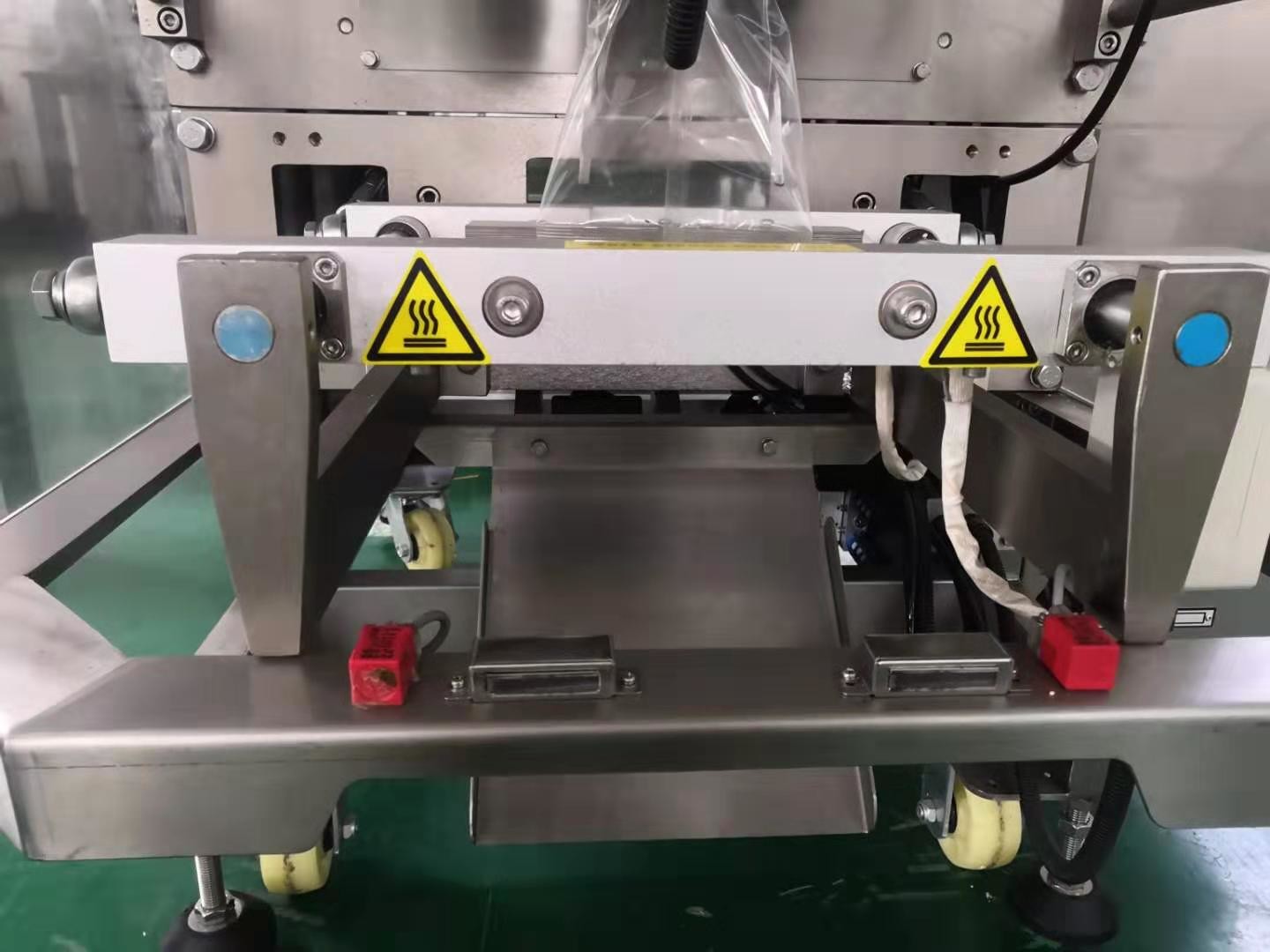

Machine details:

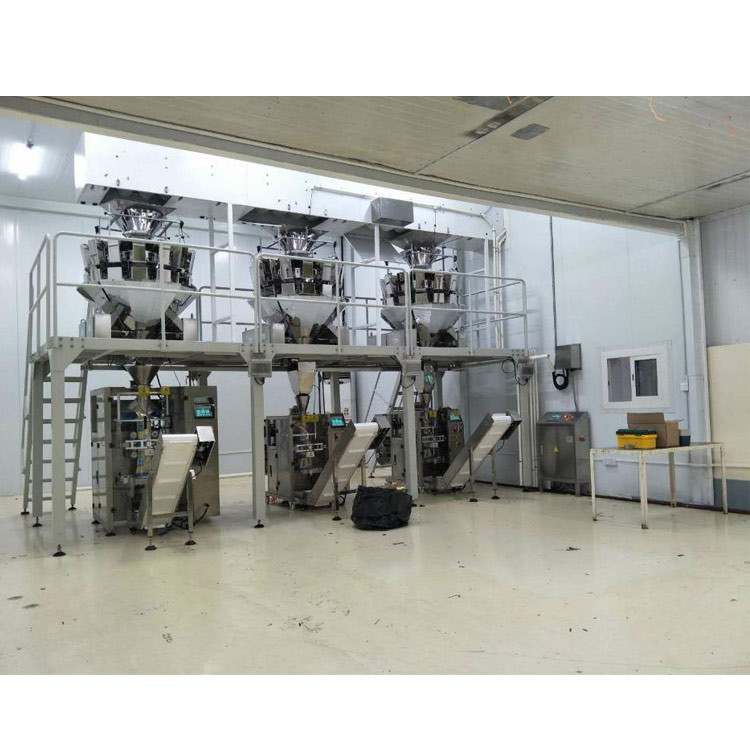

Our cases
The machine brand
