Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | VFFS: | 520 |
|---|---|---|---|
| Bag Size: | W:90-250mm L:80-350mm | Max Film Width: | 520mm |
| Film Thickness: | 0.04-0.09mm | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
| Packing Speed: | 25-60bag/min,depends On Your Product | Packing Material: | Laminated Film ,PE Film |
| Power: | 220V 50/60HZ Single Phase | Control: | PLC |
| High Light: | 2000g Automatic Food Packing Machine,50g Automatic Food Packing Machine,2000g dry fruit packaging machine |
||
High precision 50-2000g 1kg 2kg 3kg 4kg 5kg dried fruits and vegetables packing
machine
Technical Feature
1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bagmaking, measuring,
filling, printing, cutting, be finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Filmpulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance.
Belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
6. Close down type mechanism, defending powder into inside of machine.
7. Multi-head weighter measuring, packing weight more precision, product cost more low.
| Technical Specification | |
| Model | ZH-BL10 automatic food packing machine |
| Packing Speed | 25-60 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.09 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) |
VFFS520: (W) 90-250 (L)80-350
|
| Max roll film width(mm) | 520 |
| Language | Multi-language |
Application of Machine
All kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds,
chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn,
Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
Machine details:

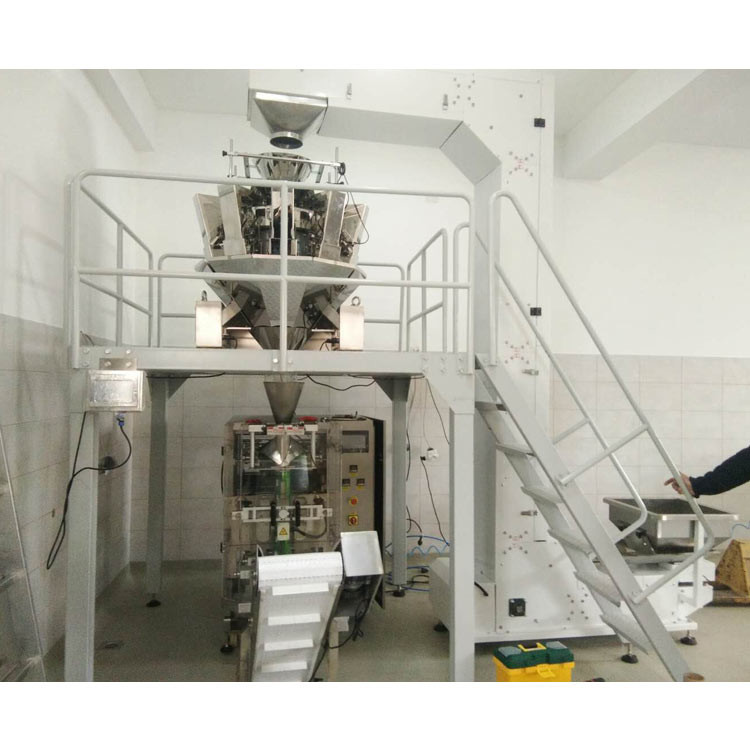

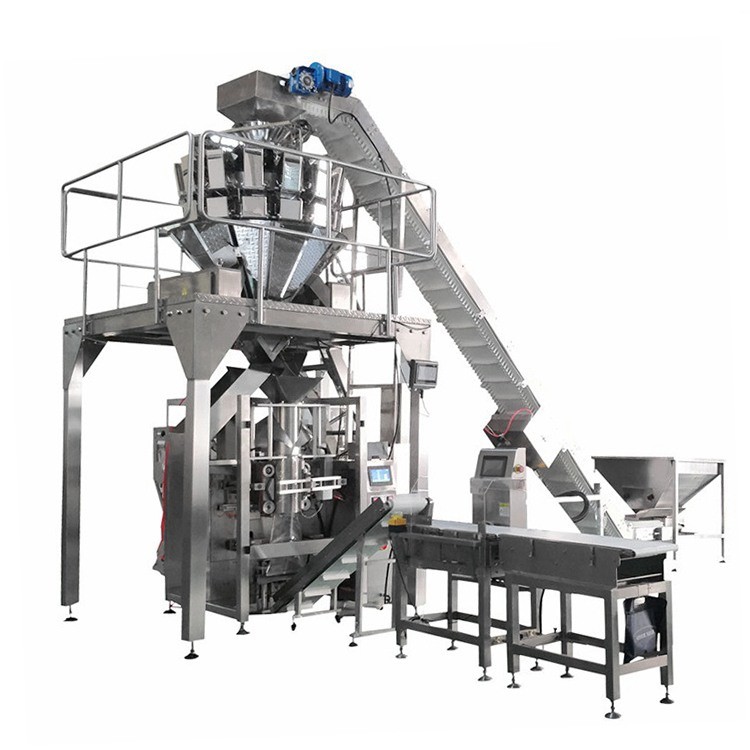

System Composition

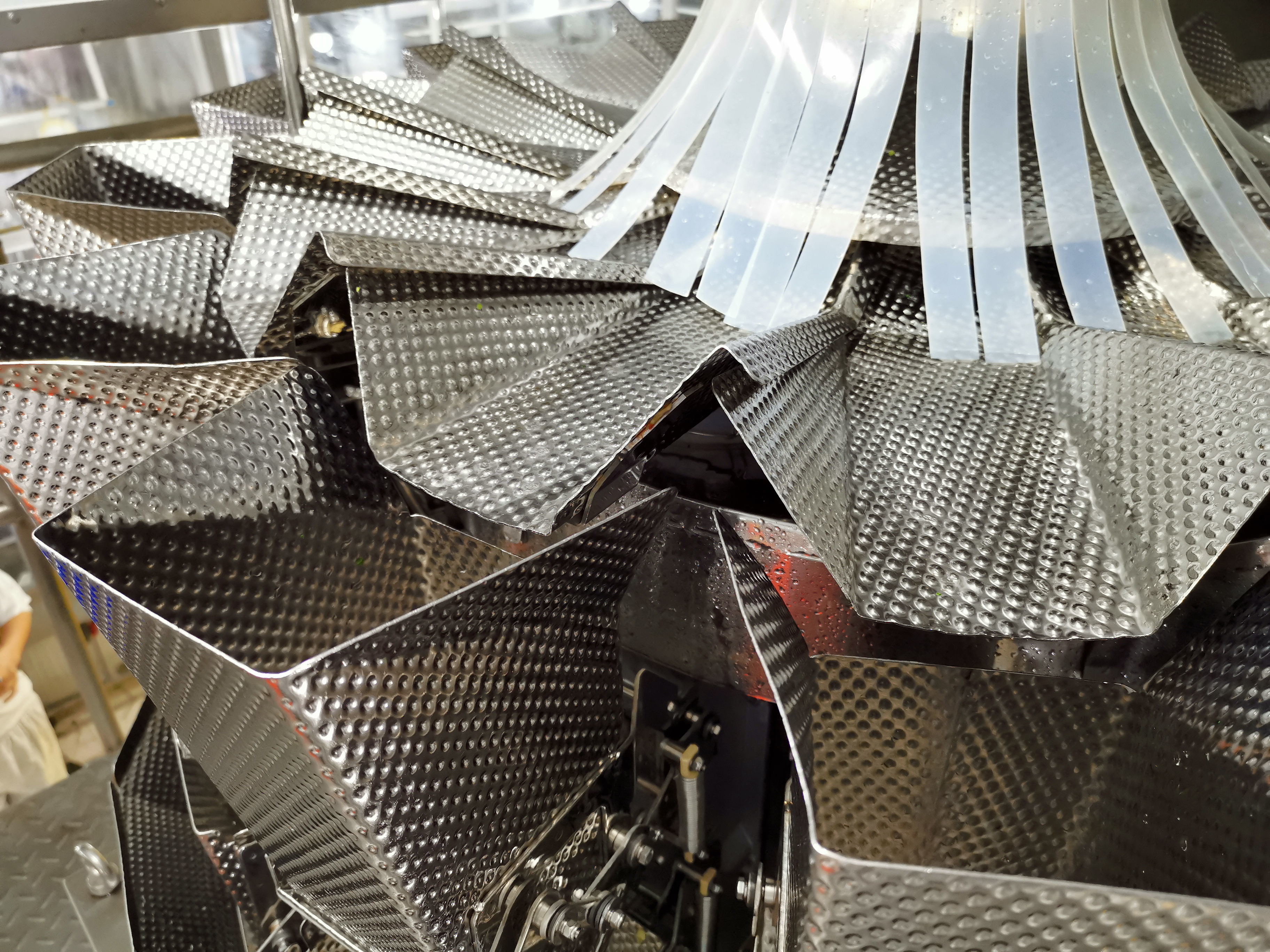

1. Multi weigher/Weighing machine/Heads combination weigher/multihead weighing machine
2. Z conveyor/Z shaped material automatic conveyor/Z type conveyor/Z bucket elevator/Z type lifting conveyor
3. Plaform/support platform/supporing platform
4. Output conveyor/finished product conveyor/product out put conveyor
5. VFFS/automatic vertical packing machine/vertical packaging machine

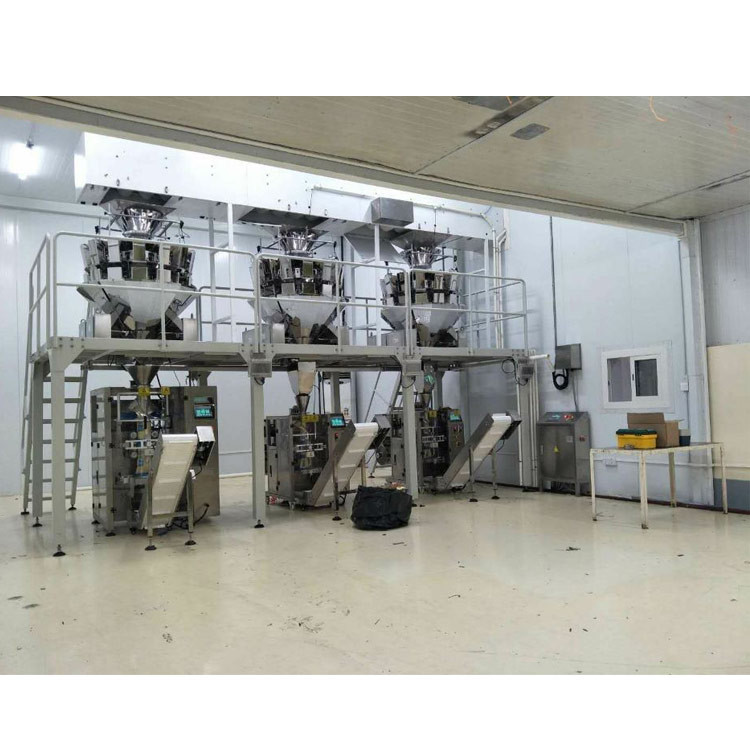

Our cases
The machine brand
