Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Speed: | 25-50bag/min,depends On Your Product | Packing Material: | Laminated Film ,PE Film |
| Power: | 220V 50/60HZ Single Phase | Language: | Standard Is Chinese +English |
| Warranty: | 12 Months | Packing: | Wooden Case |
| High Light: | 60Bags automatic vegetable packing machine,5000g automatic vegetable packing machine,60Bags pillow pack packaging machine |
||
Auto vegetables pillow bag packing machine for 20-60bags one minute
Technical Feature
1. This machine can automatically complete the following work: material lifting--multi-head weigher measuring
--coding--bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products
--sorting finished products.
2. PLC servo and pneumatic control system, large touch screen forms the core of drive control; high reliability
and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, whenreplacing product,
it can be used at any time without resetting.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to be promptly ruled out.
5. Can make hole punching device according to customer's request.
6. This machine has stainless steel type and carbon steel type for choice.
| Technical Specification | |
| Model | ZH-BL10 automatic food packing machine |
| Packing Speed | 25-50 Bags/Min,according to your bag weight |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.09 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Max roll film width(mm) | 1050 |
| Language | Chinese +English |
Application of Machine
It is suitable for all kinds of stuffs packing, such as chips, candies, sugar, salt, rice, beans, nuts, coffee beans,
jelly, macaroni, frozen food, pet food, screw and small parts.
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.

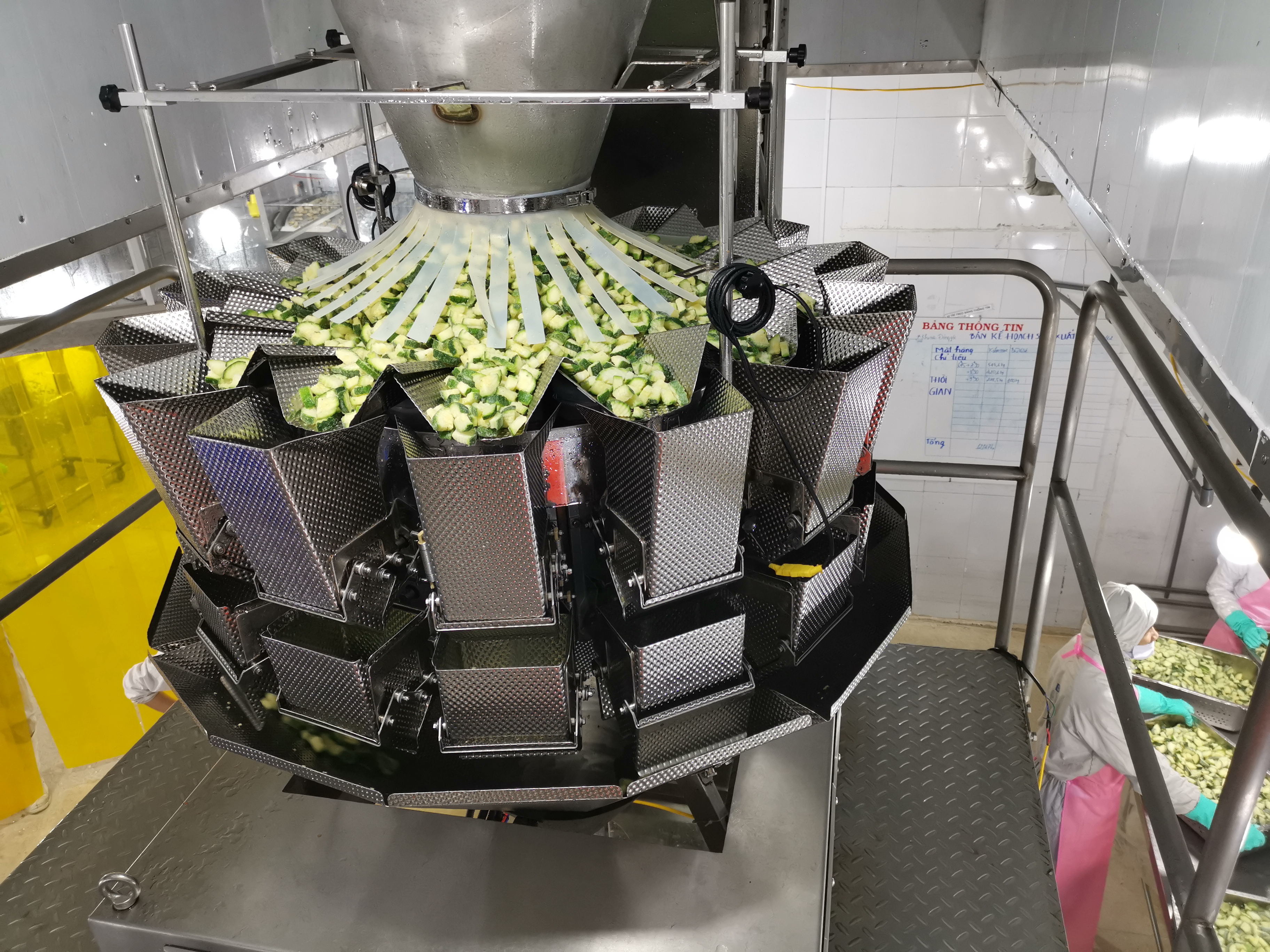

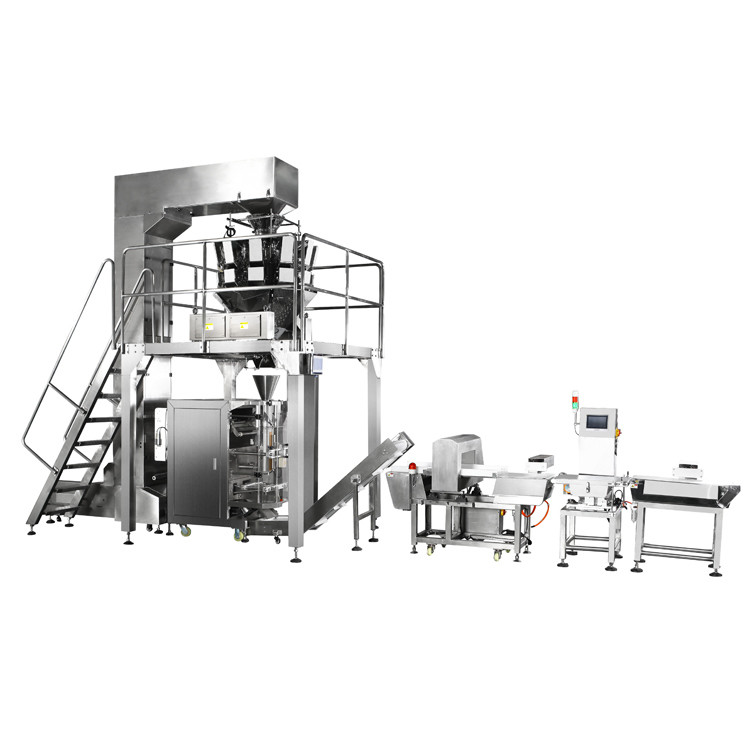

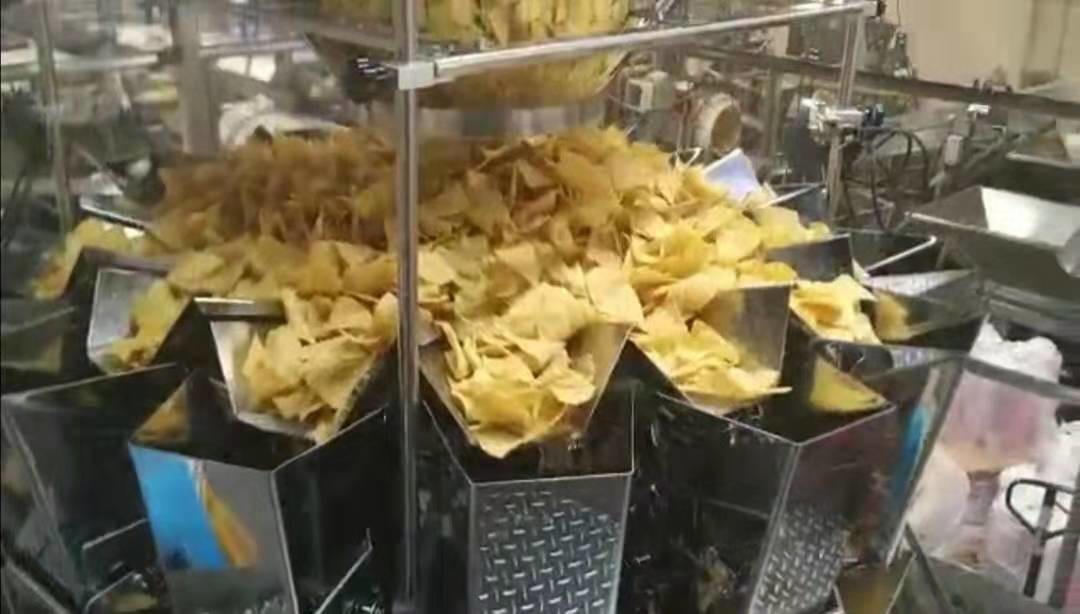

Machine details:
Optional Functions:
1. Date printer
2. Quad seal bag assembly
3. Bag-in-bag configuration
4. Flat bottom bag assembly
5. Hole punch (Euro slot or round)
6. Load shelf
7. Product settler
8. Gas flush
9. Static elimination
10.Tear notch
11 In-feed and take-away conveyors

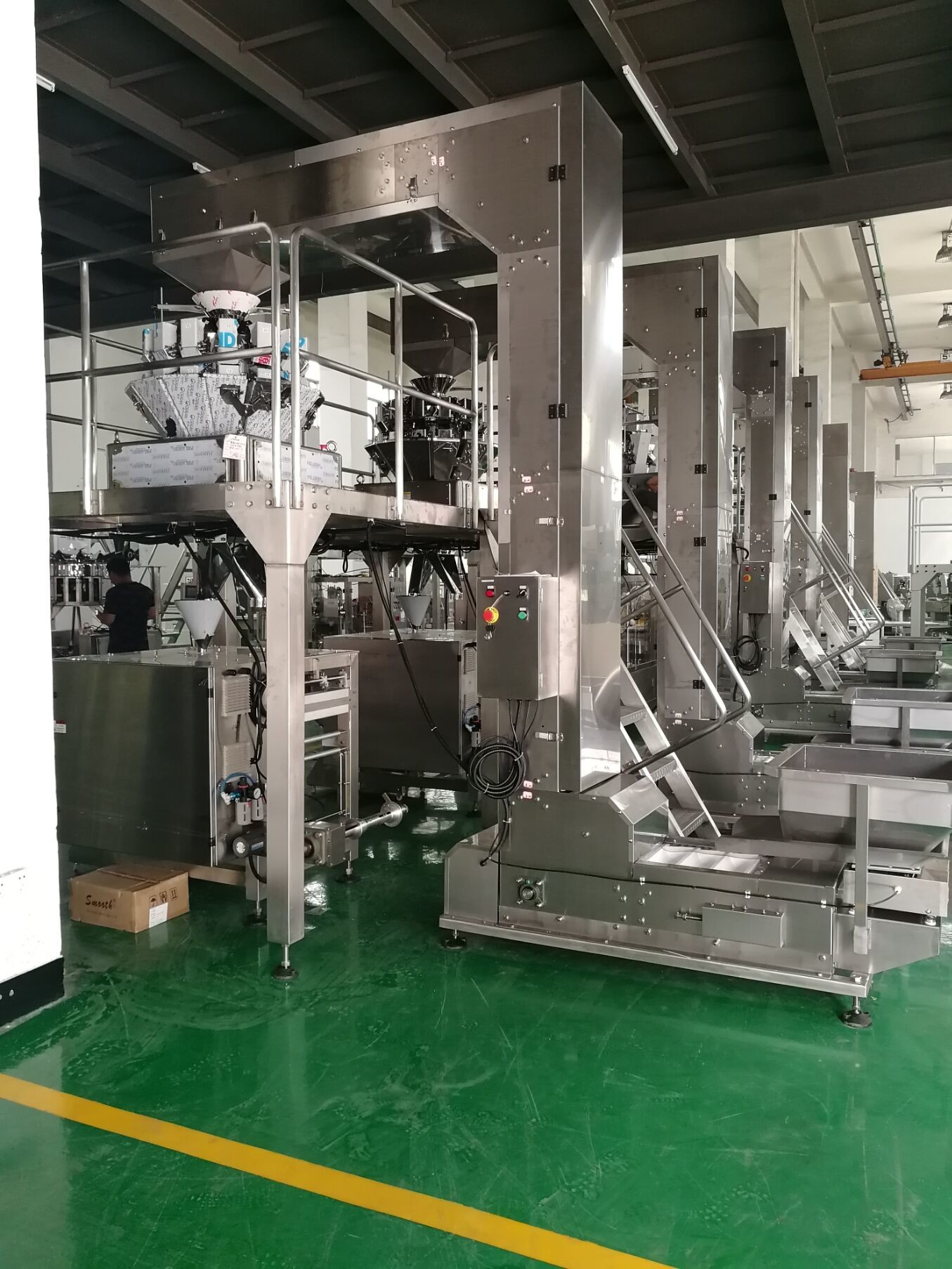

Our cases
The machine main parts brand
