Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Snack Food Packaging Machine | Function: | Feeding ,Filling ,Weighing,Sealing |
|---|---|---|---|
| It Can Make: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag | Packing Material: | Laminated Film ,PE Film |
| Material: | 304SS Frame | Power: | 220V 50/60 Hz 2.2KW |
| Sealing Form: | Back Seal As Standard | Control: | Simemes PLC |
| Brand Name: | ZON PACK | ||
| High Light: | 5g Snack Food Packaging Machine,ZON Snack Food Packaging Machine,5g snacks pouch packing machine |
||
Engineer oversea support auto snack food packaging machine for gusset bag packing
Technical Feature
1. Material conveying, weighing, filling, bag-making, date-printing, finished bag outputting are all completed
automatically.
2. 7 inches touch screen, easy operation and multiple language for choice.
3. Imported PLC equipment, machine performance is stable and easy for parameters adjusting.
4. Adopt double servo film-dragging structure,enable stable bag forming for perfect bag shape.
| Technical Specification | |
| Model | ZH-BL10 snack food packaging machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET;PE film |
| Range of measuring (g) | 5-5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
| Multihead weigher model | 10 heads 14 heads 20 heads weigher |

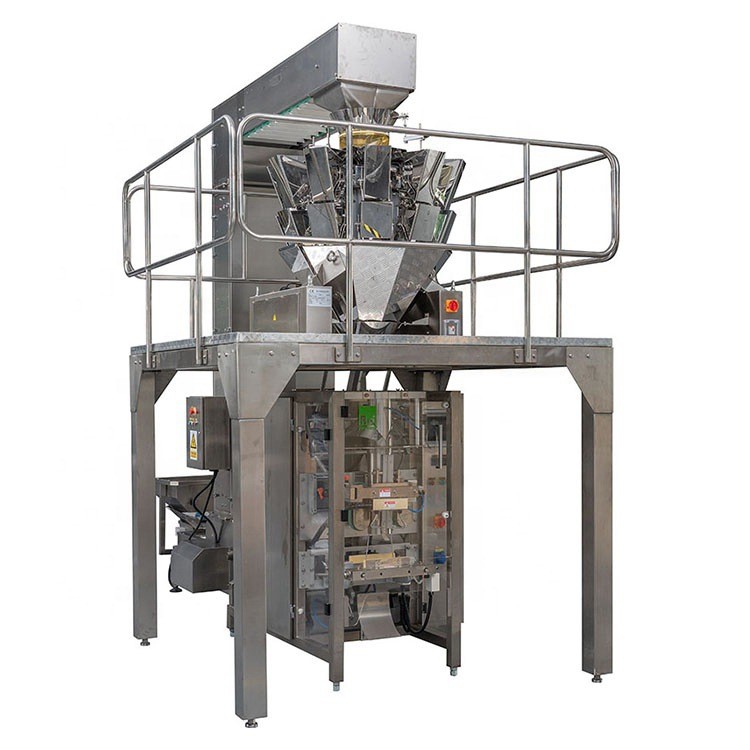

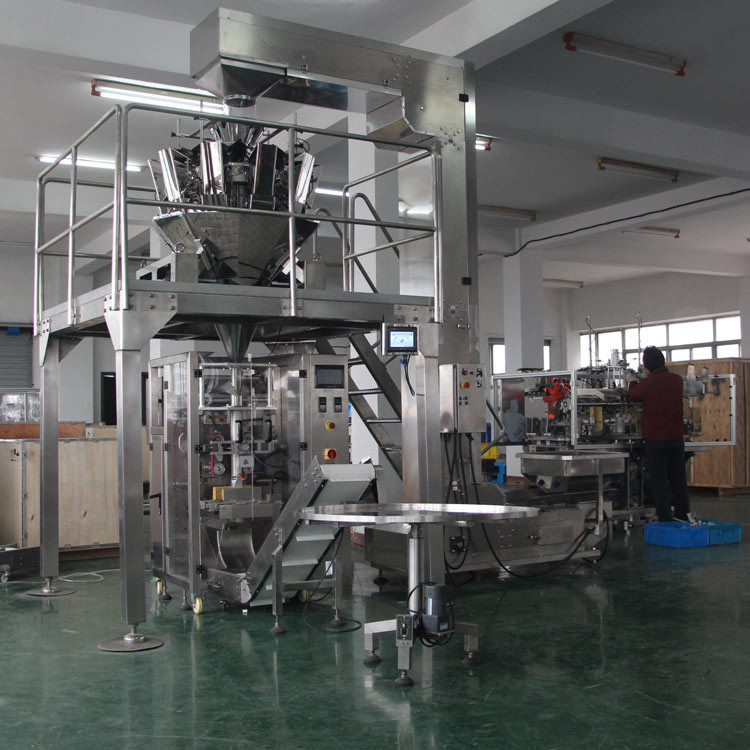

Whole machine line:
1. Infeed bucket conveyor:
Feed product to multihead weigher

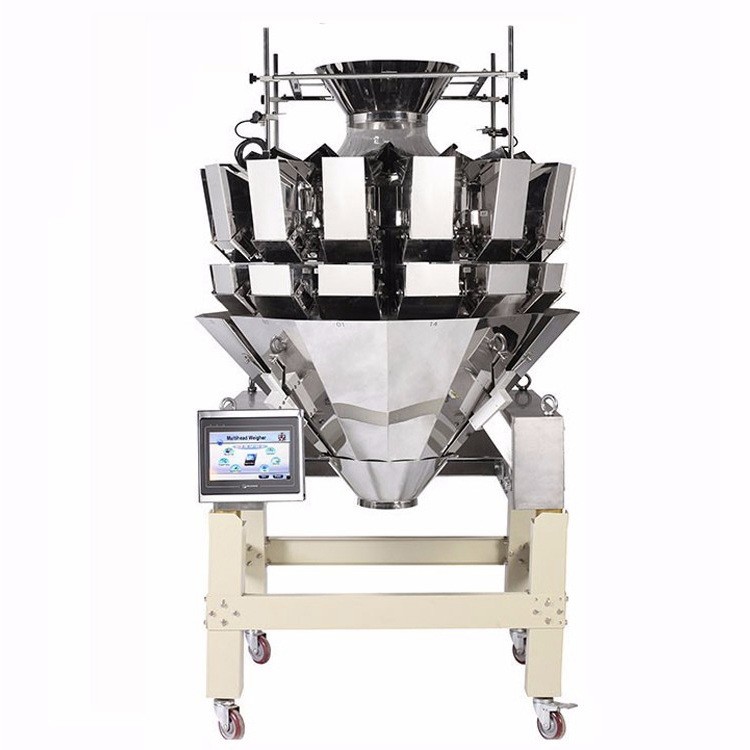

2. Multihead weigher:
For product weighing.There are different heads of multihead weigher.
3. Working platform:
Support multihead weigher.

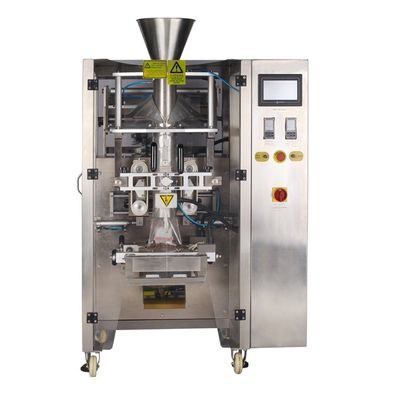

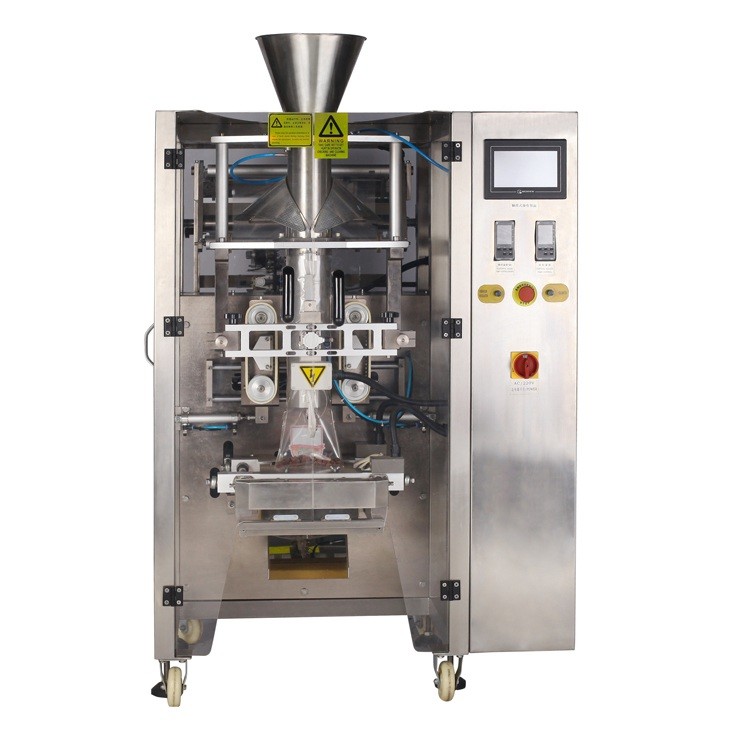

4. Vertical packing machine:
Pack the product with high speed, and date printed, sealing-off and bag cutting is completed automatically.
5. Finishe bag conveyor:
Convey the finished bag to rotary table.
6. Rotary table:
For finished bag collecting.
Application of Machine
Food:Candy,Beans,Chips,Popcorn,Pasta,Corn,Rice cake,Jelly,Cookies,Cheese,Peanuts,Coffee Creamer,
Almond,etc.
Daily necessities:Mothballs,Disposable Mask,Buttons,etc.
Hard&Ware:O ring,Screw,Dowel,etc.
Medical:Pill,Medicine,etc.
Machine Details

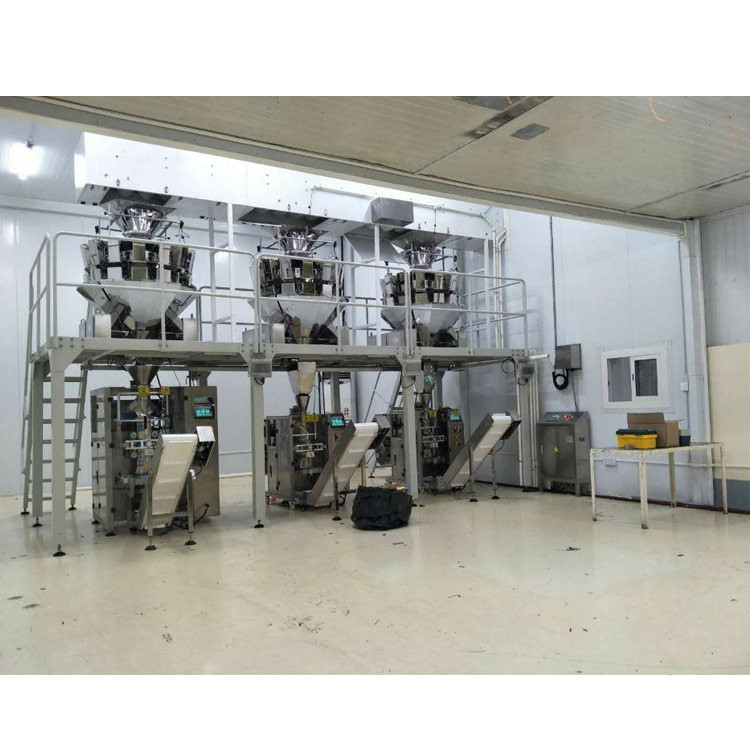

Our projects in the world
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
