Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Snack Food Packaging Machine | Function: | Feeding ,Filling ,Weighing,Sealing |
|---|---|---|---|
| Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag | Packing Material: | Laminated Film ,PE Film |
| Packing Machine: | 420vffs | Packing Speed: | 25-70bag/min,depends On Your Product |
| Bag Width: | 60-200mm | Bag Length: | 60-300mm |
| High Light: | 200mm Snack Food Packaging Machine,300mm Snack Food Packaging Machine,VFFS snacks pouch packing machine |
||

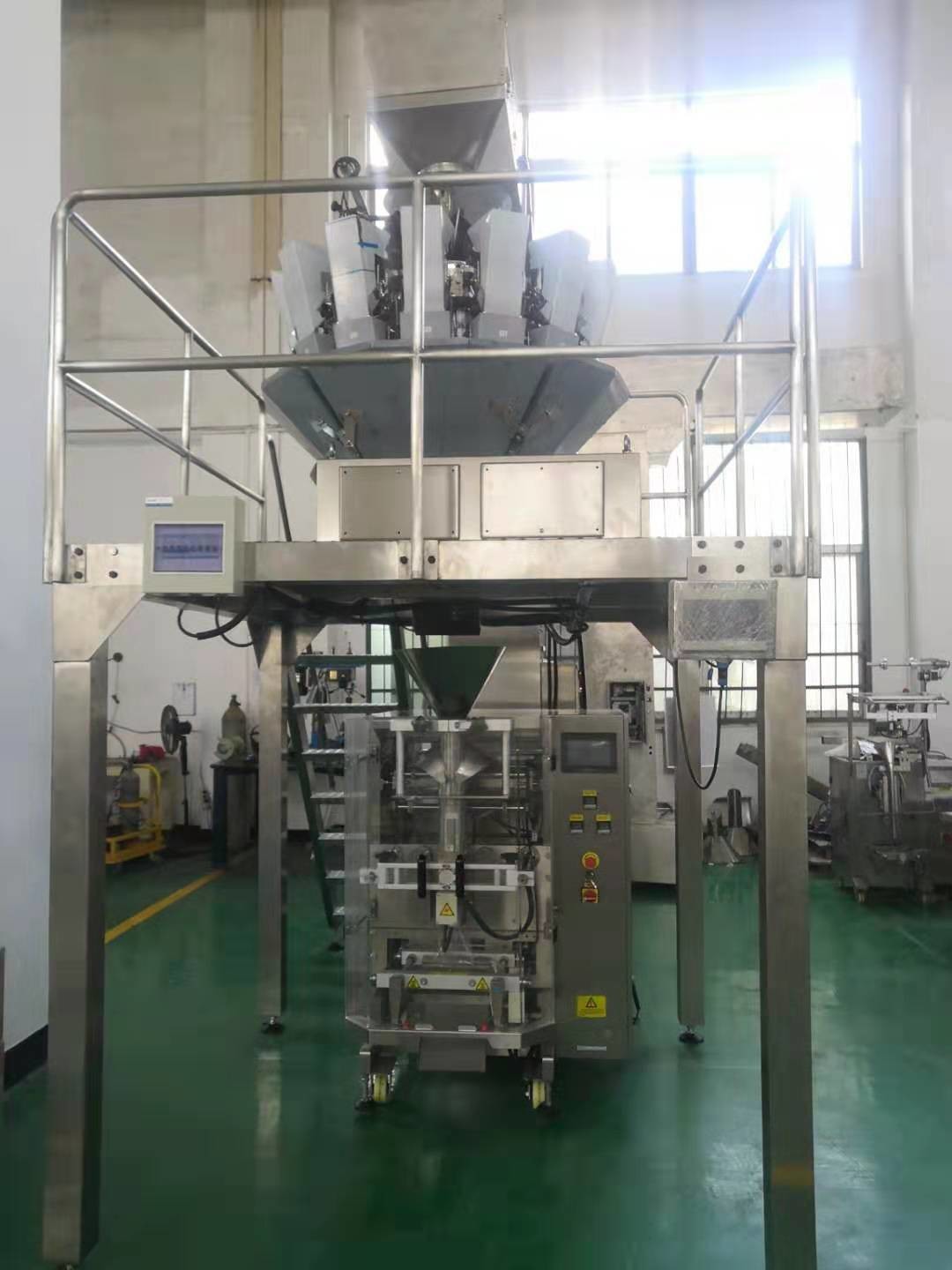

220V 50 Hz/60Hz 420 VFFS industrial snacks food packing machine price
Technical Feature
1. Material conveying, weighing, filling, bag-making, date-printing, finished bag outputting are all completed
automatically.
2. High weighing precision and efficiency.
3. Packing efficiency will be high with vertical packing machine
4. Multi-head combined weigher, improve metering speed and accuracy.
5. 7 inches touch screen, easy operation and multiple language for choice.
6. Imported PLC equipment, machine performance is stable and easy for parameters adjusting.
| Technical Specification | |
| Model | ZH-BL10 snack food packaging machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET;PE film |
| Range of measuring (g) | 5-5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 420: (W) 60-200 (L)60-300 |
| Option device | Nitrogen fiiling device Coding printer gas-filled device punch device etc |

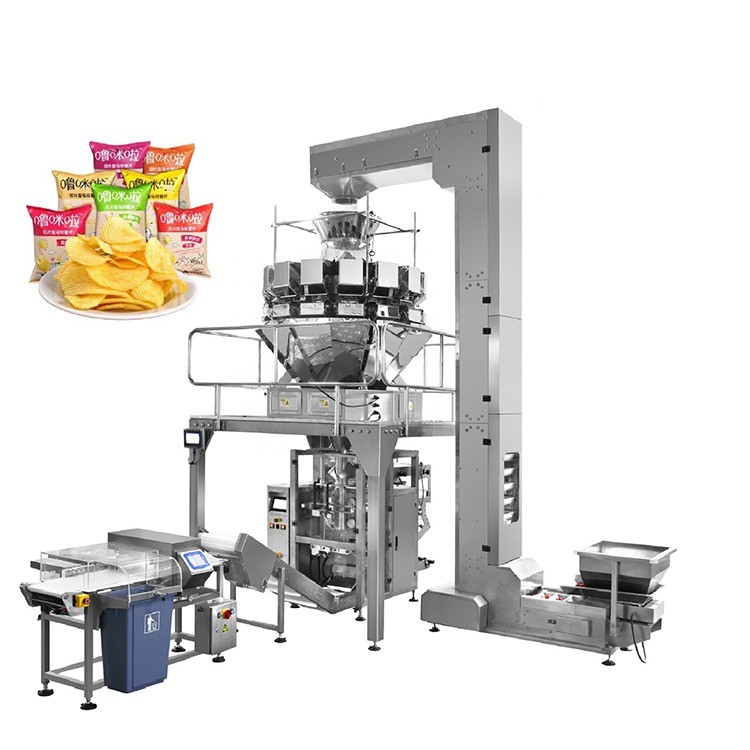

System Composition
1. Infeed bucket conveyor:
Feed product to multihead weigher

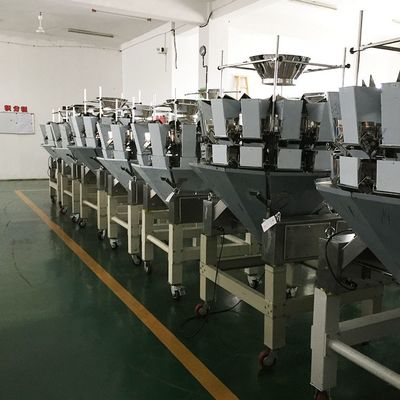

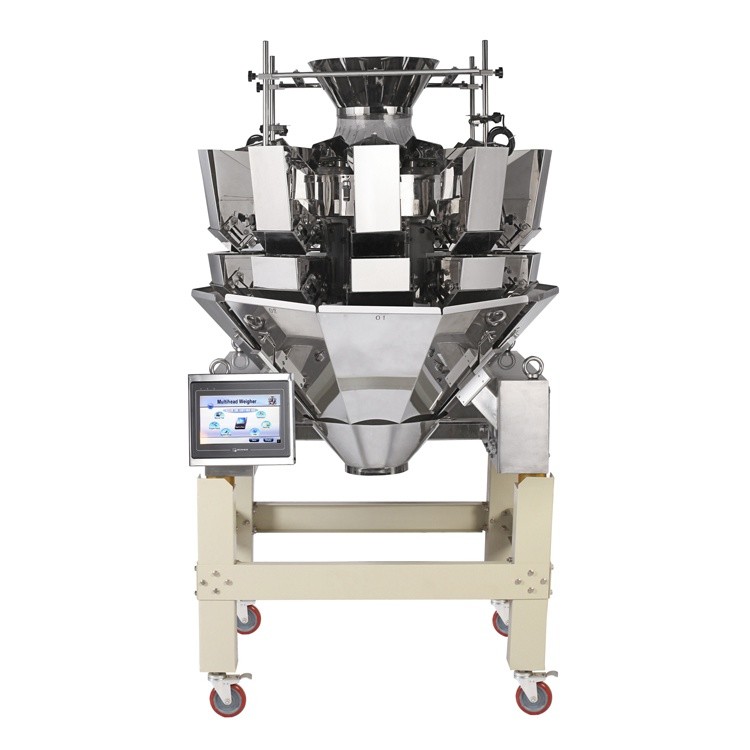

2. Multihead weigher:
For product weighing.There are different heads of multihead weigher.
3. Working platform:
Support multihead weigher.

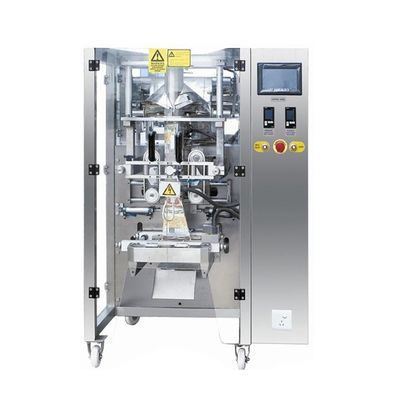

4. Vertical packing machine:
Pack the product with high speed, and date printed, sealing-off and bag cutting is completed automatically.
5. Finishe bag conveyor:
Convey the finished bag to rotary table.
6. Rotary table:
For finished bag collecting.
Application of Machine
It is suitable for a wide rang of products both granule and powder, such as sugar, rice, candy, milk powder,
frozen food, snack, chips, etc.
Machine Details
The Bag type:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
