Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,Zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-GD8 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+23000-40000+Sets |
| Packaging Details: | Wooden case |
| Delivery Time: | 45working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Bag Type: | Pre-made Bag , Zipper Bag , Stand Up Pouch Bag | Material: | 304SS |
|---|---|---|---|
| Warranty: | 1 Years | Touch Screen: | 7inch , Weinview |
| Speed: | 25-60bags / Min | Accuracy: | ±0.5gram |
| Working Position: | Eight Position | Pouch Size: | W : 70-150mm L : 75-300mm |
| High Light: | SS304 Premade Bag Packing Machine,70mm Premade Bag Packing Machine,0.5g premade pouch machine |
||

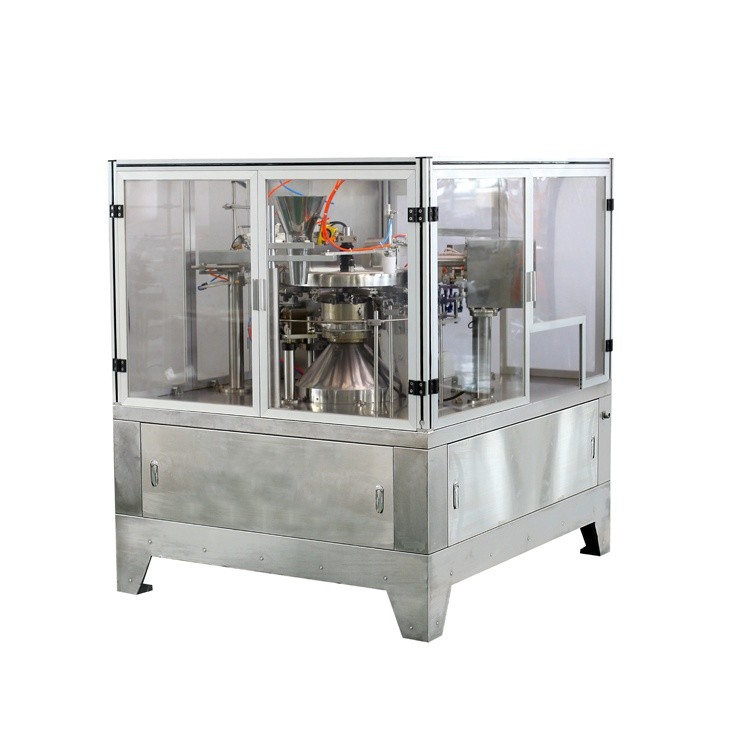

Easy to operate automatic premade bag packing machine for granule candy dried beans packaging machine
1 . Main function
1. Automatically check bag open status, it will not fill and seal when bag is not opened fully. It avoids the wasting of bag and raw material and save cost.
2. Machine working speed can be adjusted continuously with frequency converter
3. PLC from SIEMENS is adopted, the control system is easy to operated with friendly HMI interface.
4. Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.
5. Machine can work with dual-fill, filling with two types of material, such as solid and liquid, liquid and liquid.
6. Machine can work with bag that width range from 100-200mm, by adjusting the width of clips.
7. Adopting advanced bearing, where no need to add oil and less pollution for product.
8. Rotary packing machine can work with different filler to pack solid, powder and liquid.
9. With premade bag, the pattern and sealing on the bag is perfect. The finished product looks advanced.
10. Machine can work with complex film, PE, PP material premade bag and paper bag.
2 . Technical Specification
| Model | ZH-G8-200 |
| Packing Speed | 25-50 bag/min |
| Bag Size (mm) | W: 70-150mm L: 75-300mm |
| Bag Type |
Flat pouch, Stand up pouch, Stand up pouch with zipper |
| Air Consumption | 0.4 m3/min 0.8Ma/ |
| Packing Material | POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET |
| Power Parameter | AC380V/50Hz/3KW |
| Machine Dimension(mm) | 1770(L) ×1700(W)×1800(H) |
| Gross Weight (Kg) | 1200 |
3 . Application
ZH-G8 Rotary packing machine is developed for premade bag, stand-up bag with or without zipper. It is suitable for packing product of powder, irregular shape, thick liquid and liquid, such as gourmet powder, chicken powder, seasoning powder, candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware and hand sanitizer.

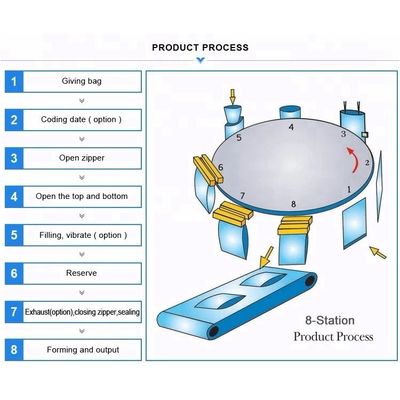

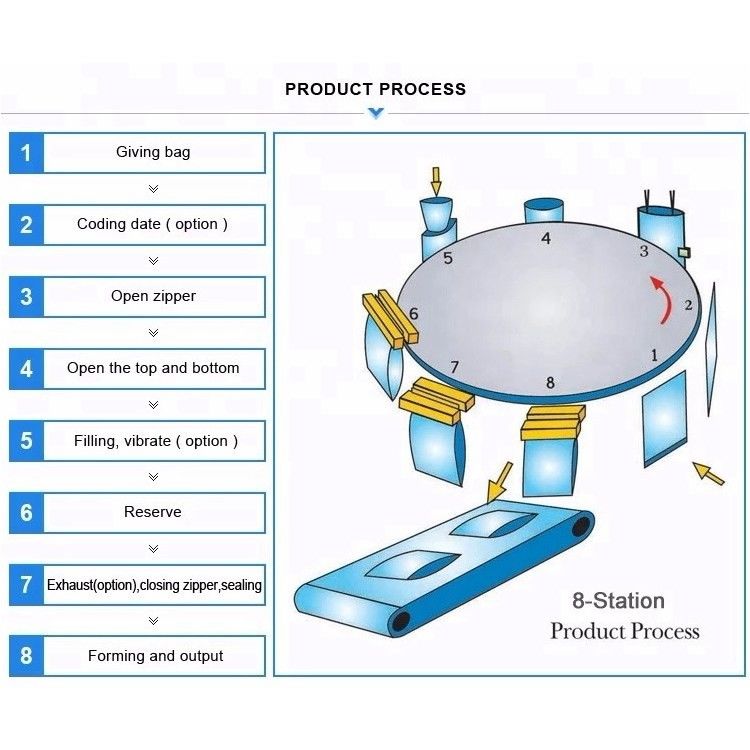

4 . Working process of Pre-made bag Packing Machine
5 . Our Factory
