Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Puffed Food Packing Machine | It Can Make: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Material: | 304SS Frame |
| Weighing Range: | 5-2000g | Accuracy: | +/-0.1g-1.5g |
| Option Device: | Continuous Bags Device,Hole Punching Device,Gas Filling ,Gusseted Device | Packing Speed: | 30-70 Bags/Min |
| Power: | 220V 50/60 Hz 2.2KW | Language: | Multi-language |
| High Light: | 2000g Puffed Food Packing Machine,CE Puffed Food Packing Machine,2000g crisp packaging machine |
||
High speed widely using VFFS crisp packaging machine with weighing machine
Technical Feature
1. PLC controller with touch screen interface.
2. Servo-driven film transport.
3. Pneumatic-driven and sealing jaws.
4. Hot printer and film feeding system synchronous.
5. Quickly changing one-piece bag former.
6. Eye mark sensor for film tracking.
7. Stainless steel frame.
| Technical Specification | |
| Model | ZH-BL10 puffed food packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET;PE film |
| Range of measuring (g) | 5-5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
| Multihead weigher model | 10 heads 14 heads 20 heads weigher |

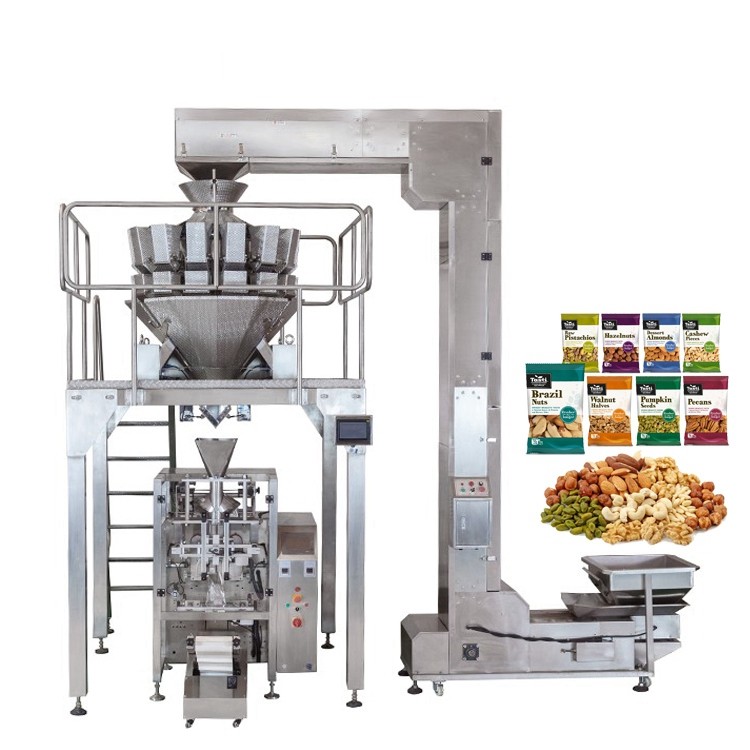

Whole packing line:
1. Infeed bucket conveyor:
Feeds the products to the elevator and transport them to multi-head weigher

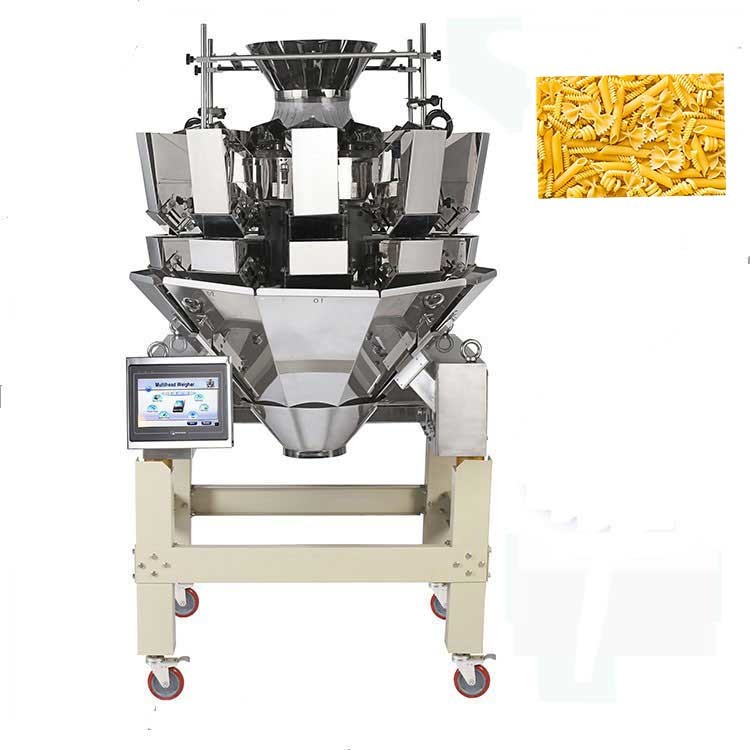

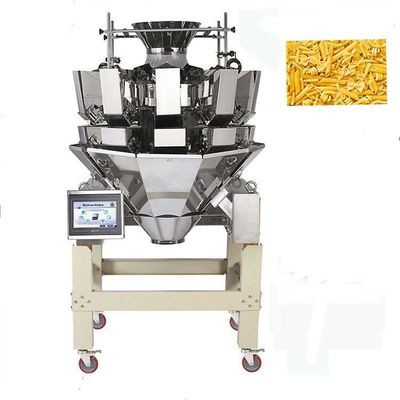

2. Multihead weigher:
Weighing and filling materials to packing machine
3. Working platform:
Support multihead weigher.
4. Vertical packing machine:
Pack the product with high speed, and date printed, sealing-off and bag cutting is completed automatically.
5. Finishe bag conveyor:
Convey the finished bag to rotary table.
6. Rotary table:
For finished bag collecting.
Application of Machine
It’s suitable to use in packing the high accuracy and easy fragile material ,such as:puffy food.crispy rice,jelly,
candy,pistachio, apple slices,dumpling,chocolate , pet food,small hardware,Medicine,etc.
Machine Details

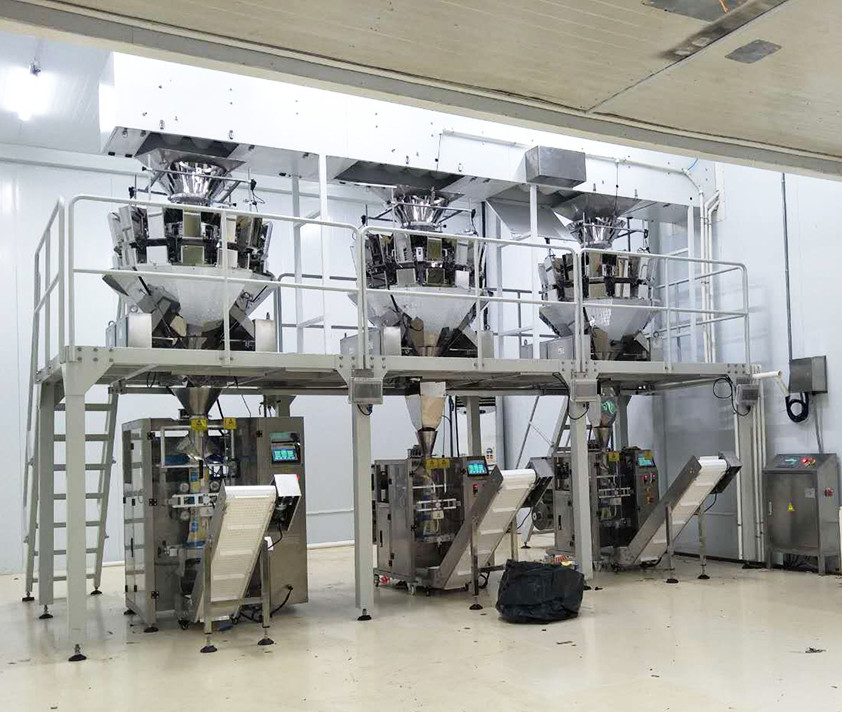

Our projects in the world
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
