Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BG10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 35000-40000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35 Working days |
| Payment Terms: | L/C, D/A, Western Union, D/P, T/T |
| Supply Ability: | 199 Sets per month |
| Name: | Multihead Weigher Rotary Packing Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Machine Material: | Food Grade SS304 | Packaging Type: | Flat Pouch,stand-up Pouch ,zipper Bag |
| Suitable For: | Premade Pouch | Function: | Filling ,weighing ,sealing |
| Packing Speed: | 30-50bags/min | Packaging Accuracy: | ±0.1-1.5g |
| Working Position: | Six Or Eight | Power: | 380V 50/60HZ |
| High Light: | 5kg Multihead Weigher Packing Machine,150mm Multihead Weigher Packing Machine,5000g frozen food packing machine |
||

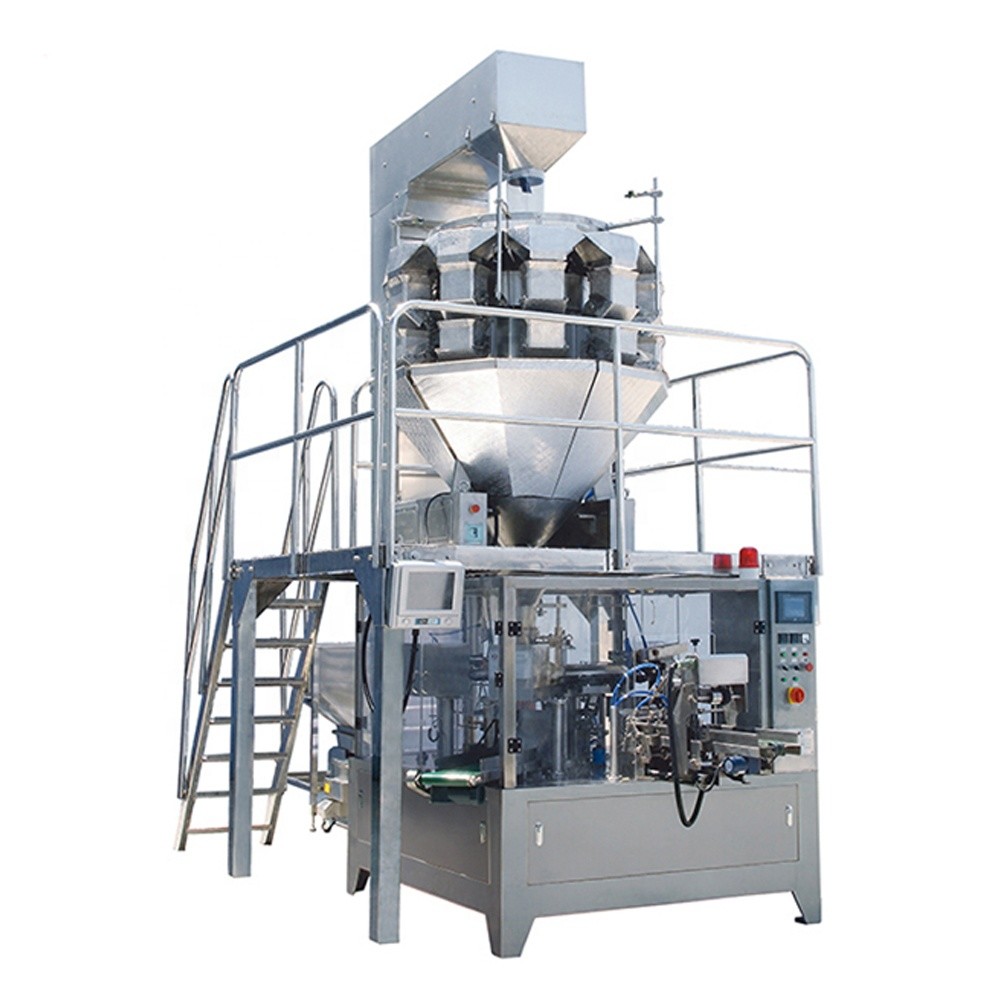

Food industry stainless steel frozen food multihead weigher rotary packing machine
Technical Feature
1. Suitable pouches: All kinds of size premade pouches.
2. Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
3. Easy to adjust: All working process in one station, more easily adjusting.
4. Frequency control: Speed can be adjusted by frequency conversion within the range.
5. High Automation: Unmanned in weighing and packing process, machine alarm automatically when failure.
Safety and Hygiene:
1. Machine alarm and stop when the inadequate air pressure.
2. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
3. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
4. Imported engineering plastic bearings, no need to oil, no contamination.
5. Oil-free vacuum pump, avoid the pollution of the production environmental.
| Technical Specification | |
| Model | ZH-BG10 |
| Packing Speed | 30-50 Bags/Min |
| Packaging Accuracy | ±0.1-1.5g |
| System Output | ≥8.4 Ton/Day |
| Bag Size |
Width:100-300 Length:150-400mm
|
| Bag types | stand up bag,zipper bag,flat bag |
| Target weight | 5-5000g |
Application of Machine
1. Solid: Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles,
puffed food, daily necessities, etc.
2. Granule: MSG, chicken, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers,
chemical raw materials.
3. Other materials can be bagged.

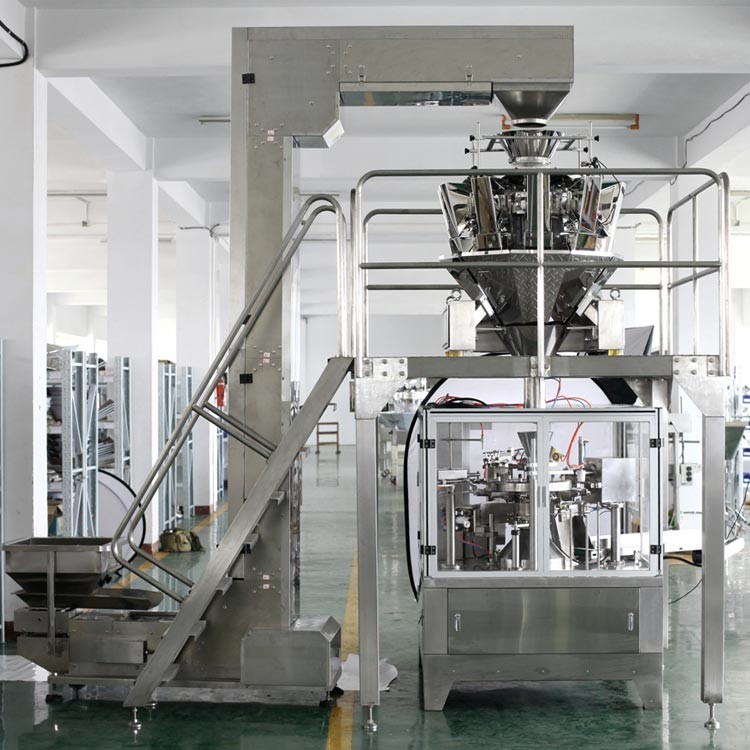

Unit system
1. Infeed bucket conveyor:
For feeding the product to multihead weigher.

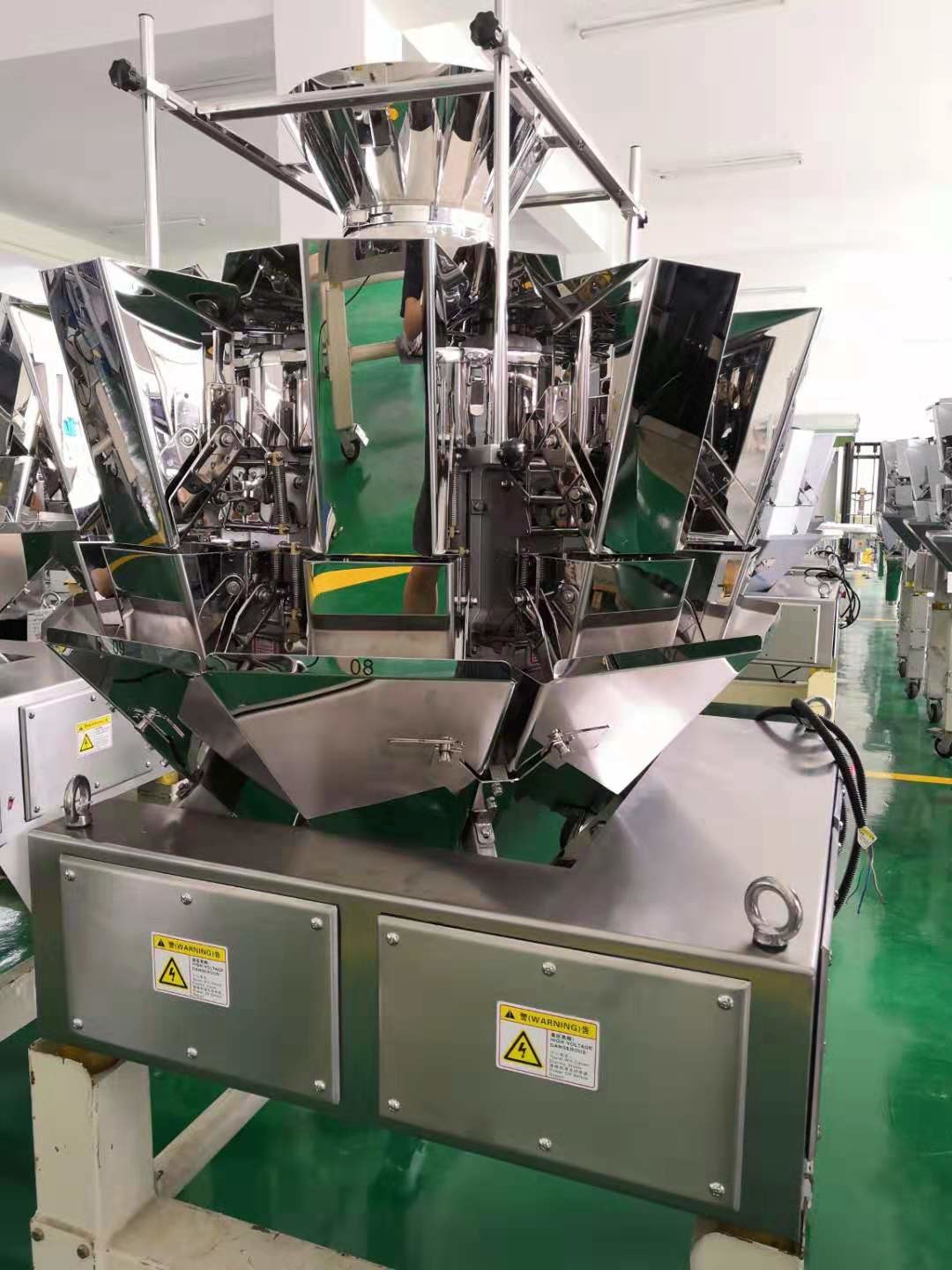

2. Multihead weigher:
For weighing the product.
3. Working platform:
For supporting the multihead weigher.
4.Rotary packing machine:
For premade bag sealing .

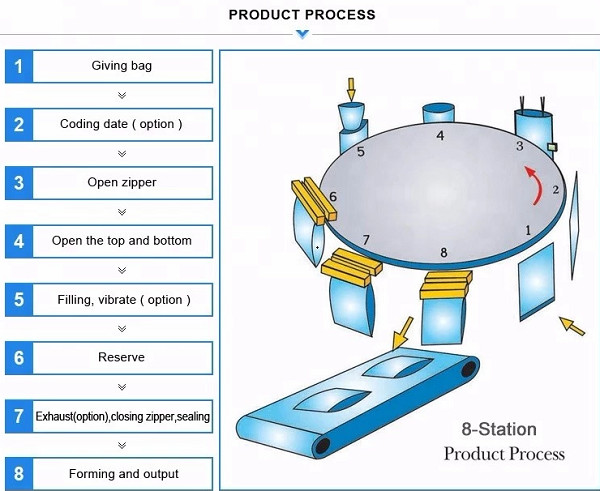

Station process:
1. Bag Feeding 2. Date Coding 3. Bag Opening 4. Filling
5. Filling 6. Stand by 7.Heat Sealing 8.Forming & Output
Bag types
More details of machine

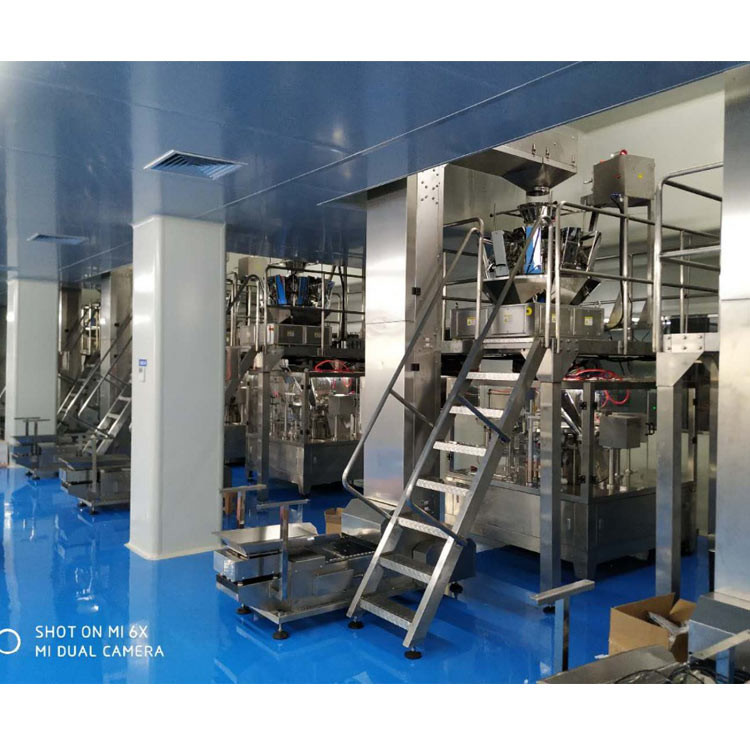

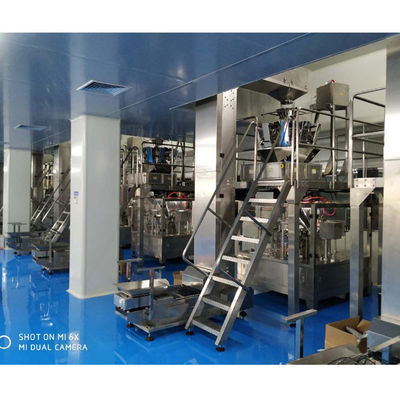

Our cases
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
