Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-V720 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+13500+Sets |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Material: | 304SS | Name: | VFFS Packing Machine |
|---|---|---|---|
| Packaging Type: | Pillow Bag . Punching Bag , Gussted Bag , Connecting Bag | Warranty: | 1 Years |
| Driven Type: | Electric | Function: | Filling , Wrapping , Sealing |
| Max Film Width: | 720mm | Model: | ZH-V720 |
| Bag Material: | BOPP/CPP , BOPP/VMCPP , BOPP/PE | Dimension(mm): | 1630 * 1580 *2200 |
| Highlight: | ZH-V720 vertical form seal machine,3KW vertical form seal machine,ZH-V720 VFFS packaging machine |
||

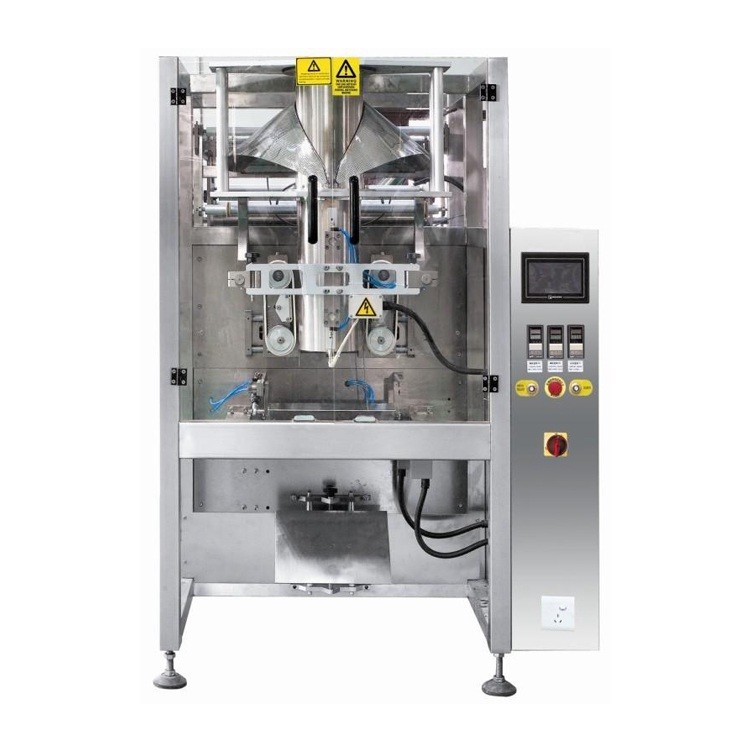

Industrial potato chips tortilla chips packing machine banana chips packaging machine for sale
I . Technical Feature
1 . Imported PLC control system and color touching screen enable easy and efficient operation
2 . Computer control and English-Chinese touch screen for easy operation without stopping the unit.
3 . Intelligent temperature controller for easy adjustment and good application to various laminated film and paper.
4 . Packaging diversification, such as pillow bag, gusseted bag, hole punched bag etc.
5 . Full automation from bag forming, filling, sealing, cutting and date printing.
6 . Multi-heads scale filling system for filling accuracy and good application to various kinds of products.
II . Technical Specification
| Model | ZH-V720 |
| Packing speed |
15-50 Bags / Min |
| Bag size(mm) | (W) 120-350 (L) 100-450 |
| Bag size(mm) |
ZH-V320 (W) 60-150 (L) 50-200 ZH-V420 (W) 60-200 (L) 60-300 ZH-V520 (W) 90-250 (L) 80-350 ZH-V620 (W) 100-300 (L) 100-400 |
| Bag making mode |
Pillow bag, standing bag (gusseted), punch, Linked bag |
| Maximum width of packing film (mm) | 720 |
| Thickness of film (mm) | 0.04-0.09 |
| Air consumption | 0.4m3/min 0.6MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET, |
| Power Parameter | 220V 50/60Hz 3KW |
| Package Volume (mm) | 1630(L)×1580(W)×2200(H) |
| Gross Weight (kg) | 700kg |
III . Application of ZH-V720 Vertical Packing Machine
It is suitable for packing is suitable for ppuffy food , crispy rice ,Potato Chips ,Snacks ,candy,pistachio,sugar,apple slices,dumpling,chocolate ,pet food ,small wares etc ., et
Bag Type of Vertical Packing Machine :
Our Factory :
Why choose ZONPACK :
