Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-V420 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+9500+Sets |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Material: | 304SS , 316SS | Name: | Automatic VFFS Packing Machine |
|---|---|---|---|
| Packaging Type: | Pillow Bag . Punching Bag , Gussted Bag , Connecting Bag | Driven Type: | Electric |
| Function: | Filling , Wrapping , Sealing | Max Film Width: | 420mm |
| Model: | ZH-V420 | Bag Material: | BOPP/CPP , BOPP/VMCPP , BOPP/PE |
| Feature: | Dual Belt Pulling With Servo Makes Film Transporting Smoothly | ||
| Highlight: | ZH-V420 automatic weighing packaging machine,420mm automatic weighing packaging machine,420mm vertical form fill seal packing machine |
||
China automatic weighing packaging machine for candy crisps gummy bear peanut packing machine
I . Technical Feature
1 . Computer control and English-Chinese touch screen for easy operation without stopping the unit
2 . Packaging diversification, such as pillow bag, gusseted bag, hole punched bag etc.
3 . Full automation from bag forming, filling, sealing, cutting and date printing.
4 . Intelligent temperature controller for easy adjustment and good application to various laminated film.
5 . Multi-heads scale filling system for filling accuracy and good application to various kinds of products.
II . Technical Specification
| Model | ZH-V420 |
| Packing speed |
25-70 Bags / Min |
| Bag size(mm) | (W) 60-200 (L) 60-300 |
| Bag size(mm) |
ZH-V320 (W) 60-150 (L) 50-200 ZH-V520 (W) 90-250 (L) 80-350 ZH-V620 (W) 100-300 (L) 100-400 ZH-V720 (W) 120-350 (L) 100-450 |
| Bag making mode |
Pillow bag, standing bag (gusseted), punch, Linked bag |
| Maximum width of packing film (mm) | 420 |
| Thickness of film (mm) | 0.04-0.09 |
| Air consumption | 0.4m3/min 0.6MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET, |
| Power Parameter | 220V 50/60Hz 3KW |
| Package Volume (mm) | 1530(L)×970(W)×1700(H) |
| Gross Weight (kg) | 450kg |
III . Application of ZH-V420 Vertical Packing Machine
It is suitable for packing is suitable for grains, pulses, seeds, salt,coffee beans, maize, nuts, candies, dried fruits, pasta, vegetables, snacks, pet food, low weighing engineering products and many more.

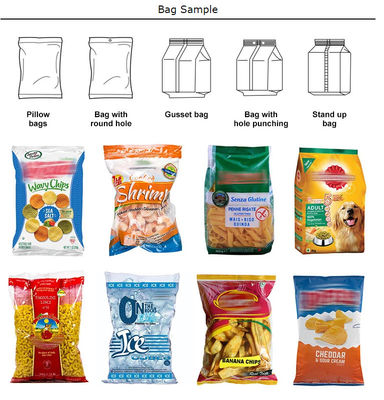

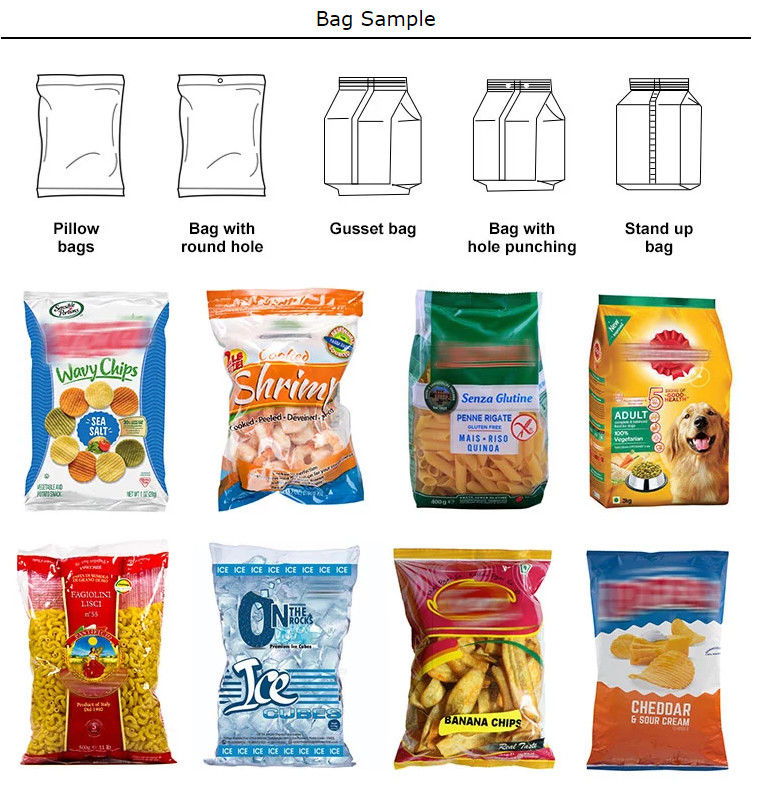

Bag Type of Vertical Packing Machine :

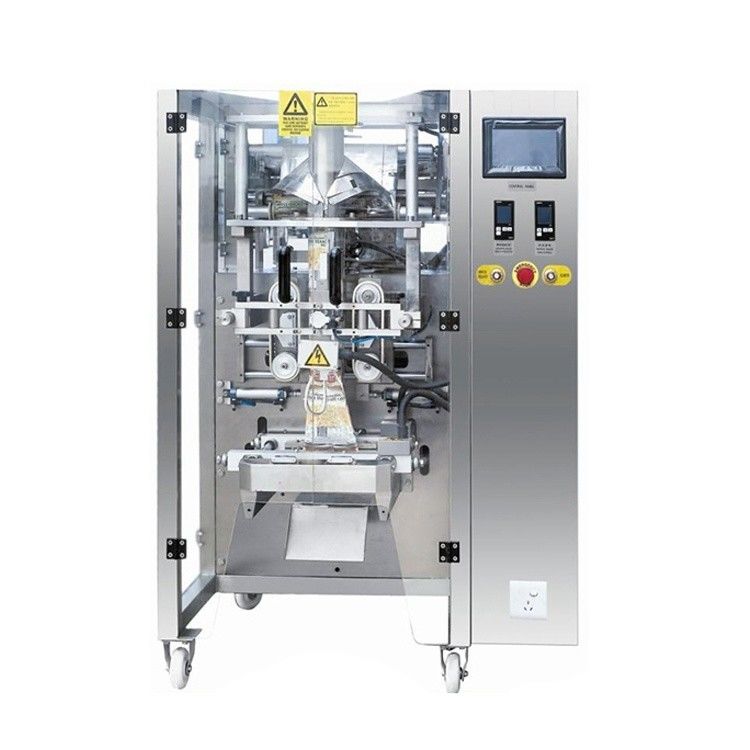

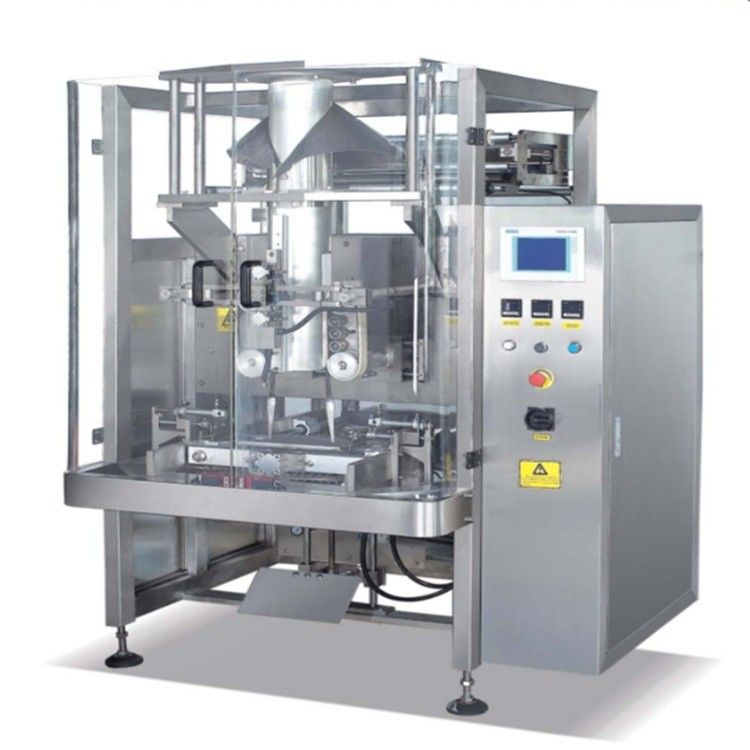

Machine's picture

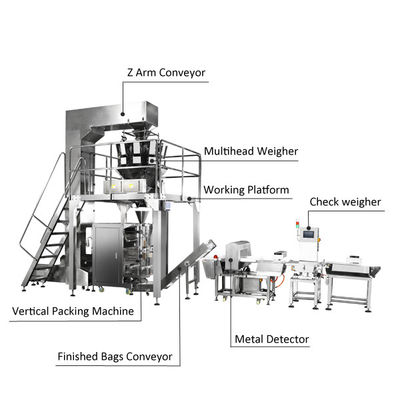

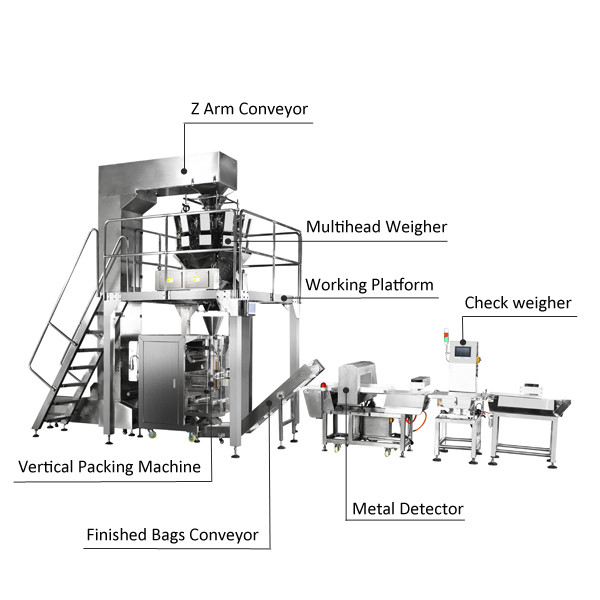

Some case :
Our Factory :
Why choose ZONPACK :
