Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,Zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-GD8-200 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+23500-40000+Sets |
| Packaging Details: | Wooden case |
| Delivery Time: | 45working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Bag Type: | Pre-made Bag , Zipper Bag , Stand Up Pouch Bag | Material: | 304SS , 316SS |
|---|---|---|---|
| Warranty: | 1 Years | Touch Screen: | 7inch , Weinview |
| Speed: | 25-60bags / Min | Accuracy: | ±0.5gram |
| Working Position: | Eight Position | Pouch Size: | W : 100-200mm L : 75-300mm |
| Feature: | Adopting PLC And Touch Screen , Easy To Operate | ||
| Highlight: | 75mm premade bag packaging machine,0.5g premade pouch packaging machine,75mm premade pouch packaging machine |
||

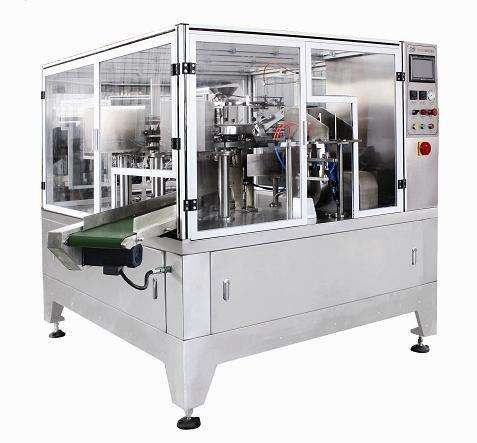

CE Stand up premade pouch bag packaging machine for dry nuts raisin peanut packing machine
1 . Main function
1 . Automatically check bag open status, it will not fill and seal when bag is not opened fully. It avoids the wasting of bag and raw material and save cost.
2 . Machine working speed can be adjusted continuously with frequency converter
3 . PLC from SIEMENS is adopted, the control system is easy to operated with friendly HMI interface.
4 . Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.
5 . Machine can work with dual-fill, filling with two types of material, such as solid and liquid, liquid and liquid.
6 . Machine can work with bag that width range from 100-200mm, by adjusting the width of clips.
7 . Adopting advanced bearing, where no need to add oil and less pollution for product.
8 . Rotary packing machine can work with different filler to pack solid, powder and liquid.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
2 . Technical Specification
| Model | ZH-GD8-200 |
| Packing Speed | 25-50 bag/min |
| Bag Size (mm) |
W: 100-200mm L: 75-300mm W: 200-300mm L: 200-450mm |

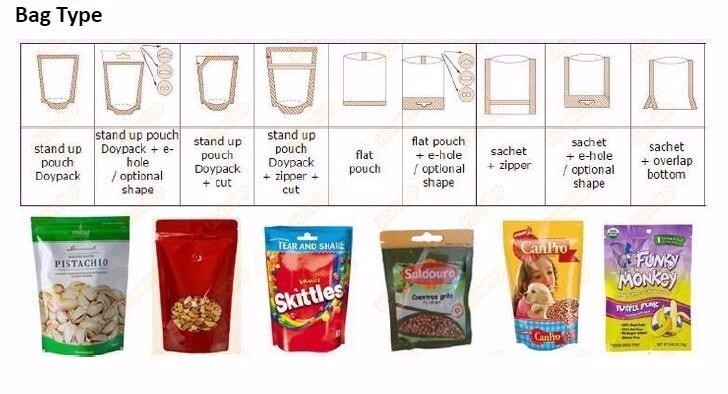

| Bag Type |
Flat pouch, Stand up pouch, Stand up pouch with zipper |
| Air Consumption | 0.4 m3/min 0.8Ma/ |
| Packing Material | POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET |
| Power Parameter | AC380V/50Hz/3KW |
| Machine Dimension(mm) | 1770(L) ×1700(W)×1800(H) |
| Gross Weight (Kg) | 1200 |
3 . Application
ZH-GD8-200 Rotary packing machine is suitable for automatic packing for grain and solid food, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, pistachio , apple slices etc.

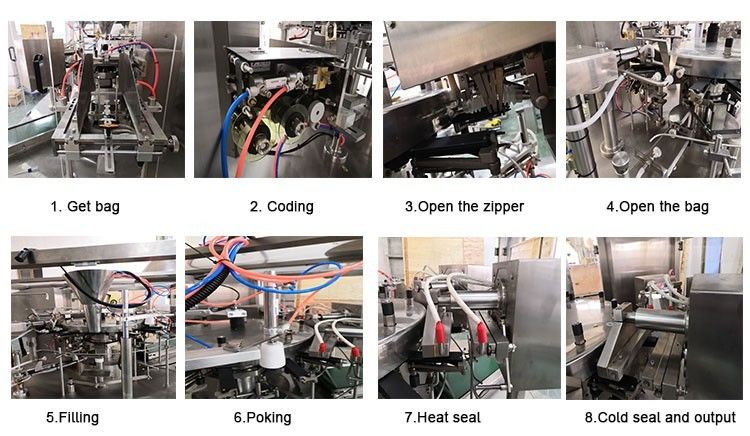

4 . Working process of Pre-made bag Packing Machine
5 . Our Factory
Why choose ZONPACK :
