Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DM300 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5500-5700USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Food Grade Metal Detector | Model: | ZH-DM300 |
|---|---|---|---|
| Belt Speed: | 25m/min | Window Width: | 300mm |
| Belt Width: | 280mm | Frame Material: | SUS304 |
| Power Supply: | 220V/110V 50/60Hz | Alarm: | Stop Or Rejector |
| Rejector: | Air Blow, Pusher, Shifte | Max Weight: | 5kg |
| High Light: | 460mm Food Grade Metal Detectors,50Hz Food Grade Metal Detectors,460mm metal detection in food packaging |
||

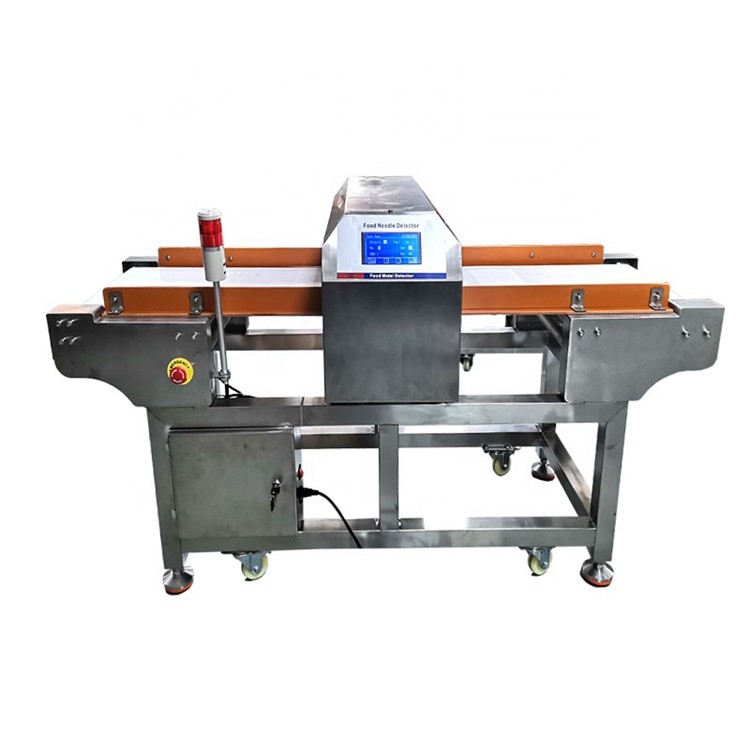

Automatic Program Sensitivity Belt Conveyor Food Grade Metal Detector
Technical Feature
1.Stable and high sensitivity
Mature phase adjustment technology, avoiding shortcomings like no phase of LC analog circuit, low stability,
without products suppression function and machine aging caused by time and temperature.
2. Auto-setting function
Fast learn product character automatically and finish Auto-setting process.
3. User friendly function
Automatic rewind function, dispense with handling large products.
52 products can be restored in database.
LCD, Chinese-English menu, easy operation
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300mm | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||
| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||

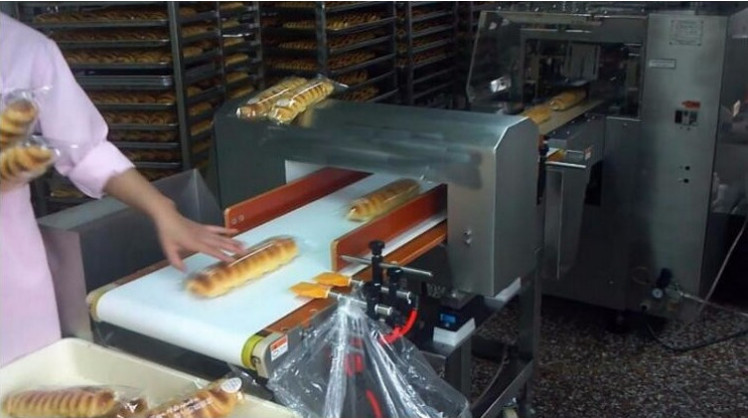

Application
Detecting all metal contaminants in packaged and non-packaged food, Including ferrous metal(Fe),
non-ferrous metals(Copper, Aluminum etc.) and stainless steel.

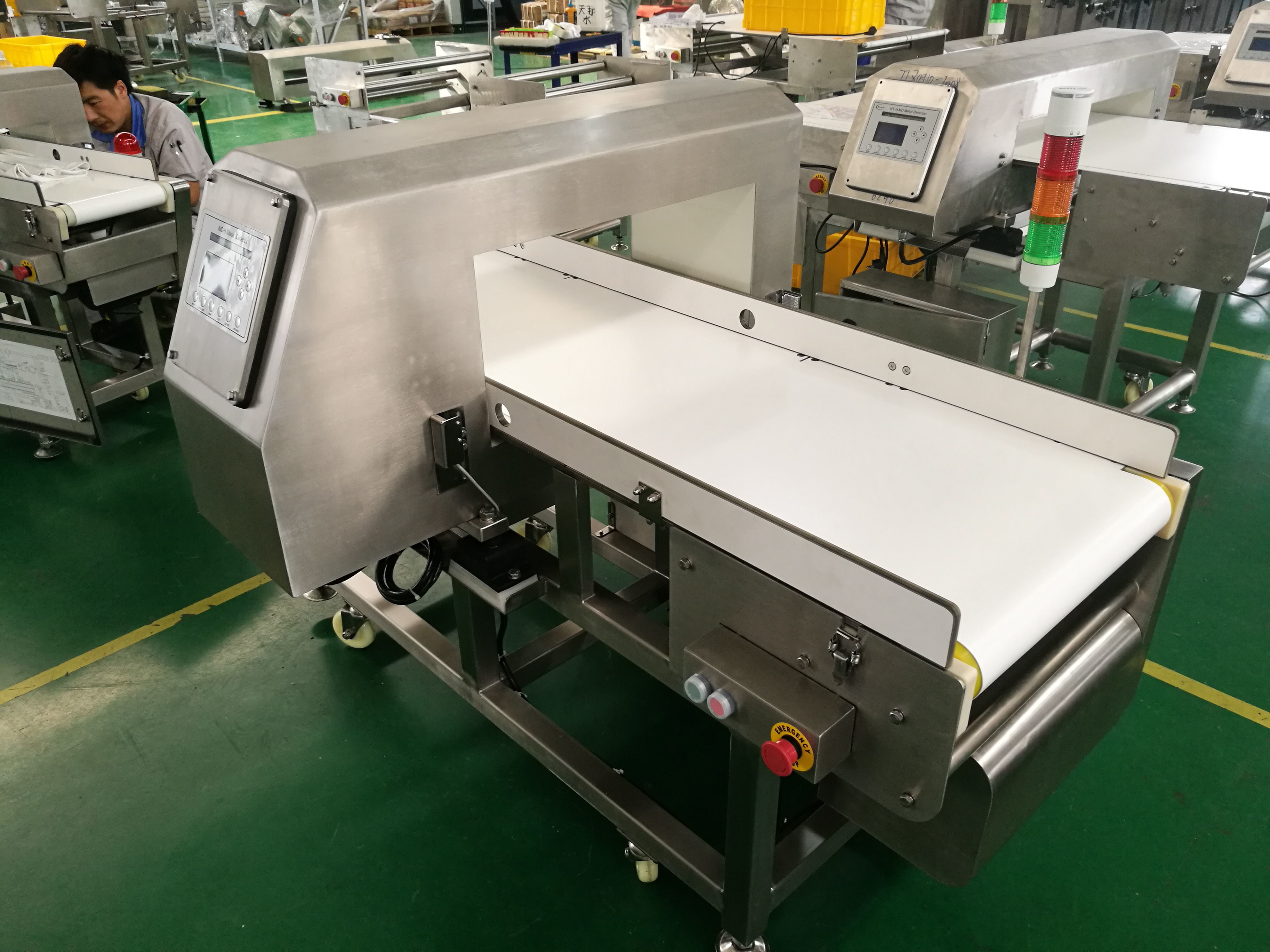

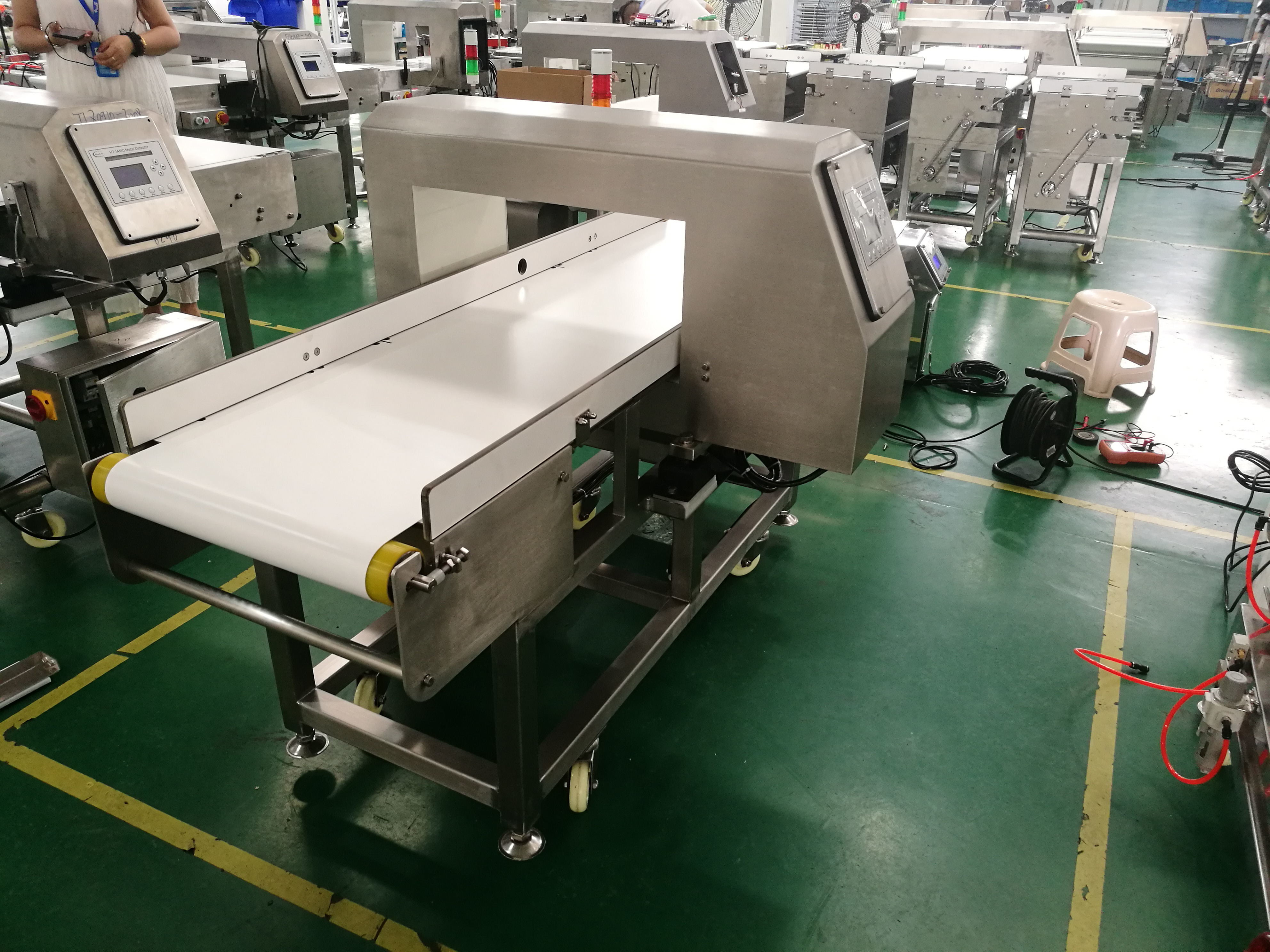

Machine Details
Our Partners:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
