Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD+23000USD+per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-40 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 99+ Set+ per+ month |
| Material: | 304SS | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Feeding,Filling ,Weighing,Sealing |
| Name: | Fully Automatic Candy Packing System | Application: | Chemical, Commodity, Food, Machinery & Hardware |
| Feature: | Adopting PLC And Touch Screen , Easy To Operate | Technical Specification: | PLC Computer Control System. |
| Speed: | 20-60bags/min | Accuracy: | ±0.1-1.5g |
| High Light: | 2.2KW Nuts Packing Machine,PLC Nuts Packing Machine,2.2KW gummy bear packaging machine |
||
Factory price gummy bear candy packaging machine for spices cashew nut peanut packing machine price
| Technical Specification | |
| Model | ZH-BL10 |
| Packing Speed | 25-60 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag,linked bag |
| Packing Material | laminated film ,PE film |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
Technical Feature :
1. Material conveying, weighing, filling, bag-making, date-printing, finished product outputting are all completed
automatically.
2. High weighing precision and efficiency.
3. Packing efficiency will be high with vertical packing machine and easy to operate.
4 .. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
5. Intelligent: Packing speed and bag size can be set through the screen without part changes;
6. Profession: Independent temperature controller with heat balance enables different packing materials;
7. Characteristic: Automatic stop function, with safe operation and saving the film;

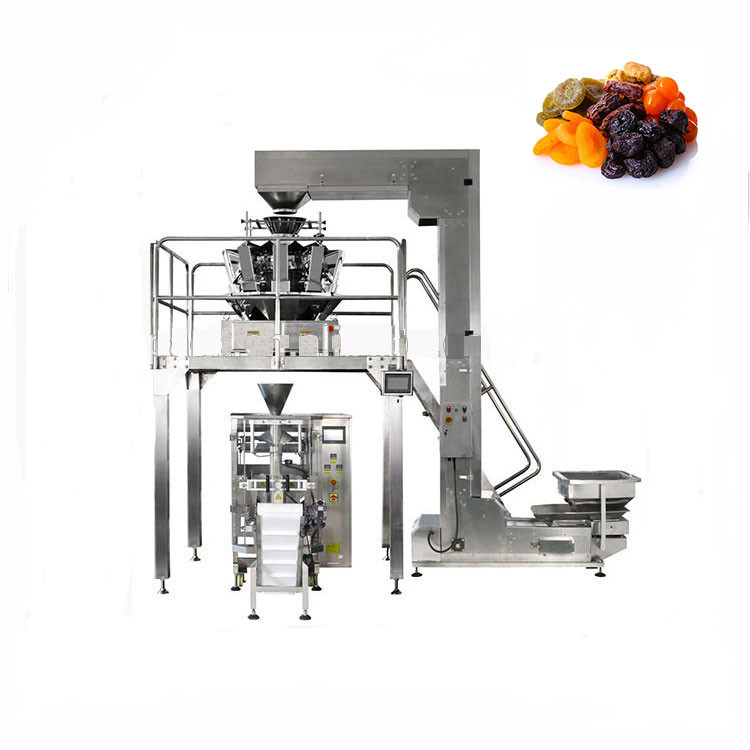

System Compostion :
1. Infeed bucket conveyor:
Feed nuts to multihead weigher which controls the start and stop of the hoister.

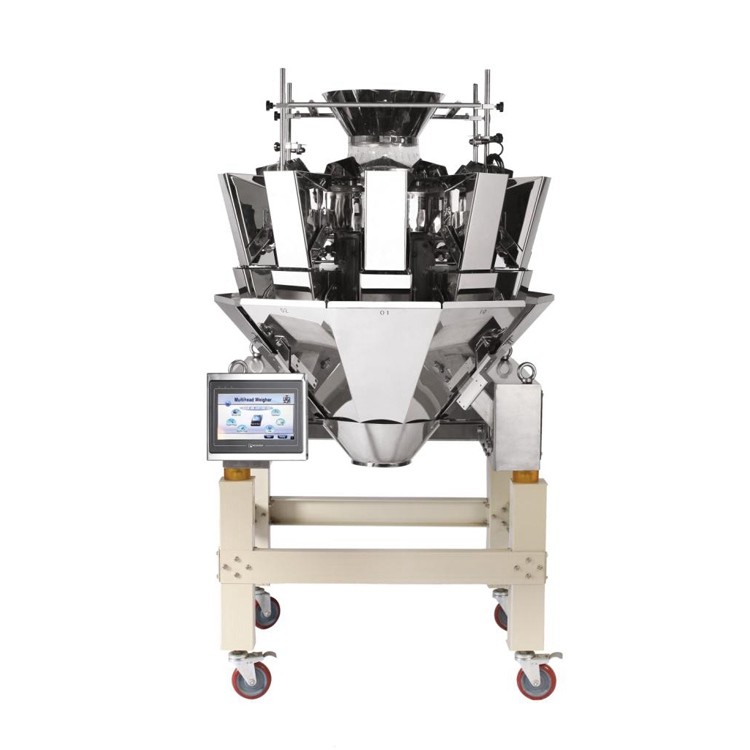

2. 10 heads multi weigher:
Used for nuts weighing.
3. Working platform:
Support the 10 heads multi weigher.

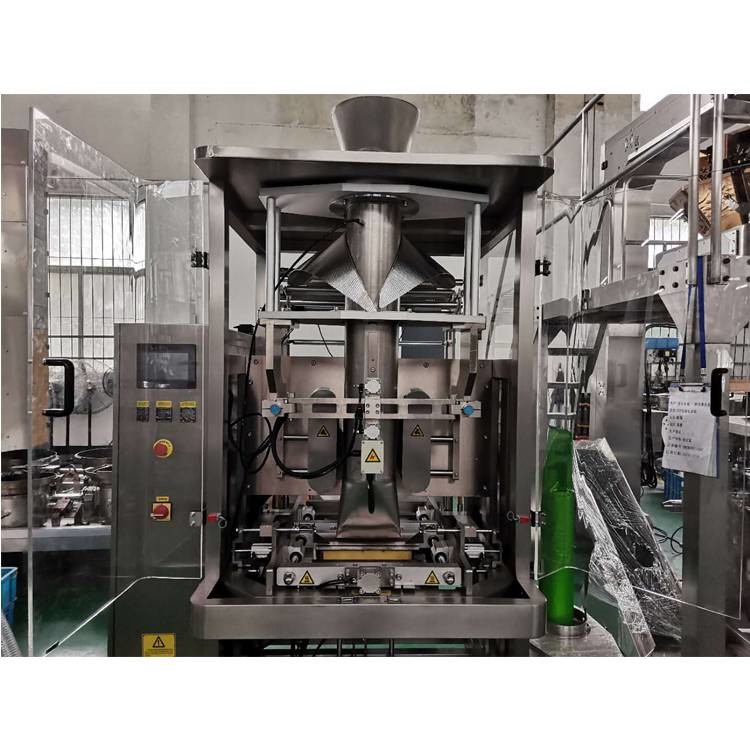

4. Vertical packing machine:
Pack nuts with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Take off conveyor:
Convey nuts finished bag to next step.
6. Rotary table:
For finished bag collecting.
Application of Machine
It is suitable for weighing and packing grains, pulses, seeds, salt,coffee beans, maize, nuts, candies, dried fruits, pasta, vegetables, snacks, pet food, low weighing engineering products and many more etc.
Some Project :
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
