Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-CZ18-SS-B |
| Minimum Order Quantity: | 1 Set |
| Price: | 3000-4000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 299 Sets per month |
| Material: | 304SS | Voltage: | 220V |
|---|---|---|---|
| Bucket Material: | PP, Stainless Steel | Storage Hopper Size: | 650*650mm |
| Bucket Volume (L): | 0.8/1.8/4L | Power: | 0.75-3.5KW |
| Control: | VFD | Capacity: | 0.5-12m3/h |
| Highlight: | 4L vertical bucket elevator,VFD vertical bucket elevator,4L vertical bucket conveyor |
||

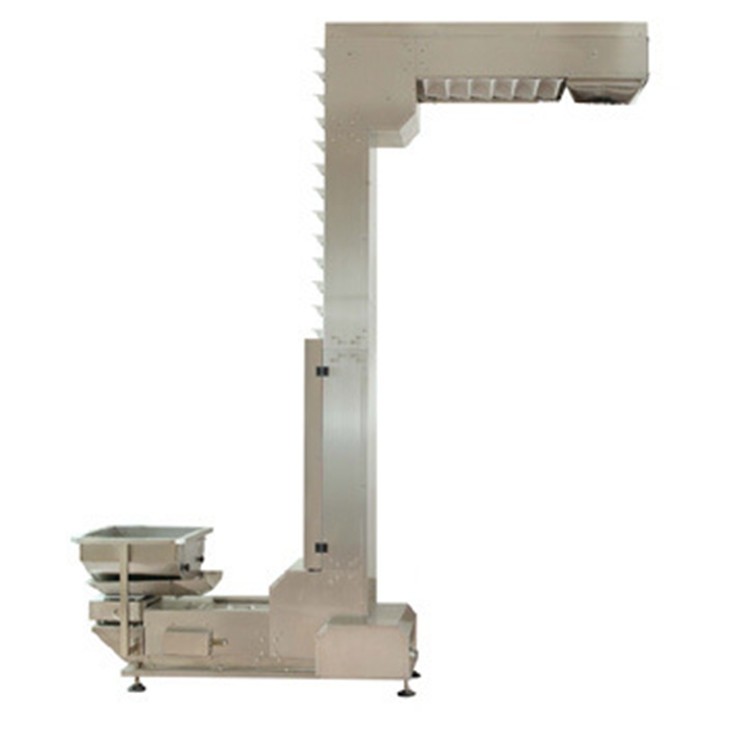

VFD control food grade vertical bucket elevator conveyor with PP material bucket
Main Features
1. Applicable for vertical feeding of granule or small block material
2. All products contact-parts are food-grade PP buckets for sanitary usage.
3. Speed is adjusted by Frequency Converter
4. Adjustable feeding vibrator rates for various flowing suitable products
5. With automatic chain tension device and built-in overload protection
6. Material-Level sensor to activate automatically when integrated with other machines
7. Quick-release mechanism to facilitate the fast installation or removal
8. Easy access for cleaning
9. 304# stainless steel version option for harsh environments.
10. Customized-discharge height designs
| Technical Specification | |||
| Model | ZH-CZ08-SS-B | ZH-CZ18-SS-B | ZH-CZ40-SS-B |
| Bucket Volume (L) | 0.8 | 1.8 | 4 |
| Convey Capacitance (m3/h) | 0.2-2 | 4-6.5 | 6-12 |
| Power | 220V or 380V 50/60Hz 0.75kW | ||
| Package Size (mm) | 1900(L)*950(W)*1150(H) | ||
| Bucket material | PP or 304SS can be optional | ||

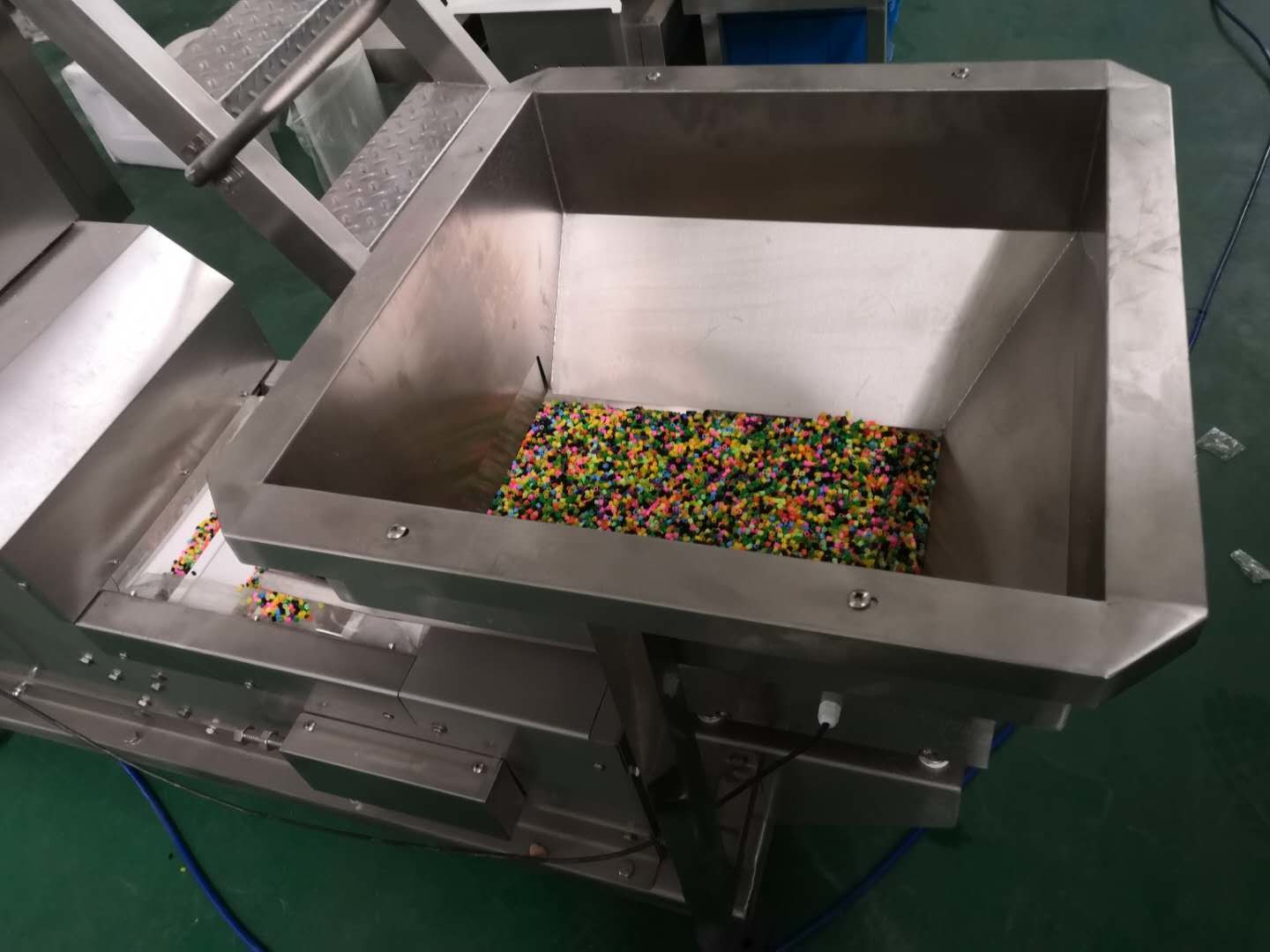

| Storage hopper size | 650mm*650 mm/ 800 mm *800 mm/ 1000 mm *1000 mm | ||
Machine Application:
Bucket conveyor (also called Z type bucket conveyor) consists of frame,buckets,chains,sprockets,control box
and other accessory are used to vertically convey bulk or loose materials efficiently.Bucket elevators can elevate
a variety of bulk materials from light to heavy and from loose,flowing fine materials to larger,partially fragile objects.
There are options for buckets that are gentle on high value consumer products such as cereals,pasta,confectionery,
coins,animal feet and the like.

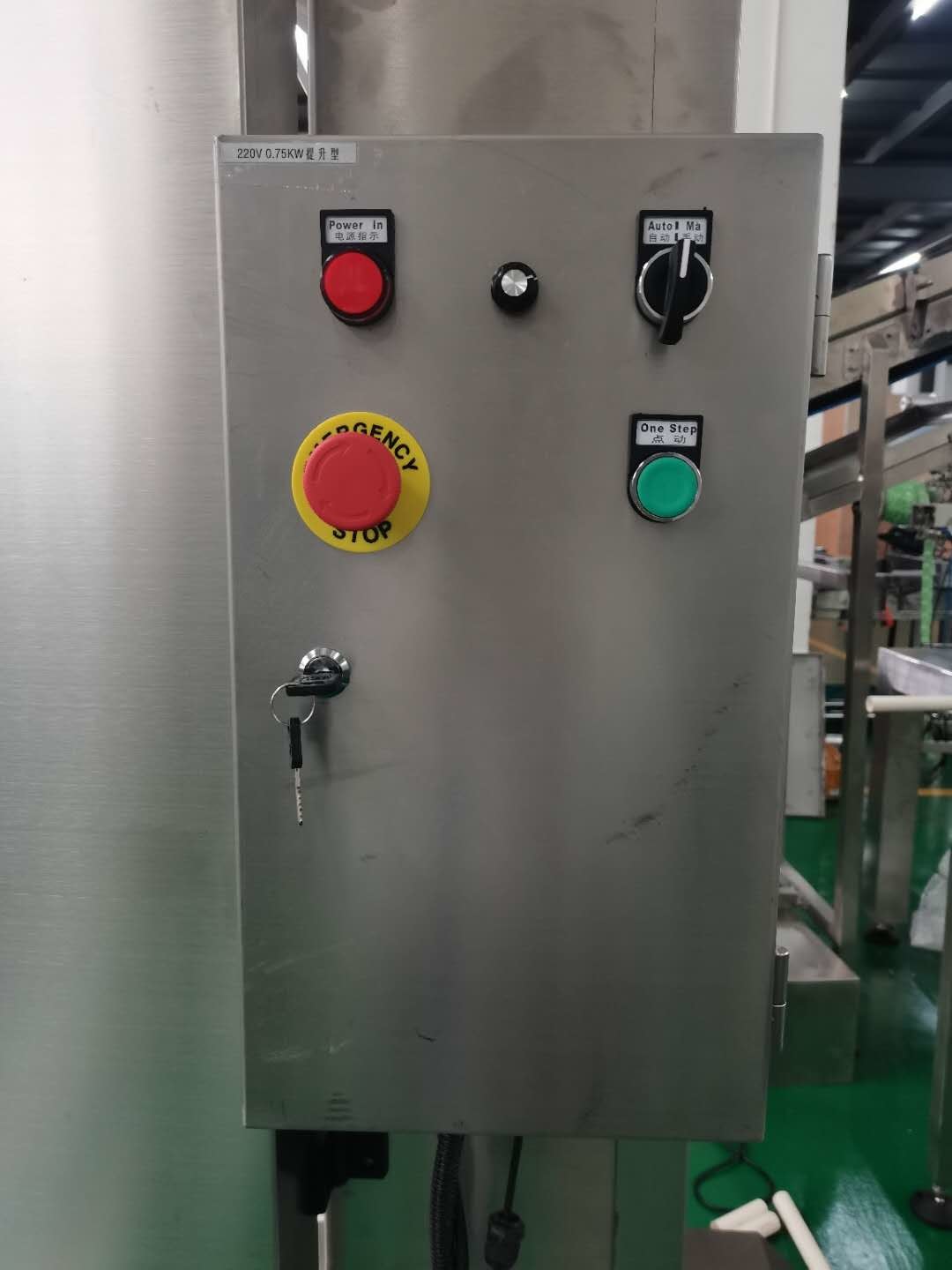

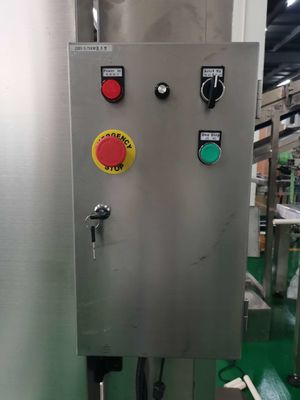

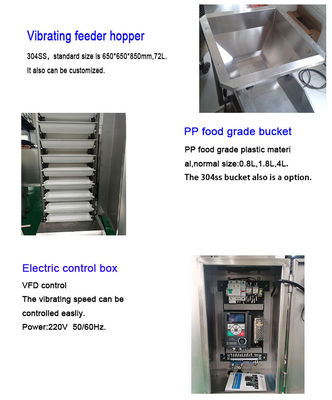

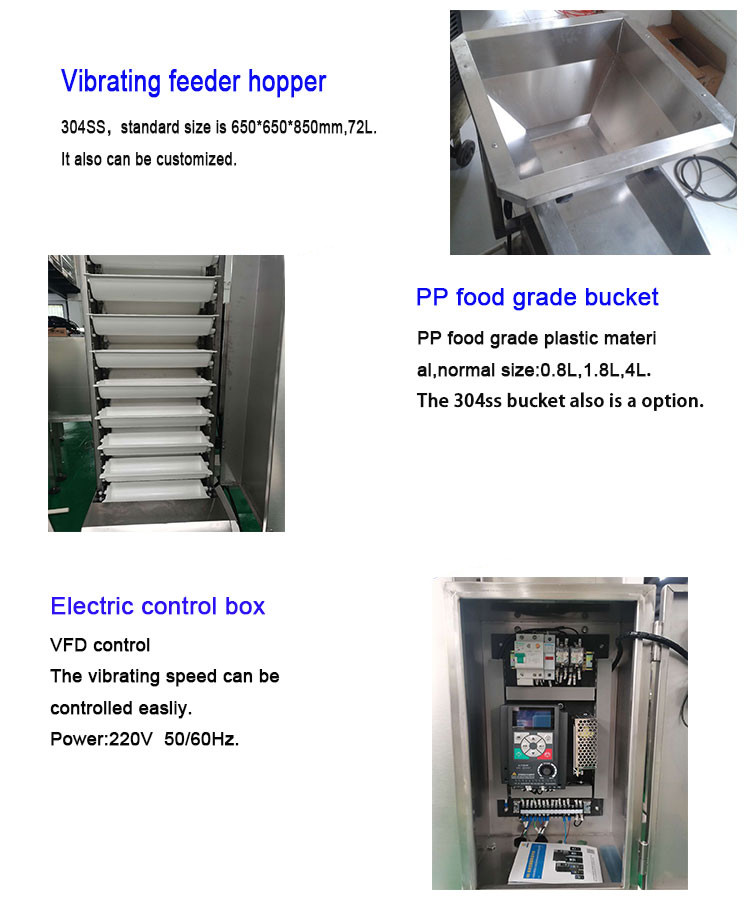

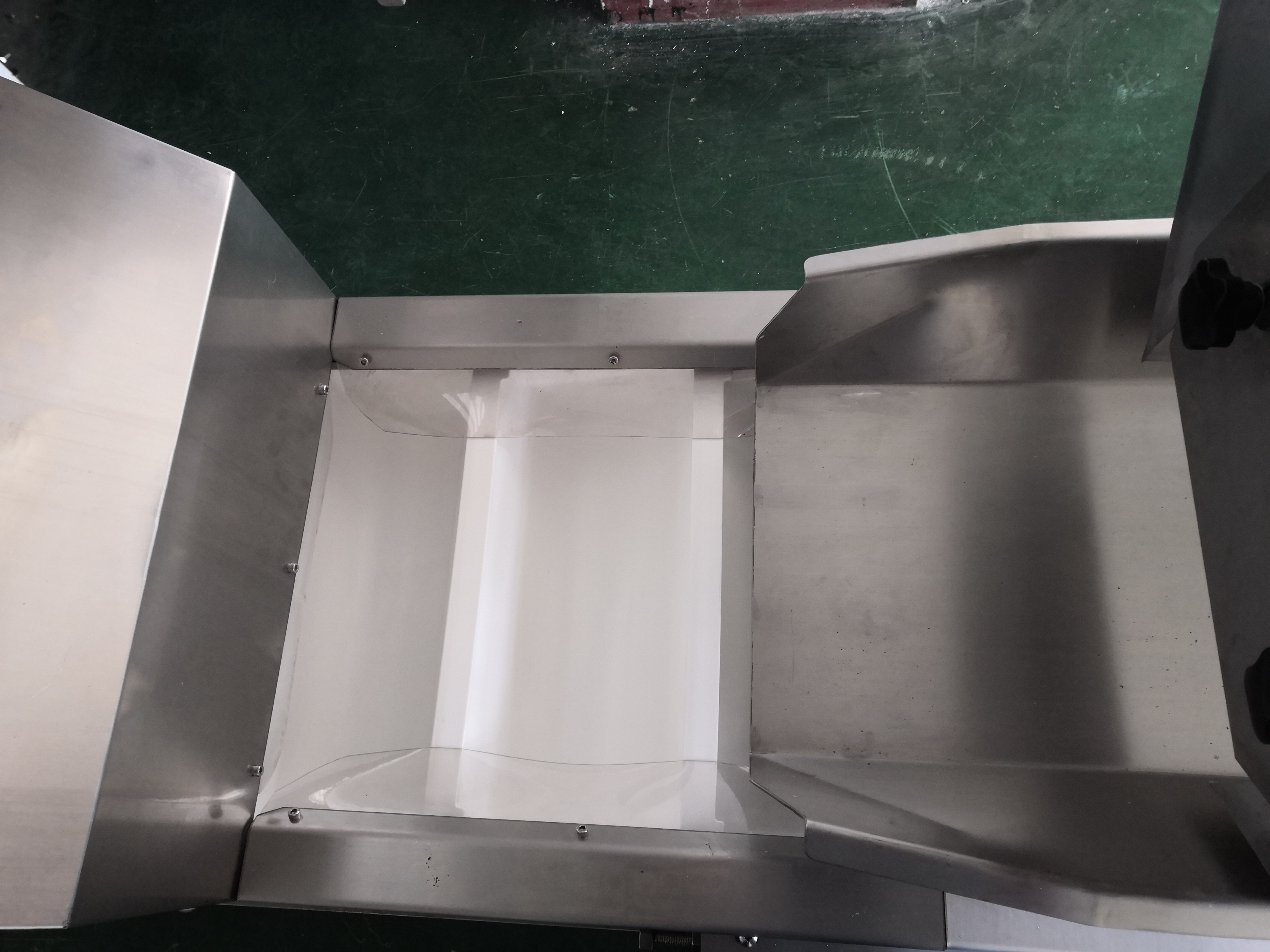

Machine Details
Case Shows
