Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-CZ18-SS-B |
| Minimum Order Quantity: | 1 Set |
| Price: | 3000-4000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 299 Sets per month |
| Material: | 304SS | Voltage: | 220V |
|---|---|---|---|
| Bucket Material: | PP, Stainless Steel | Storage Hopper Size: | 650*650mm |
| Bucket Volume (L): | 0.8/1.8/4L | Power: | 0.75-3.5KW |
| Control: | VFD | Capacity: | 0.5-12m3/h |
| High Light: | 4L Food Grade Conveyor,0.75KW Food Grade Conveyor,4L z type bucket conveyor |
||

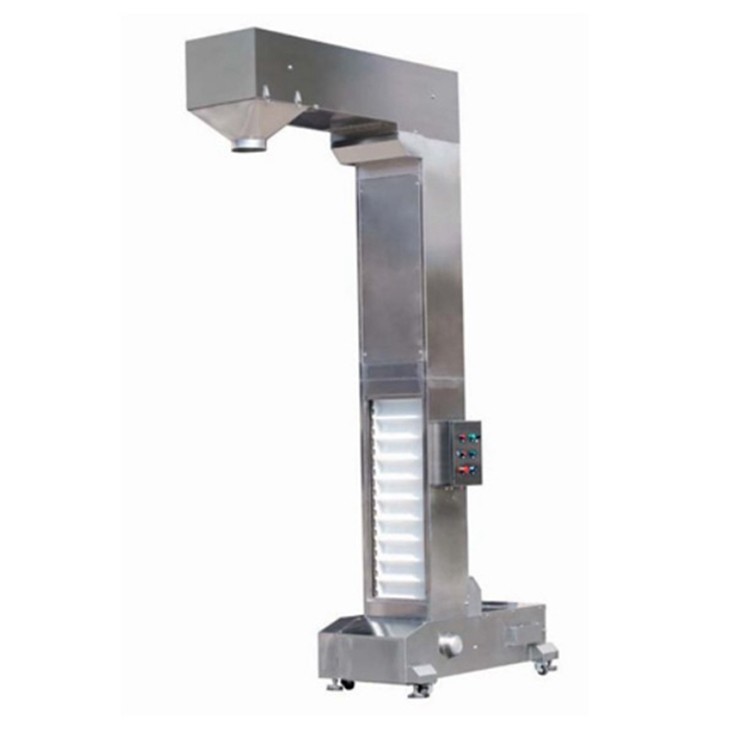

Easy operation 4L volume bucket conveyor with vibrating feeder
Main Features
1). Feeding speed can be adjusted by inverter;
2). Be made of stainless steel 304 construction or carbon painted steel
3). Complete automatic or manual carry can be selected;
4). Include vibrator feeder to feeding products orderly into buckets, which to avoid blockage;
5). Auto vibration control system, to ensure bulk products will be feeded evenly into Z bucket conveyor, and protect vibrator not keep strong. vib ration whie lower volume products inside the vibrator feeder (Optional Function);
| Technical Specification | |||
| Model | ZH-CZ08-SS-B | ZH-CZ18-SS-B | ZH-CZ40-SS-B |
| Bucket Volume (L) | 0.8 | 1.8 | 4 |
| Convey Capacitance (m3/h) | 0.2-2 | 4-6.5 | 6-12 |
| Power | 220V or 380V 50/60Hz 0.75kW | ||
| Package Size (mm) | 1900(L)*950(W)*1150(H) | ||
| Bucket material | PP or 304SS can be optional | ||
| Storage hopper size | 650mm*650 mm/ 800 mm *800 mm/ 1000 mm *1000 mm | ||
Machine Application:
1. The buckets are made of a food grade reinforced polypropylene, molded in one piece and can fit temperatures from -10 to 120 degrees Fahrenheit.
2. The bucket conveyor allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices
3. All parts have easy to remove.
4. The geared reducer motor drived the machine has a stable performance to prolong the machine life and easy to maintenance.
5.Optional parts: stainless steel and carbon steel.

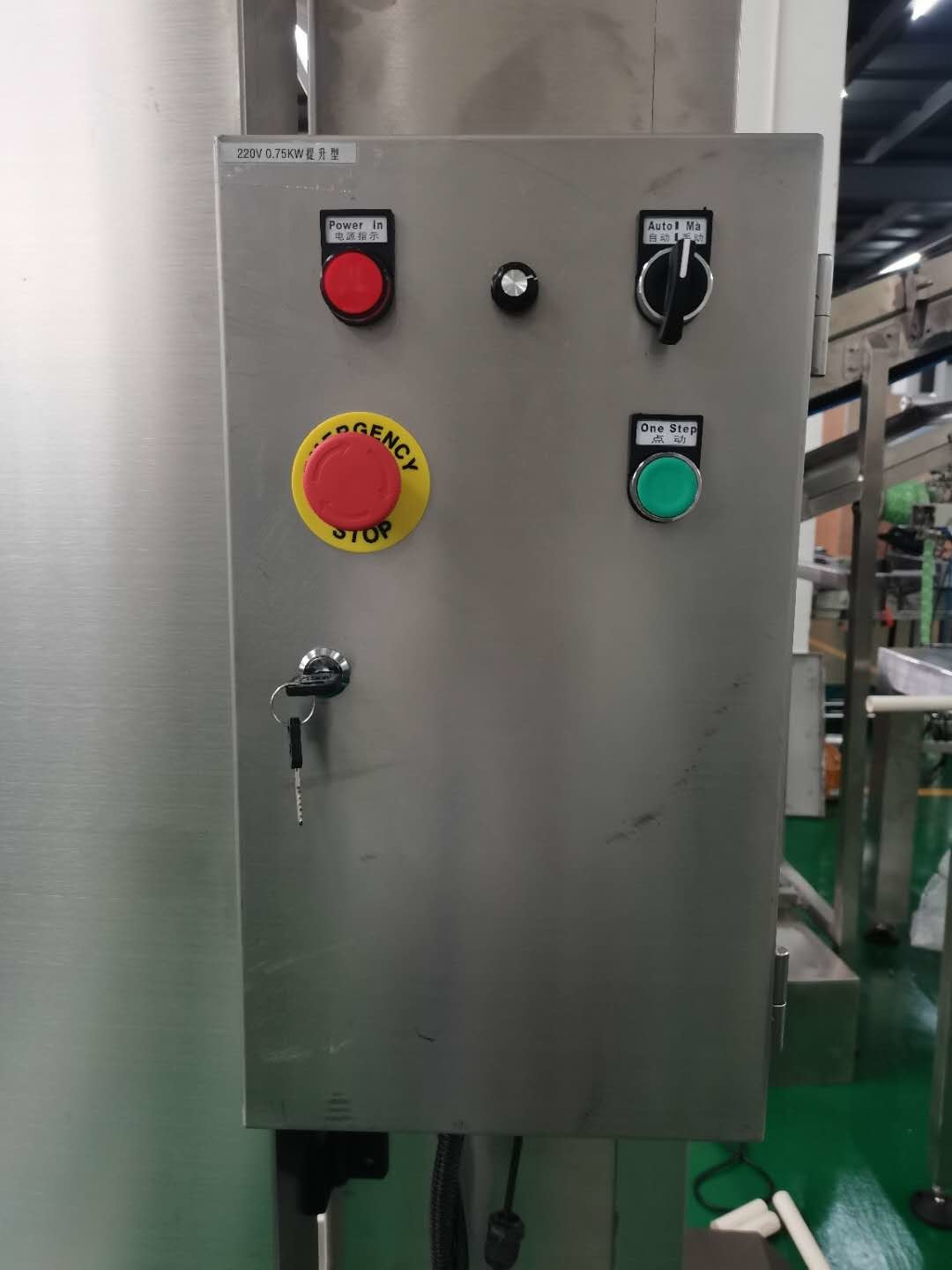

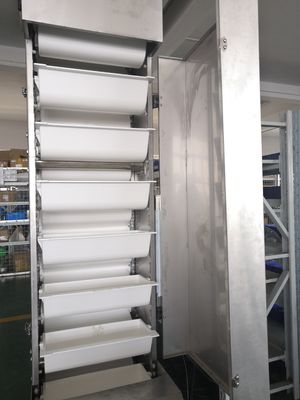

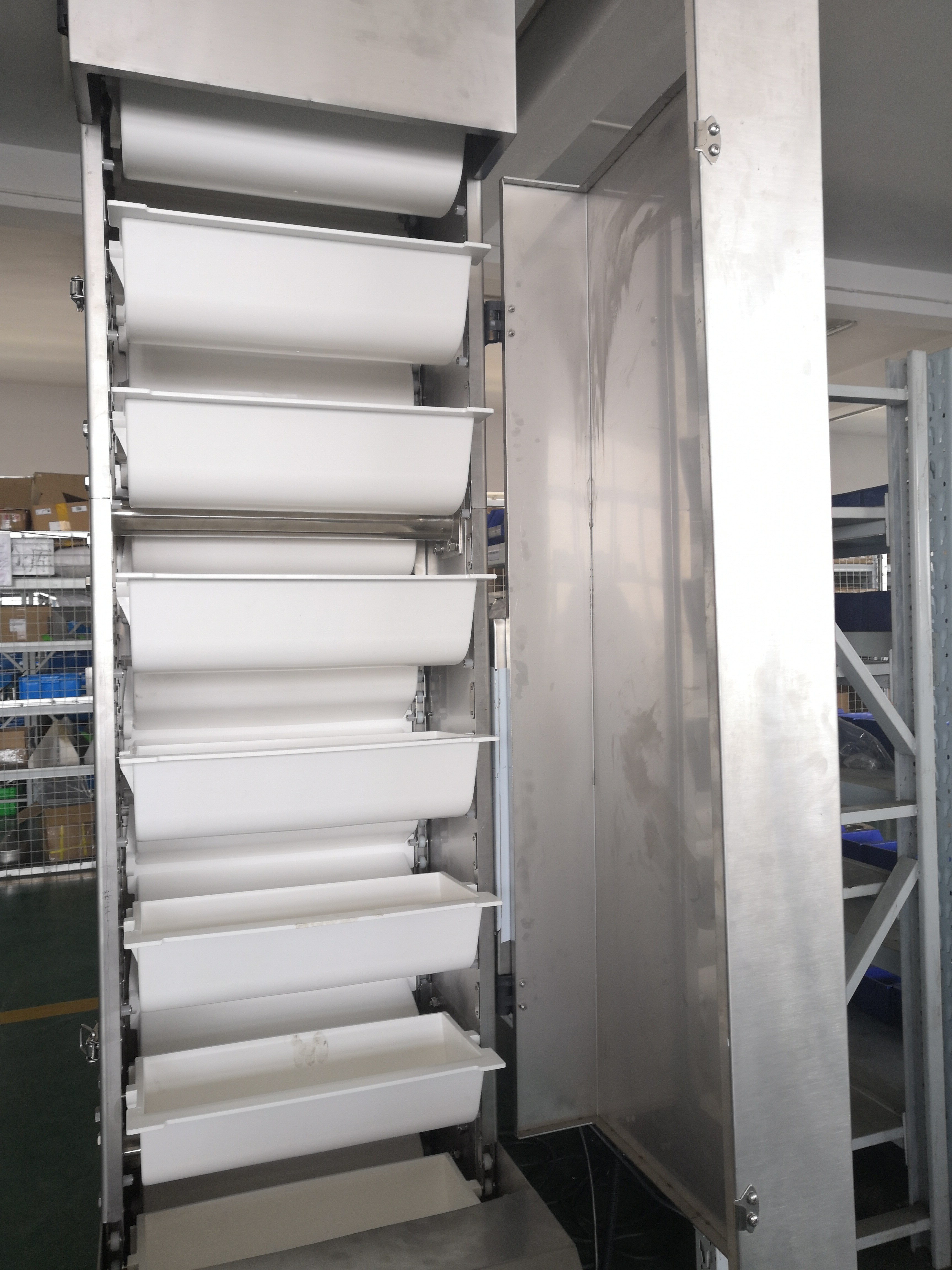

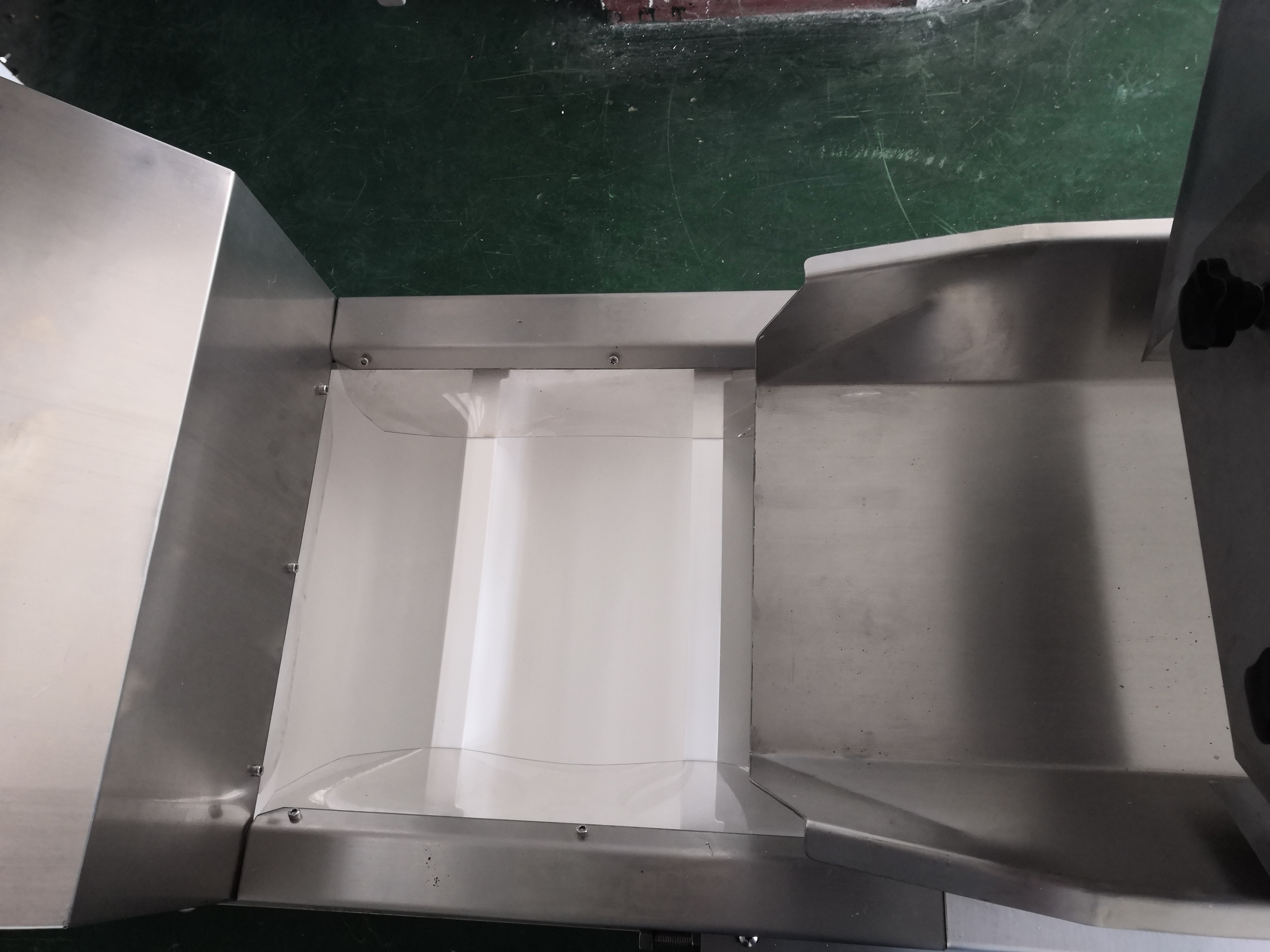

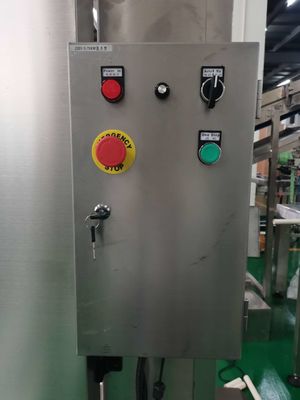

Machine Details

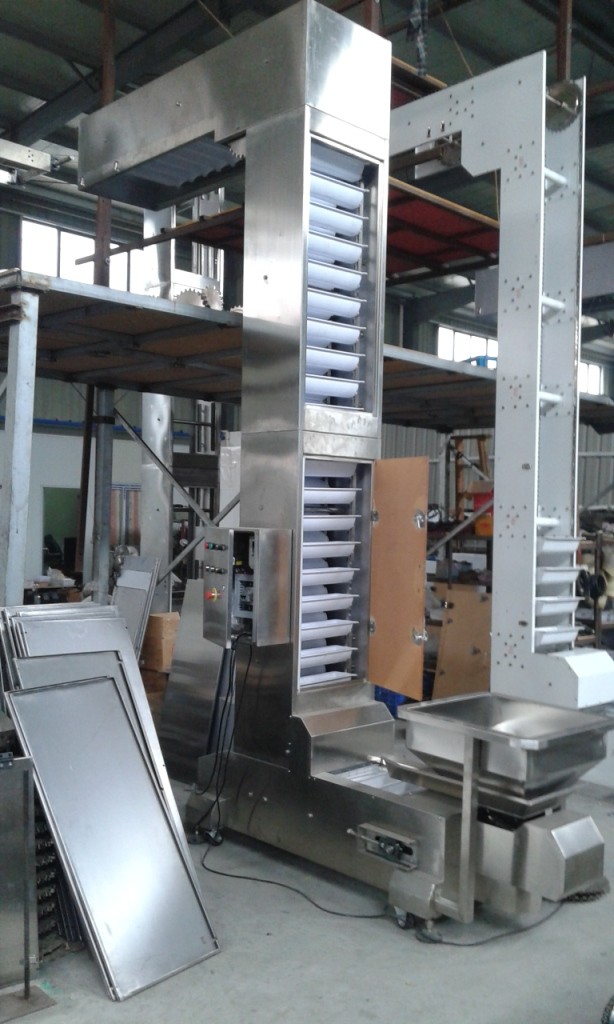

Case Shows
