Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DM300 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5500-5700USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Food Grade Metal Detector | Model: | ZH-DM300 |
|---|---|---|---|
| Belt Speed: | 25m/min | Window Width: | 300mm |
| Frame Material: | SUS304 | Power Supply: | 220V/110V 50/60Hz |
| Alarm: | Stop Or Rejector | Rejector: | Air Blow, Pusher, Shifter |
| Highlight: | 460mm metal detector machine for food industry,SUS304 metal detector machine for food industry,460mm automatic metal detector |
||

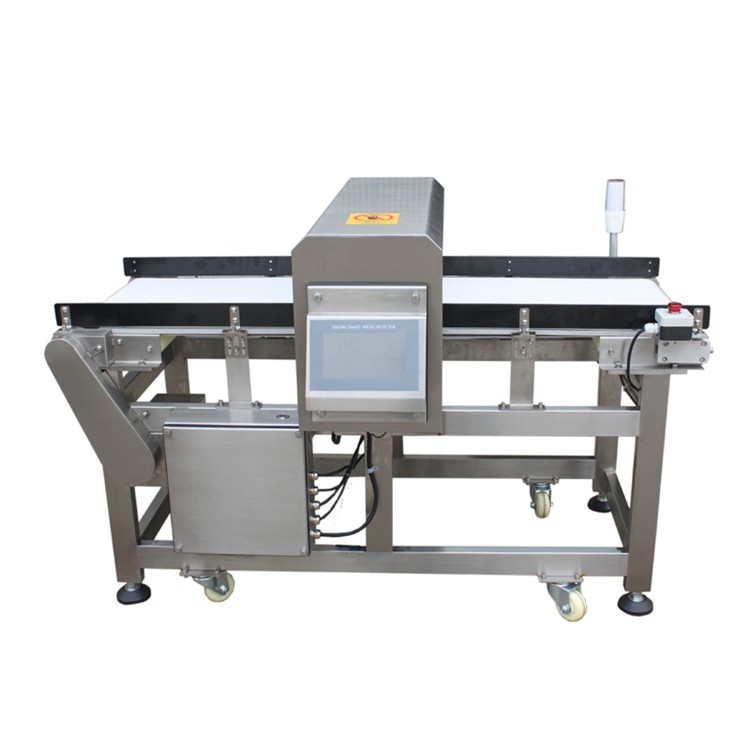

Auto setting parameters metal detector machine for food industry
Technical Feature
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal,
which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations.
Easy to adjust the detecting parameters.
5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally learn and store product’s features.
Easy to operate without manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.
9. Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65.
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300mm | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||
| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||
Application
Metal detection weight detection one machine, referred to as the gold inspection re-inspection machine.
By integrating the metal detector with the automatic check weigher function on a simple cantilever frame,
it is convenient and efficient to install into the existing workshop, minimizing the space requirements of the
production line and saving installation costs.

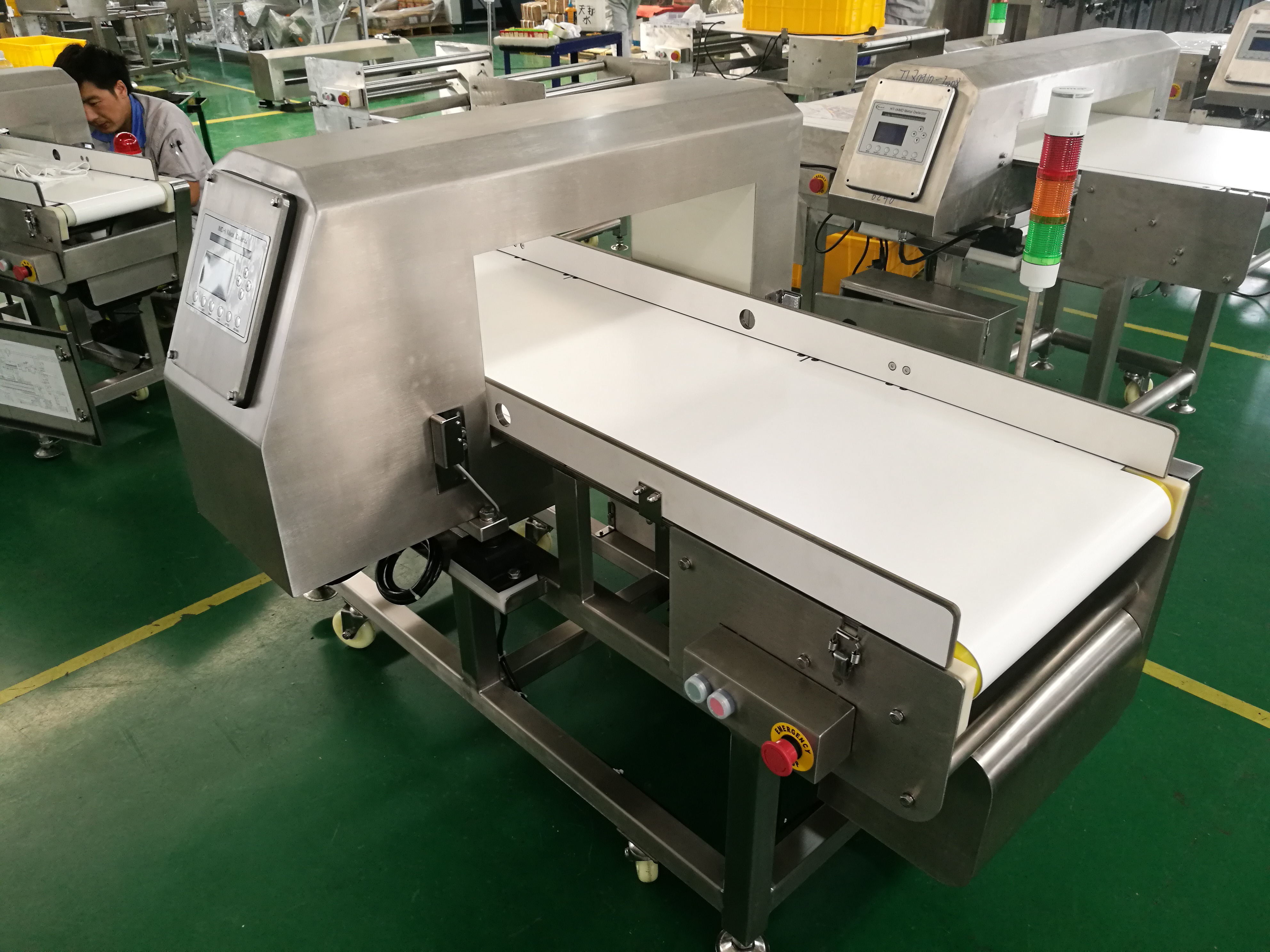

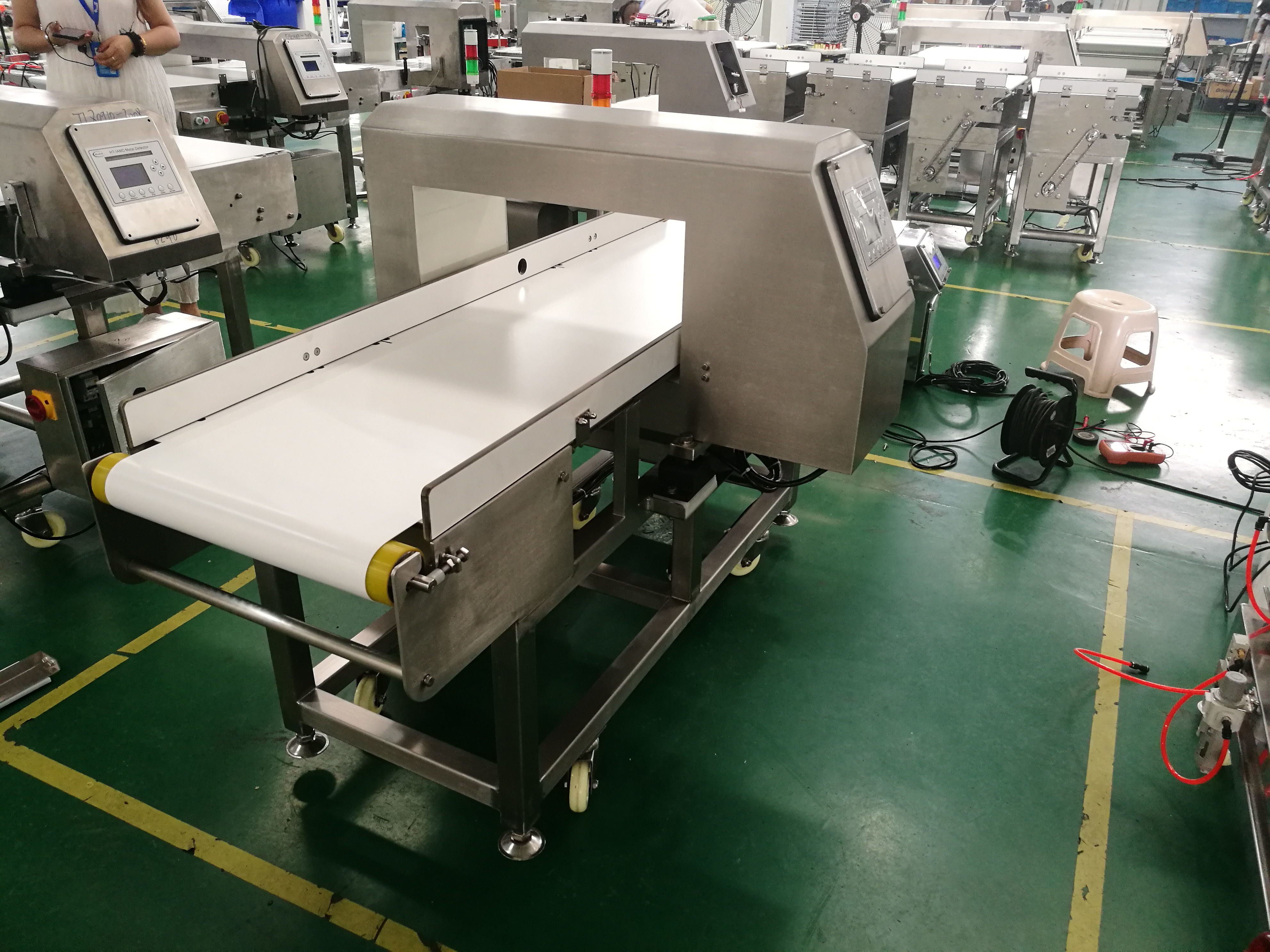

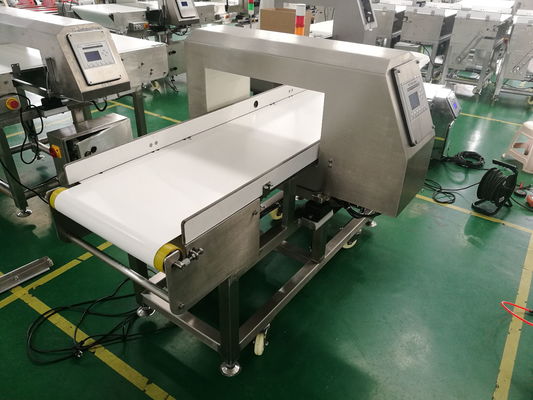

Machine Details
