Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DM300 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5500-5700USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Food Grade Metal Detector | Model: | ZH-DM300 |
|---|---|---|---|
| Application: | Chemical, Commodity, Food | Belt Speed: | 25m/min |
| Window Width: | 300mm | Frame Material: | SUS304 |
| Power Supply: | 220V/110V 50/60Hz | Alarm: | Stop Or Rejector |
| Rejector: | Air Blow, Pusher, Shifter | Max Weight: | 5kg |
| High Light: | 300mm frozen food metal detector,25m/min frozen food metal detector,300mm metal detectors for food production |
||

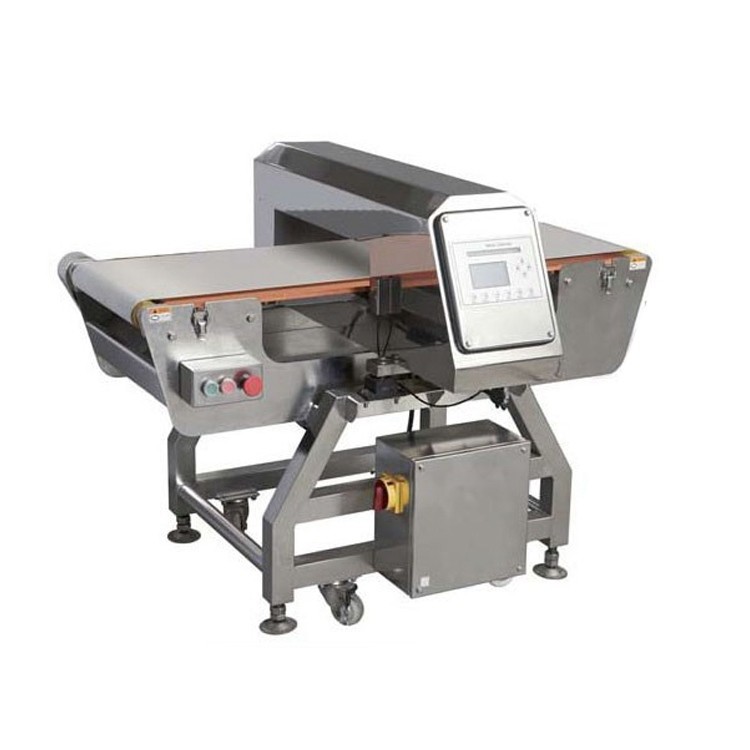

Auto-balance Frozen Food Grade Industry Production Line Metal Detector
Technical Feature
1. The body is made of stainless steel,which is beautiful in appearance,rust prevention and easy to clean.
2. Analog design is combined with digital design,greatly improving reliability and intelligence of the machine.
3. Adopt new touch screen input and large scale integrated circuit,CPU collects analog signals and converts into digital.
4. Adopt the set of user-friendly interface,ensuring that the entire operation is simple,human-machine interface
can be seen at a glance and all commands can be done by operating the interface.
5. Dynamically and visually display the dynamic test results of fe and SUS,the sensitivity of current Setting.
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300mm | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||
| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||
Application
Apply to detect mental leakage (such as iron, copper, lead, stainless steel, etc.) fallen in material and goods,
and automatically.

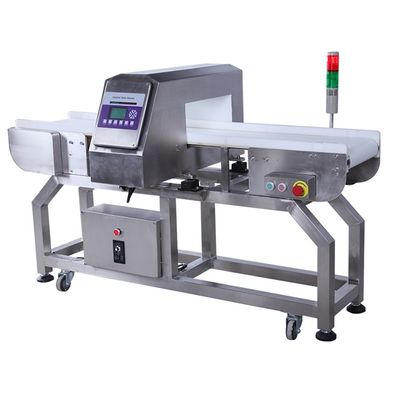

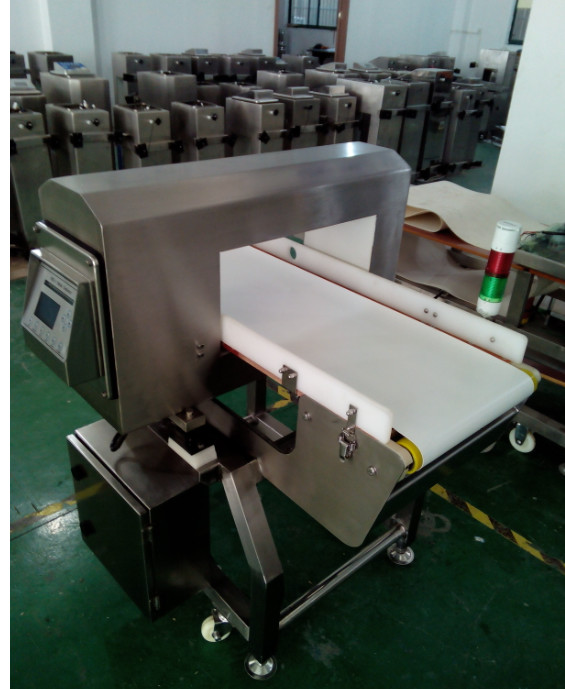

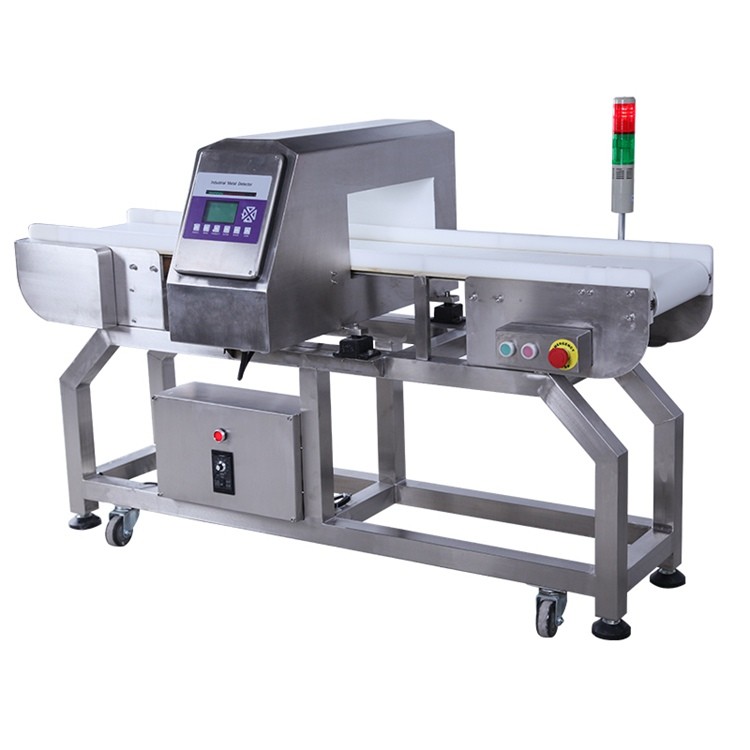

Machine Details

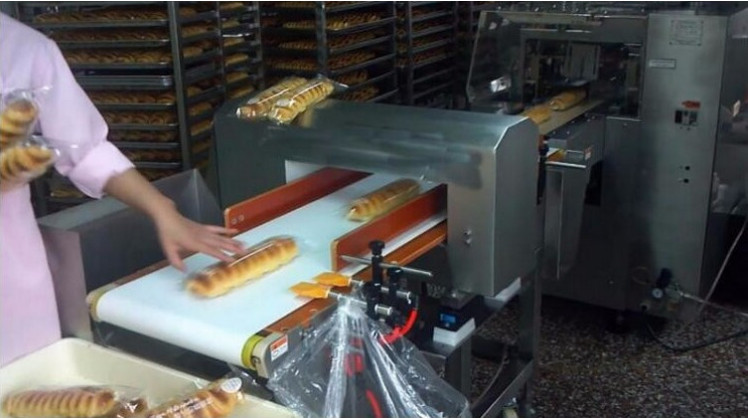

Our Cases
Our Partners
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
