Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DM300 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5500-5700USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Food Grade Metal Detector | Model: | ZH-DM300 |
|---|---|---|---|
| Application: | Chemical, Commodity, Food | Belt Speed: | 25m/min |
| Window Width: | 300mm | Frame Material: | SUS304 |
| Power Supply: | 220V/110V 50/60Hz | Alarm: | Stop Or Rejector |
| Rejector: | Air Blow, Pusher, Shifter | Max Weight: | 5kg |
| High Light: | ZON Food Grade Metal Detectors,SUS304 Food Grade Metal Detectors,300mm metal detector for food packaging |
||
Engineer oversea support candy food metal detector with rejector
Technical Feature
1. Material: stainless steel 304.
2. Screen choice: LCD screen & touch screen. With touch screen, metal detector can store inspection data by USB.
3. High & stable sensitivity, store 100 kinds of products parameters.
4. Operation is easy, with auto-set learning function.
5. Adjustable speed: 0-30m/m, if need higher speed, can customize.
6. Provide customization service, with own engineer service team.
7. Modular components, easy and convenient for replacements.
8. Multi-type rejection system to choose.
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300mm | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||
| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||
Application
Food Security Metal Detector is is mainly used for detecting the metal chips inside the nuts,rice,tea and
wood processing industry etc.
Besides it can also be used for the detection of metallic impurities in chemicals, rubber, plastics, textiles, leather, chemical fiber,
toys as well as for the detection of metallic impurities in pharmaceuticals, health products, biological products, cosmetics, gifts,
packaging, papers, and so on.

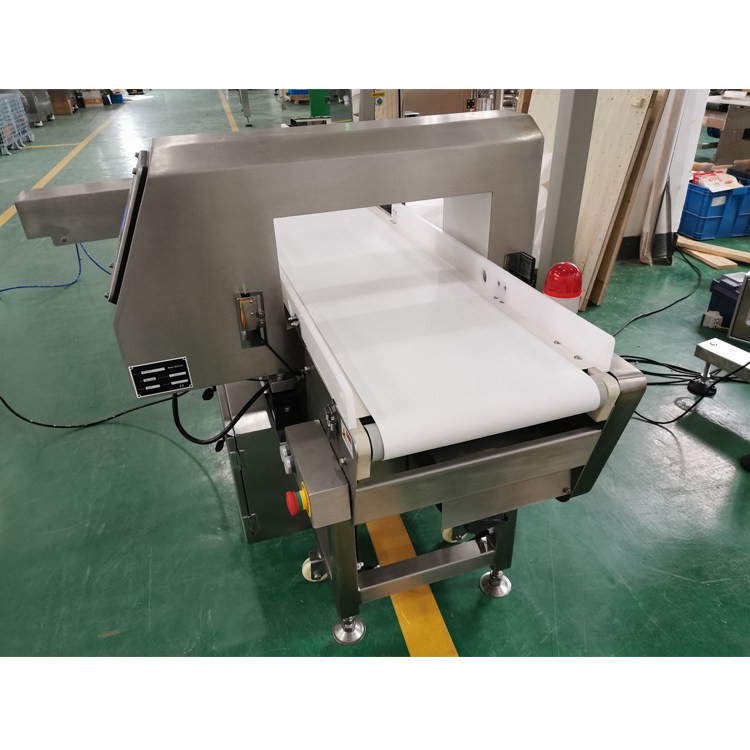

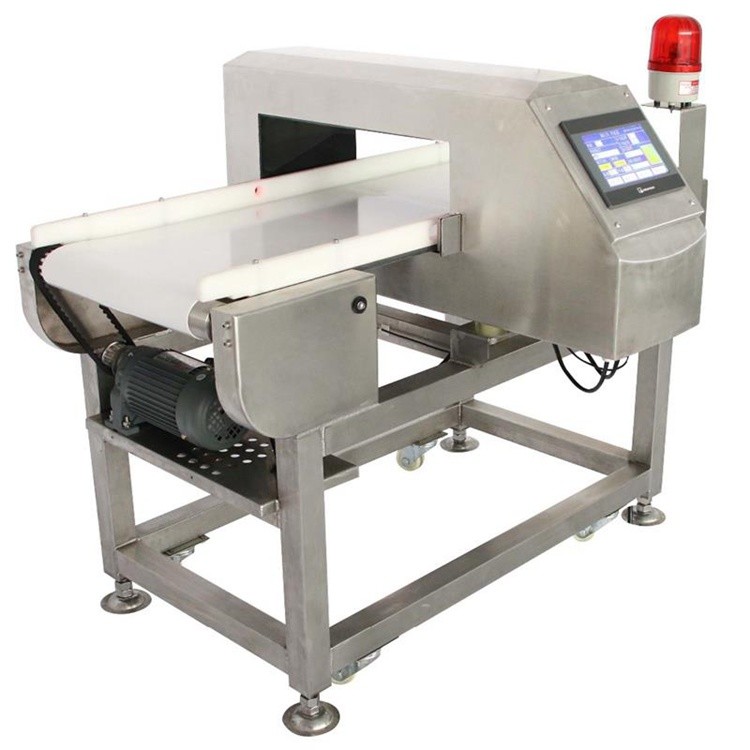

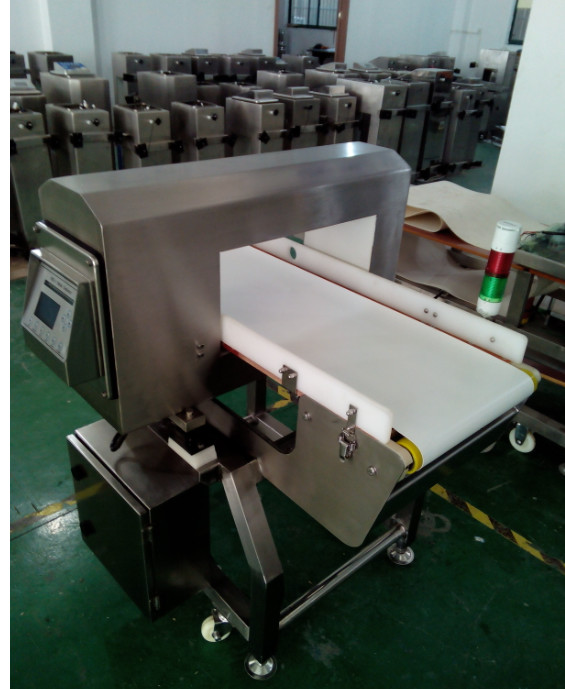

Machine Details

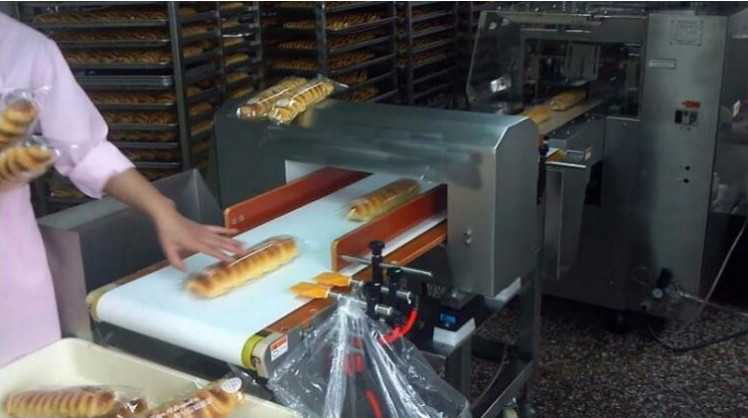

Our Cases
Our Partners
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
