| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DM300 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5500-5700USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Food Grade Metal Detector | Model: | ZH-DM300 |
|---|---|---|---|
| Application: | Chemical, Commodity, Food | Belt Speed: | 25m/min |
| Window Width: | 300mm | Frame Material: | SUS304 |
| Power Supply: | 220V/110V 50/60Hz | Alarm: | Stop Or Rejector |
| Rejector: | Air Blow, Pusher, Shifter | Max Weight: | 5kg |
| High Light: | 300mm Conveyor Belt Metal Detector,25m/min Conveyor Belt Metal Detector,300mm metal detector for food processing industry |
||

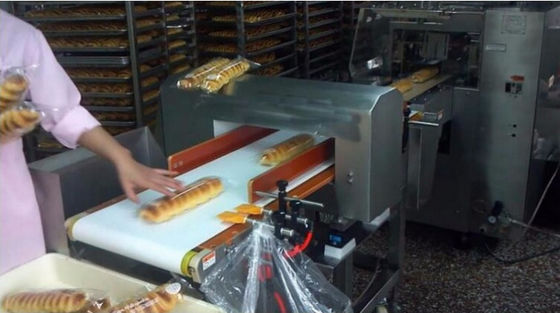

Factory price 300mm belt width metal detector detects biscuits/chocolate
Technical Feature
1. Material: stainless steel 304.
2. Screen choice: LCD screen & touch screen. With touch screen, metal detector can store inspection data by USB.
3. High & stable sensitivity, store 100 kinds of products parameters.
4. Operation is easy, with auto-set learning function.
5. Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen.
6. Machine made of stainless steel, anti-corrosion, no rust, easy to clean.
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300mm | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||
| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||
Application
It is widely used for food, pharmaceutical,chemical,textile,clothes,toys,rubber etc. It is the first choice for HACCP
of food industry and GMP of pharmaceutical industry, specially suitable for flour made food, vegetable food, frozen food,
sugar made food, pickles,etc.
