Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-CS2 |
| Minimum Order Quantity: | 1 Set |
| Price: | 2500-3000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 299 Sets per month |
| Name: | Screw Conveyor | Charging Capacity: | 2-12m3/h |
|---|---|---|---|
| Diameter Of Pipe: | Ø102-Ø219 | Hopper Volume: | 100L/200L |
| Charging Height: | Standard 1.85M, 1-5M Could Be Designed And Manufactured. | Charging Angle: | Standard 45degree,30-60 Degree Are Also Available. |
| Power Supply: | 3P AC208-415V 50/60Hz | Frame Material: | SUS304 |
| High Light: | SUS304 Food Grade Conveyor,2m3/h Food Grade Conveyor,1.85M inclined screw conveyor with hopper |
||

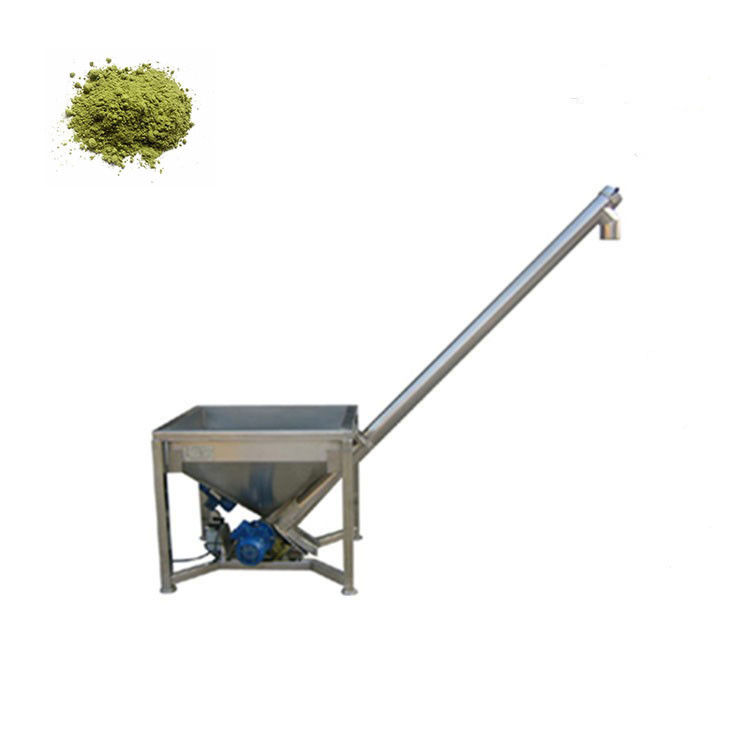

high speed 304SS inclined screw conveyor with hopper for powder conveying
Technical Feature
1. Vibrating screw feeding conveyor is composed of double motor, feeding motor, vibrating motor
and with respective control.
2. Hopper with vibrator makes material to flow easily, and the size of hopper can be customized.
3. Hopper is separated from twisting shaft and with reasonable structure and easily loading and unloading.
4. Hopper with dustproof structure and all the material is made of SS304 except for motor, which won't be polluted
by the dust and powder.
5. Product releasing with reasonable structure that is easy for scrapped materials and tailing removing.
Machine Specificatin
|
Model
|
ZH-CS2
|
|||||
|
Charging Capacity
|
2m3/h
|
3m3/h
|
5m3/h
|
7m3/h
|
8m3/h
|
12m3/h
|
|
Diameter of pipe
|
Ø102
|
Ø114
|
Ø141
|
Ø159
|
Ø168
|
Ø219
|
|
Hopper Volume
|
100L
|
200L
|
200L
|
200L
|
200L
|
200L
|
|
Total Power
|
0.78KW
|
1.53KW
|
2.23KW
|
3.03KW
|
4.03KW
|
2.23KW
|
|
Total Weight
|
100kg
|
130kg
|
170kg
|
200kg
|
220kg
|
270kg
|
|
Hopper Dimensions
|
720x620x800mm
|
1023 ×820×900mm
|
||||
|
Charging Height
|
Standard 1.85M, 1-5M could be designed and manufactured.
|
|||||
|
Charging angle
|
Standard 45degree,30-60 degree are also available.
|
|||||
|
Power Supply
|
3P AC208-415V 50/60Hz
|
|||||
Machine Application:
ZH-CS2 screw conveyor is developed for conveying powder product, such as milk powder, rice powder,
sugar, gourmet powder, amylaceum powder, washing powder, spices, etc.

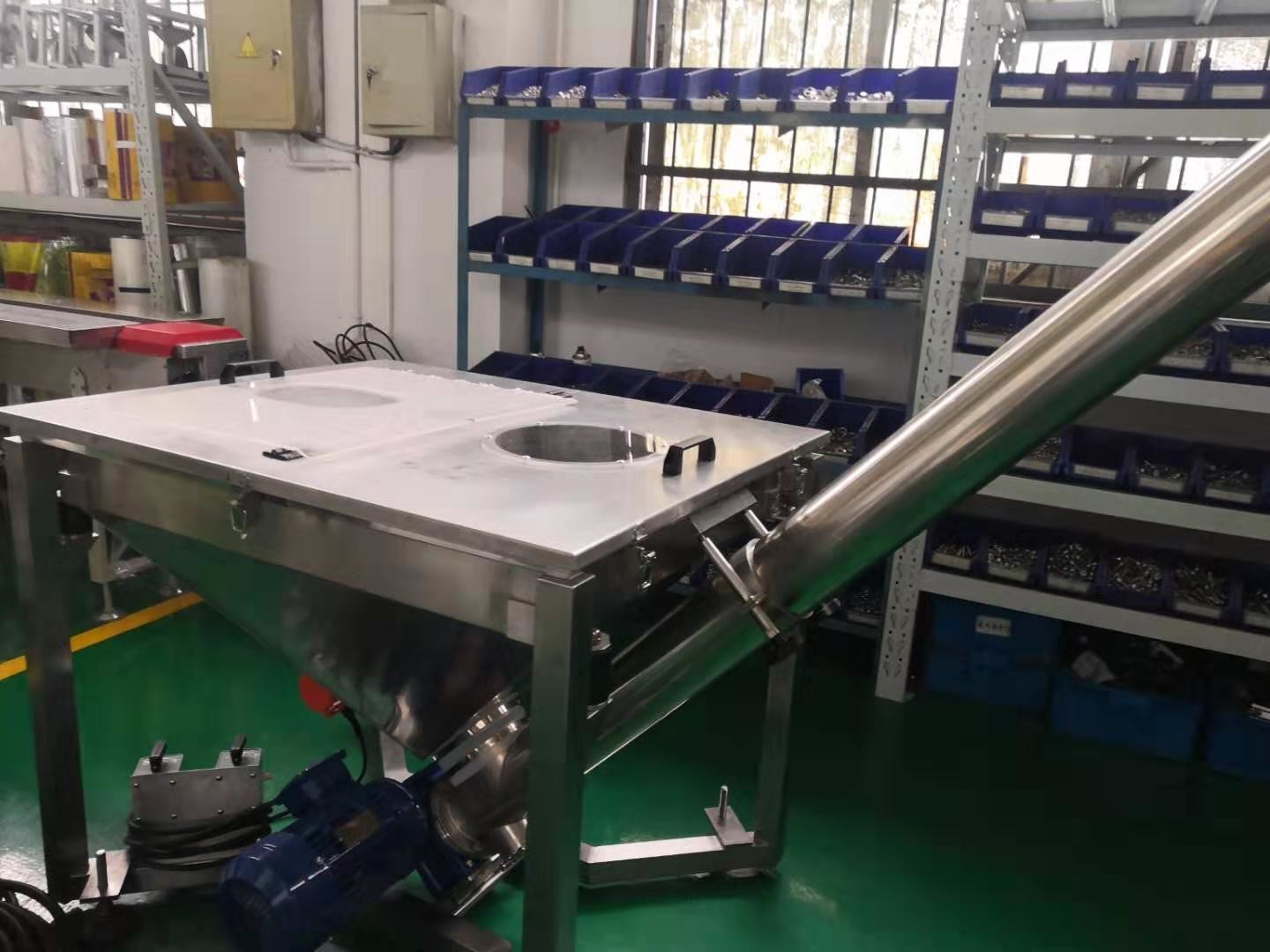

Machine Details:

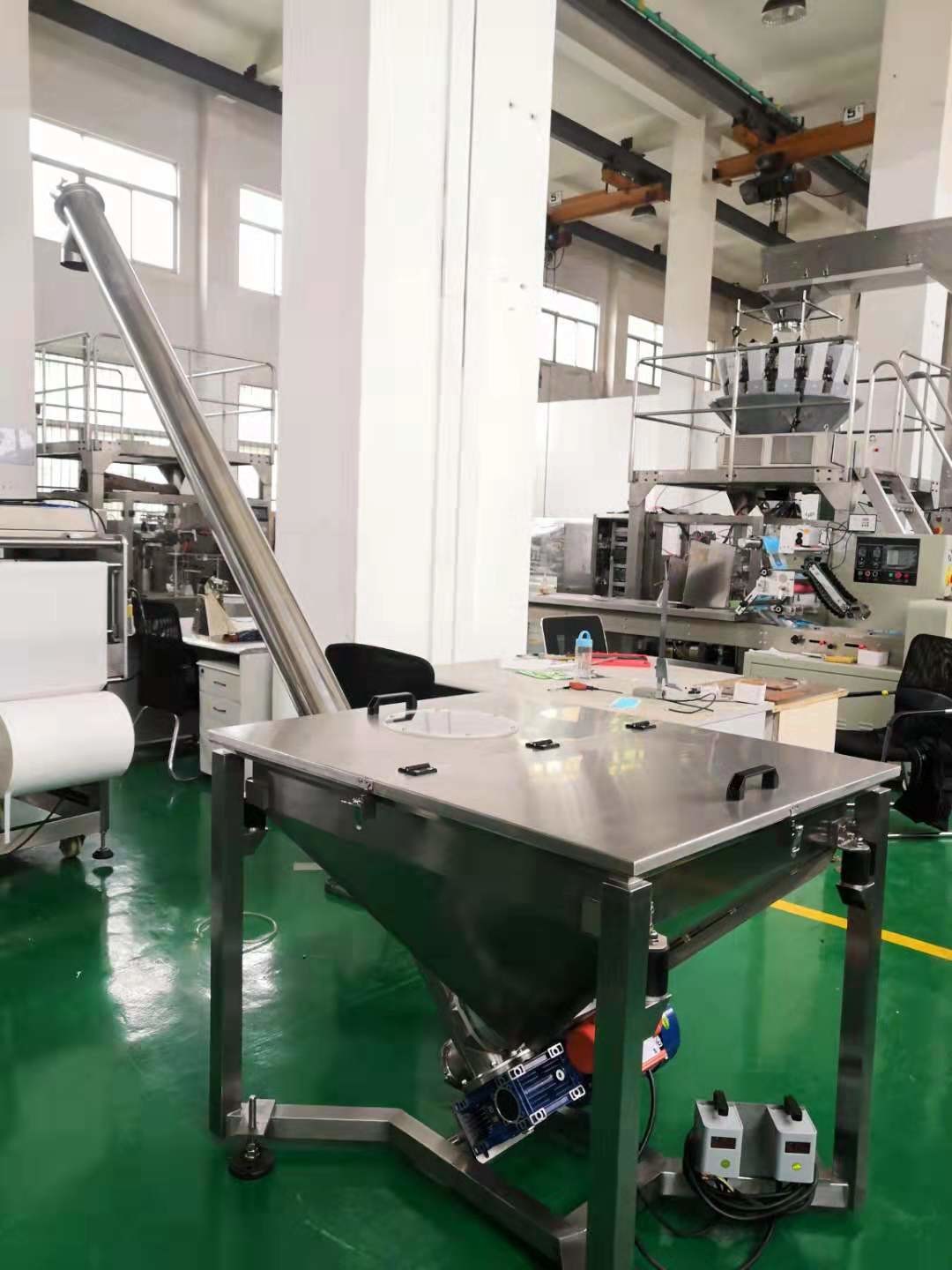

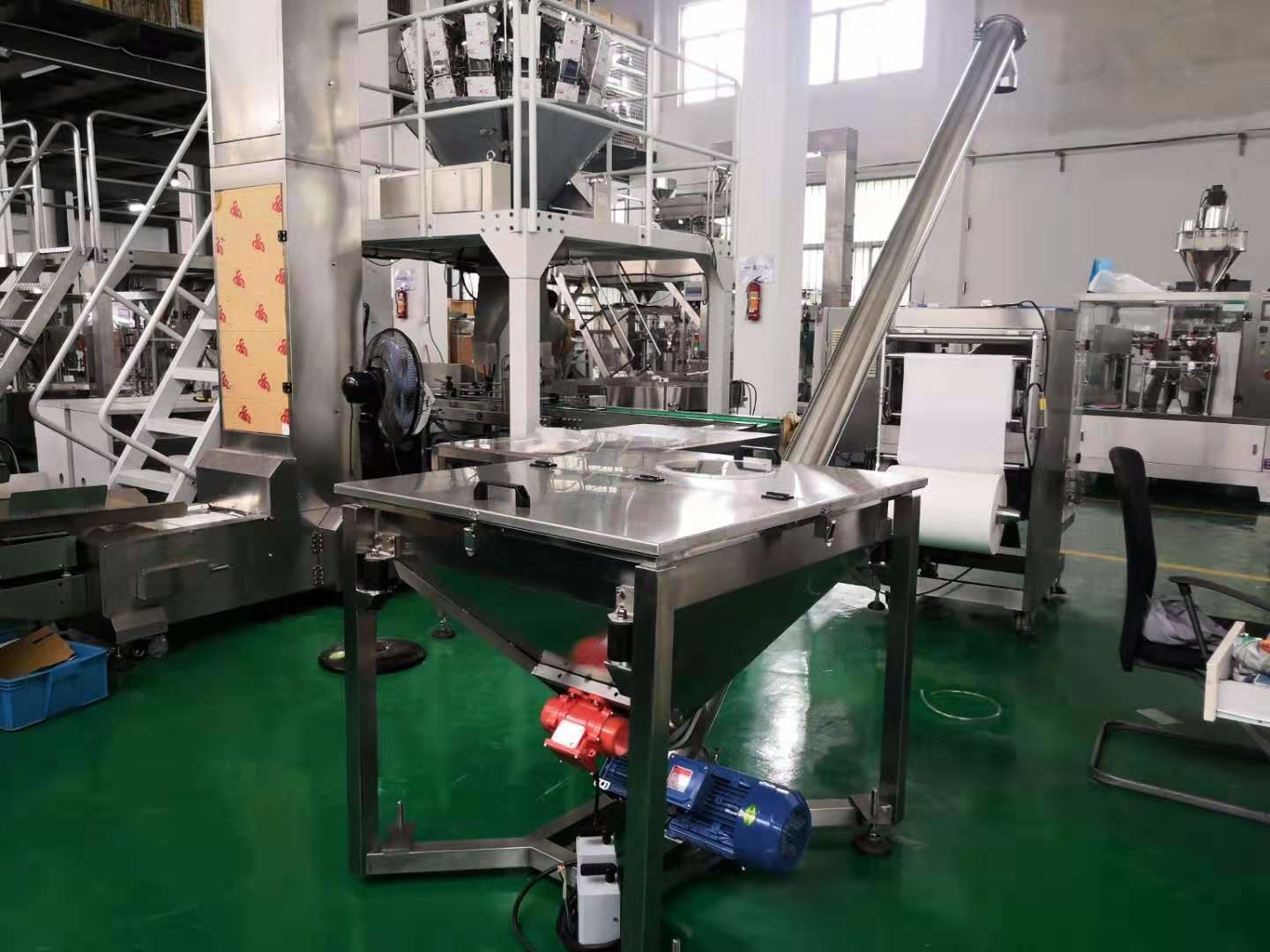

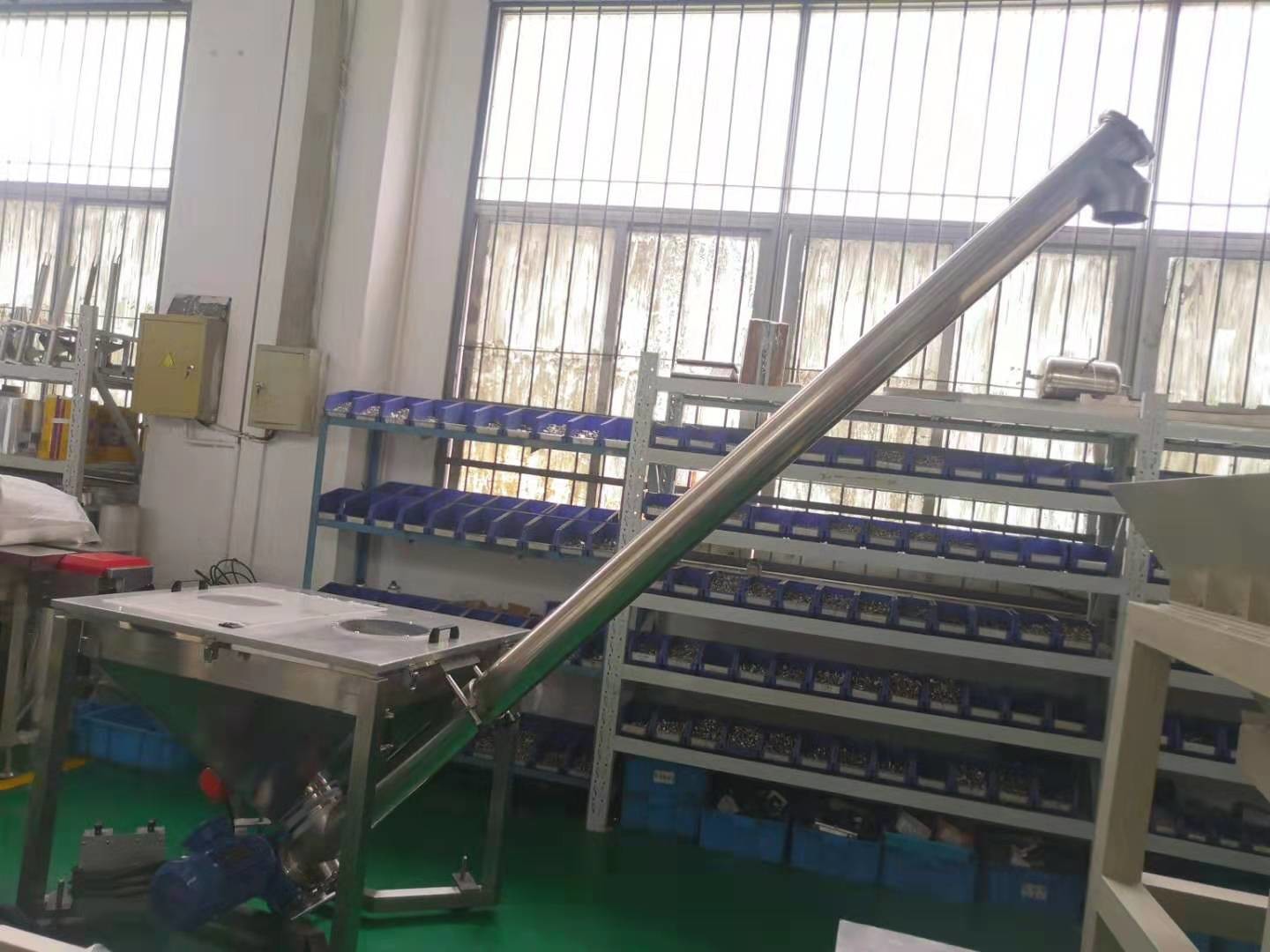

Case Shows
