Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | zhejiang，china |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 set |
| Price: | USD+22000-28000+Sets |
| Packaging Details: | wooden case |
| Delivery Time: | 25-90 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 199+sets+per |
| Type: | Multi-Function Packaging Machine | Function: | FILLING, Sealing, Weighing |
|---|---|---|---|
| Packaging Type: | Film, Pouch, Stand-up Pouch | Automatic Grade: | Automatic |
| Voltage: | 220V 50/60Hz | Weighing Range: | 10-2000g |
| Accuracy: | ±0.1-1.5g | Speed: | 30-60bags/min |
| Bag Type: | Pillow Bag,gusset Bag | Dimension(L*W*H): | 3000x2000x3600 |
| High Light: | MultiHead Weigher Puffed Rice Packing Machine,60bags/min Puffed Rice Packing Machine,2000g Multihead Weigher Packing Machine |
||
Automatic Multi Head Weigher Puffed Rice Potato Chips Pouch Packing Machine
Multi-language VFFS collar type popcorn bagging machine/ chips pouch packing machine
Technical Feature
1. Sevro motor driving system is adopted in the packaging machine.
2. To ensure the same length of each bag, high sensitive electro-optical sensor system is provide to the
realize automatic a lignment on the packing film.
3. The packaing machine is equuipped with a computer control system.
4. We have installed constant temperture heating system ensuring stable temperture and keep temperature is +/-1°c.
5. The electroic and pneumatic components of the machine are all supplied by reliable supplier copperating with us for
several years, which can ensure the quality of machine and save the cost of purchese meantime.
6. The bag size and packaging number can be customized by customers.
| Technical Specification | |
| Model | ZH-BL10 puffed food packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET;PE film |
| Range of measuring (g) | 5-5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) |
VFFS 320: (W) 60-150 (L)50-200 VFFS720: (W) 120-350 (L)100-450 |
| Multihead weigher model | 10 heads 14 heads 20 heads weigher |

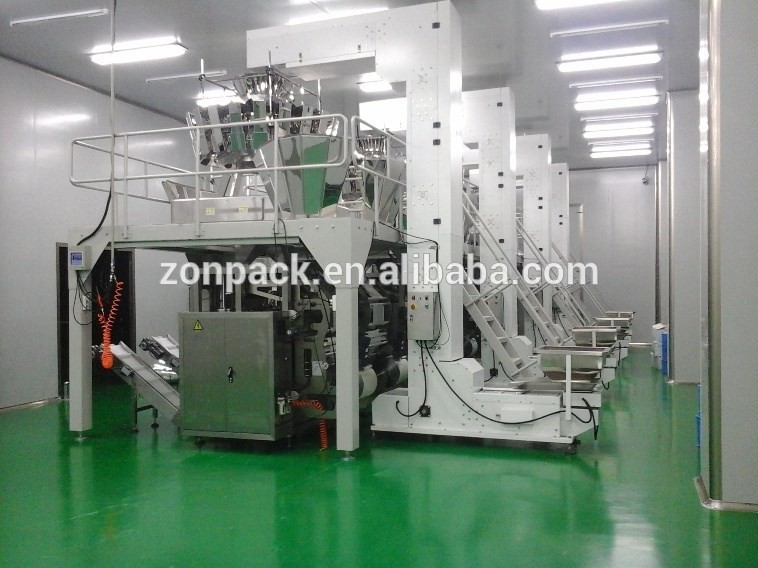

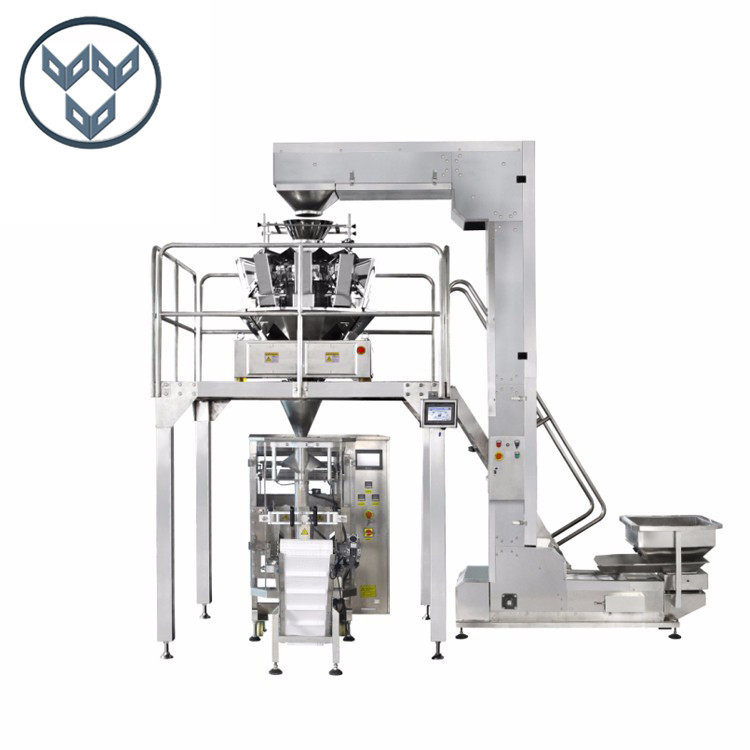

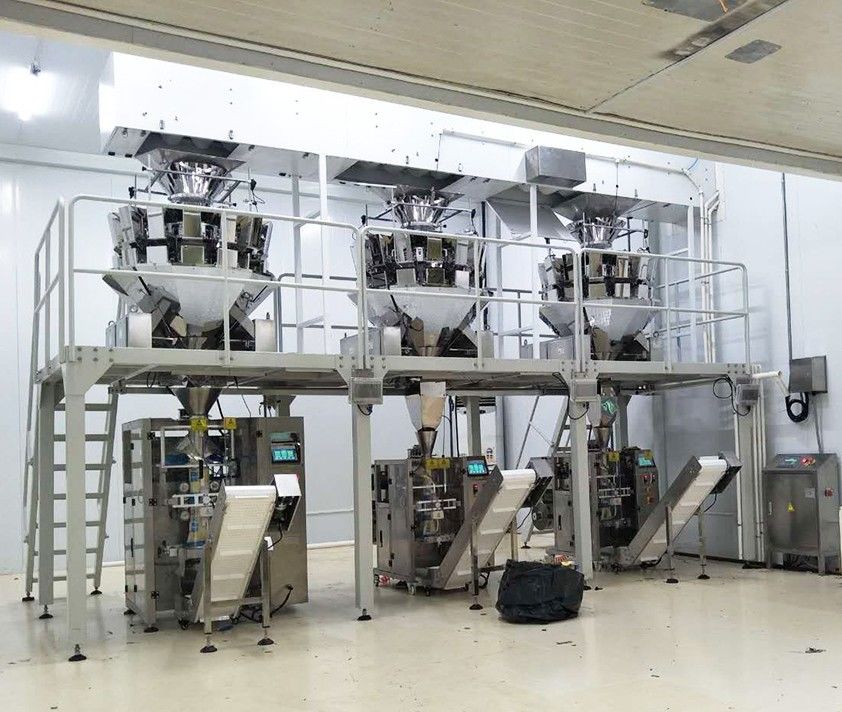

Whole packing line:
1. Infeed bucket conveyor:
Feeds the products to the elevator and transport them to multi-head weigher

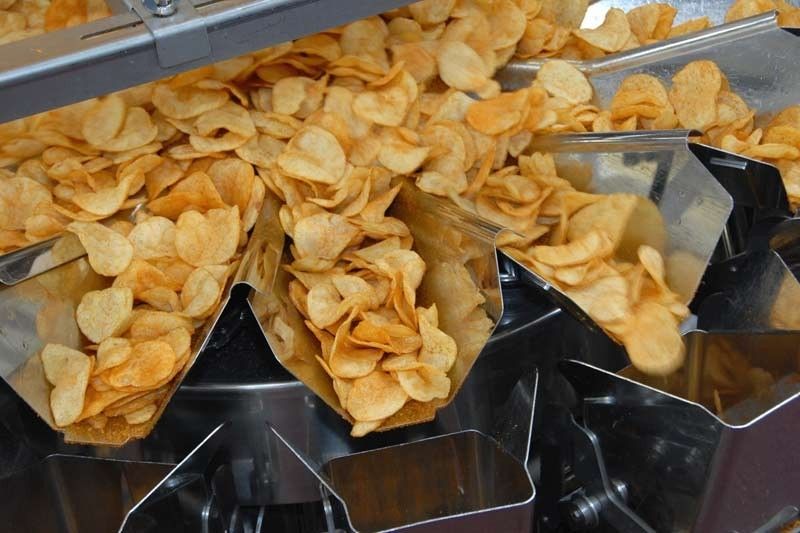

2. Multihead weigher:
Weighing and filling materials to packing machine
3. Working platform:
Support multihead weigher.

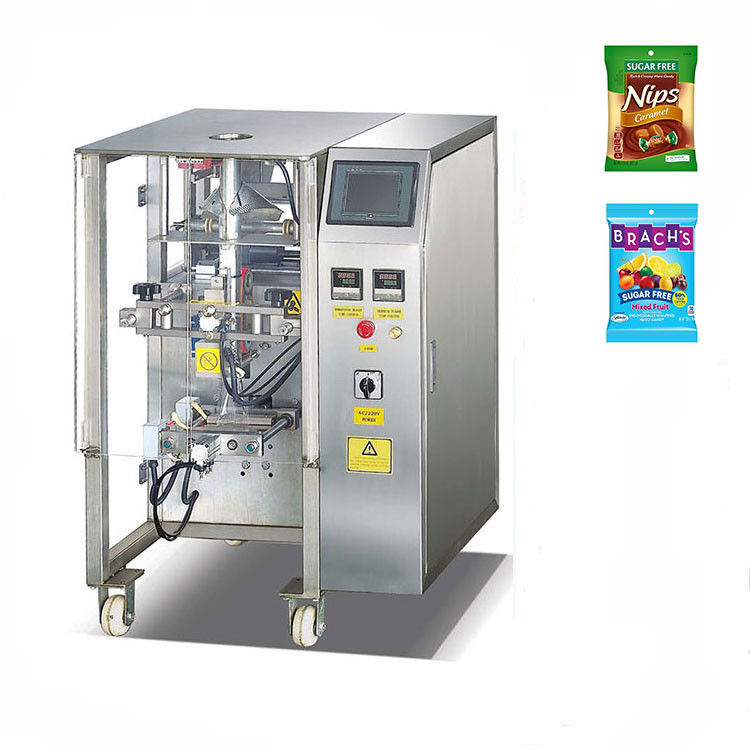

4. Vertical packing machine:
Pack the product with high speed, and date printed, sealing-off and bag cutting is completed automatically.
5. Finishe bag conveyor:
Convey the finished bag to rotary table.
6. Rotary table:
For finished bag collecting.
Application of Machine
It’s suitable to use in packing the high accuracy and easy fragile material ,such as:puffy food.crispy rice,jelly,
candy,pistachio, apple slices,dumpling,chocolate , pet food,small hardware,Medicine,etc.
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
