Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | Zhejiang，China |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE |
| Model Number: | ZH-V520 |
| Minimum Order Quantity: | 1 set |
| Price: | USD+10200 per set |
| Packaging Details: | wooden case |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10+sets+per month |
| Type: | Multi-Function Packaging Machine | Function: | FILLING, Sealing, Wrapping |
|---|---|---|---|
| Automatic Grade: | Automatic | Packing Speed: | 10-70 Bags / Min |
| Dimension(L*W*H): | 1130L*800W*1400H | Core Components: | Motor, Pressure Vessel, PLC, Gear, Gearbox |

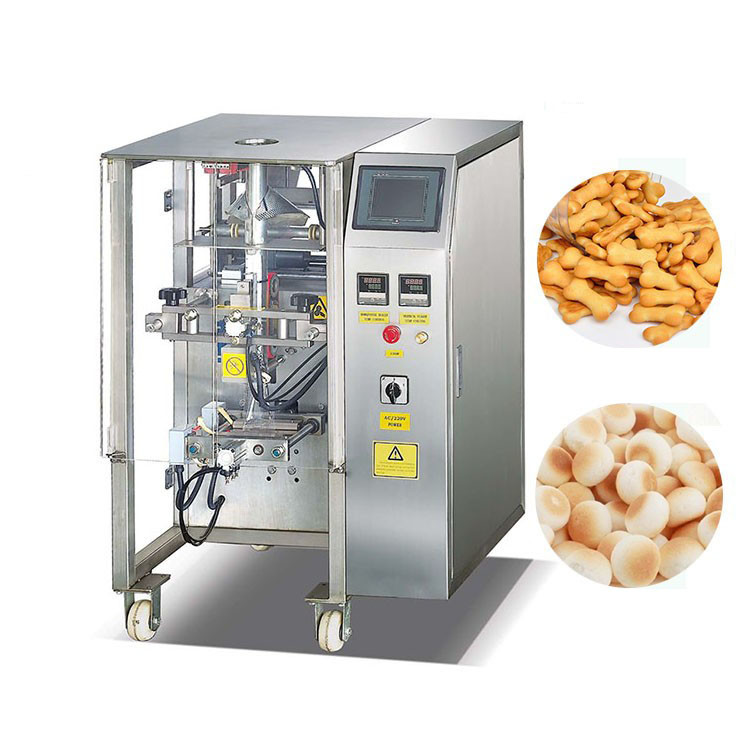

| Name: | ZH-V520 Vertical Packing Machine | Max Film Width: | 520mm |
| Gross Weight (kg): | 650 | Packaging Material: | Paper, Plastic, Other |
| High Light: | Sealing Automatic Granule Packing Machine,60Bags/Min Automatic Packaging Machine,Filling Automatic Granule Packing Machine |
||
ZH-V520 High-Speed Vertical Form Fill Seal Banana Chips/Potato Chips/Plantain Chips Automatic Packaging Machine
Vffs Snack Grains Dry Food Dried Fruits Vegetables Packaging Machine for Chilli Spices Packing Machine
I. Application of ZH-V520 Vertical Packing Machine
It is suitable for packing grain, stick, slice, globose, irregular shape products such as candy, chocolate, nuts, pistachio, pasta, coffee bean, cereals, pet food, roasted seeds, frozen food, small hardware, etc.
II. Technical Feature
1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.

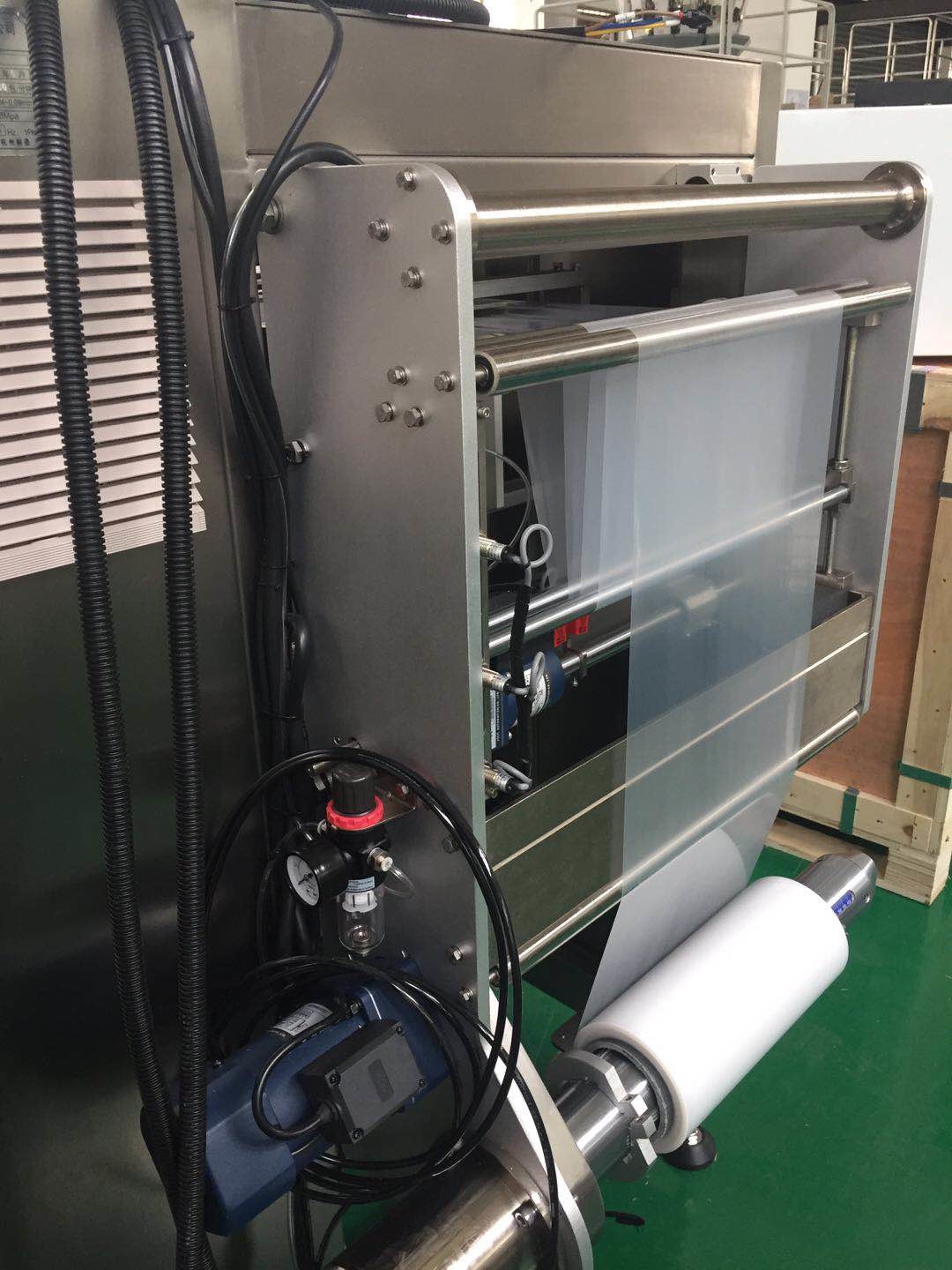

3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
5. Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.
6. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.
III. Technical Specification
| Model | ZH-V520 |
| Packing speed | 25-60Bags/Min |
| Bag size(mm) |
W:90-250mm L:80-350mm |
| Bag making mode | Pillow bag, standing bag (gusseted), Punching bag Connecting bag |
| Max film width (mm) | 520 |
| Thickness of film (mm) | 0.04-0.09mm |
| Air consumption | 0.4m3/min 0.8MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE ,NY/PE, PET/ PET. |
| Power Parameter | 220V50/60Hz 3KW |
| Dimension(mm) | 1430(L)×1200(W)×1700(H) |
| Gross Weight(kg) | 650 |
Our service :
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
