Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-BL10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 22000-28000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 Working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 199 Set per month |
| Name: | Automatic Food Packing Machine | Bag Type: | Pillow Bag, Gusset Bag , Punching Bag, Connecting Bag |
|---|---|---|---|
| Packing Material: | Laminated Film ,PE Film | Function: | Filling ,Weighing,Sealing |
| Packing Speed: | 30-70bag/min,depends On Your Product | Bag Width: | 60-200mm |
| Bag Length: | 60-300mm | Maximum Film Width: | 420mm |
| Voltage: | 220V | ||
| High Light: | 420mm Width Automatic Food Packing Machine,14Head Automatic Food Packing Machine,PLC controlled VFFS Packing Machine |
||
Professional Manufacturer Automatic 14 Head Weigher 420mm VFFS Food Packing Machine
Technical Feature
1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bagmaking, measuring,
filling, printing, cutting, be finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Can make hole punching device according to customer's request.
4. This machine has stainless steel type and carbon steel type for choice.
| Technical Specification | |
| Model | ZH-BL10 packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |
| Packing Accuracy | ±0.1-1.5g |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
| Range of measuring (g) | 5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 420: (W) 60-200 (L)60-300 |
Application of Machine
It is suitable for a wide rang of products both granule and powder, such as sugar, rice, candy, milk powder,
frozen food, snack, chips, etc.

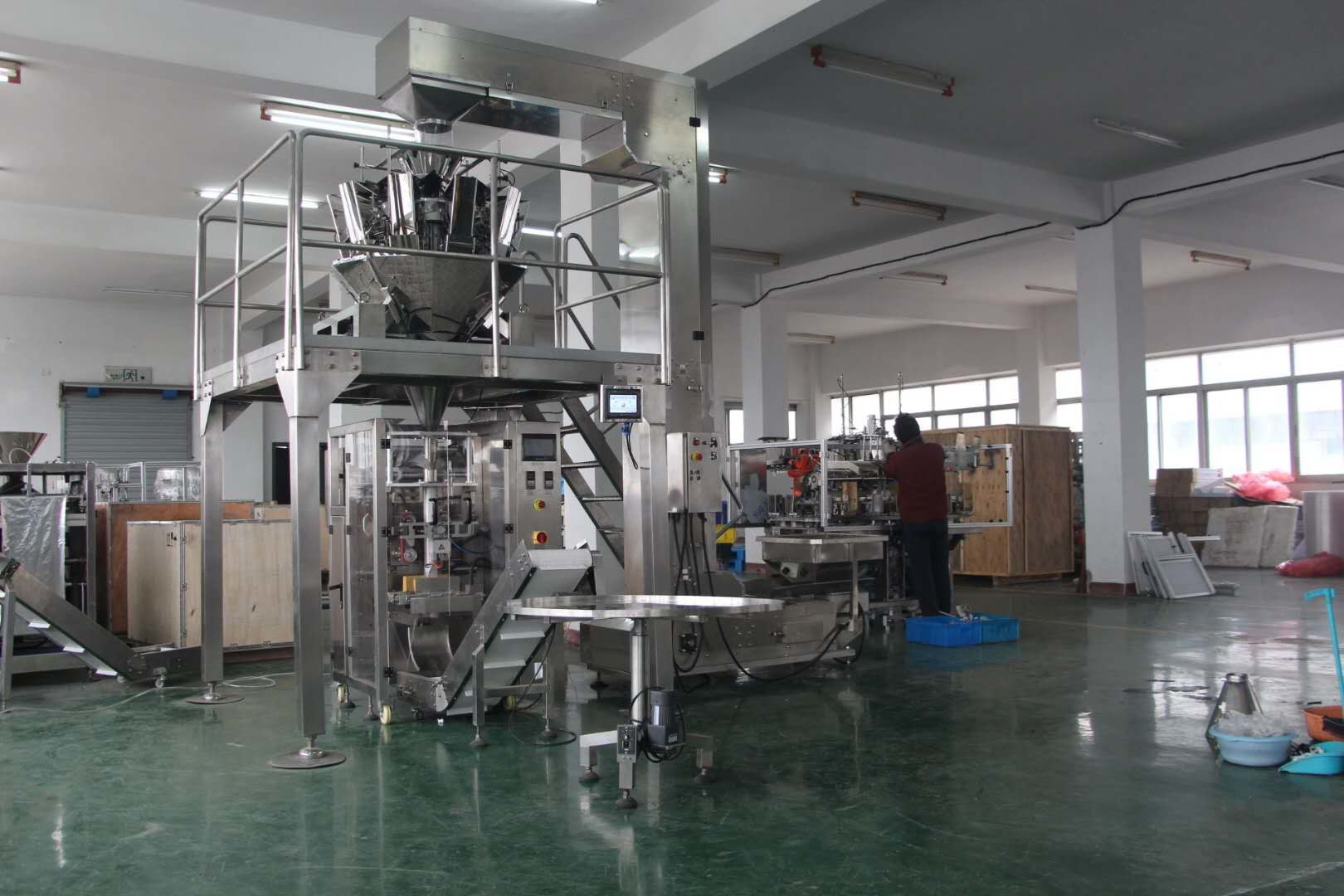

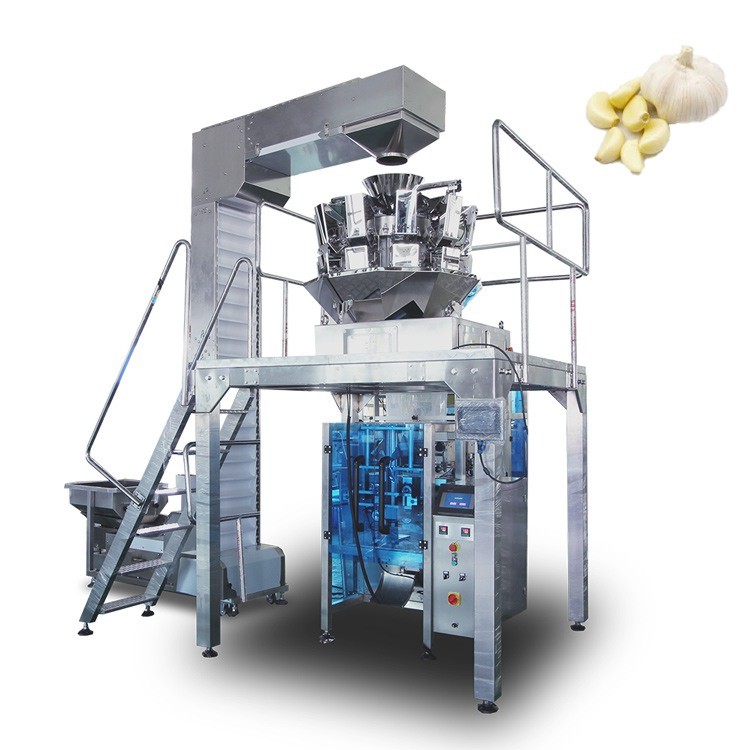

System Construction
1. Infeed bucket conveyor:
Raise material to multihead weigher which controls the start and stop of the hoister.
2. 10 heads multi weigher:
For product weighing.
3. Working platform:
Support multi weigher.

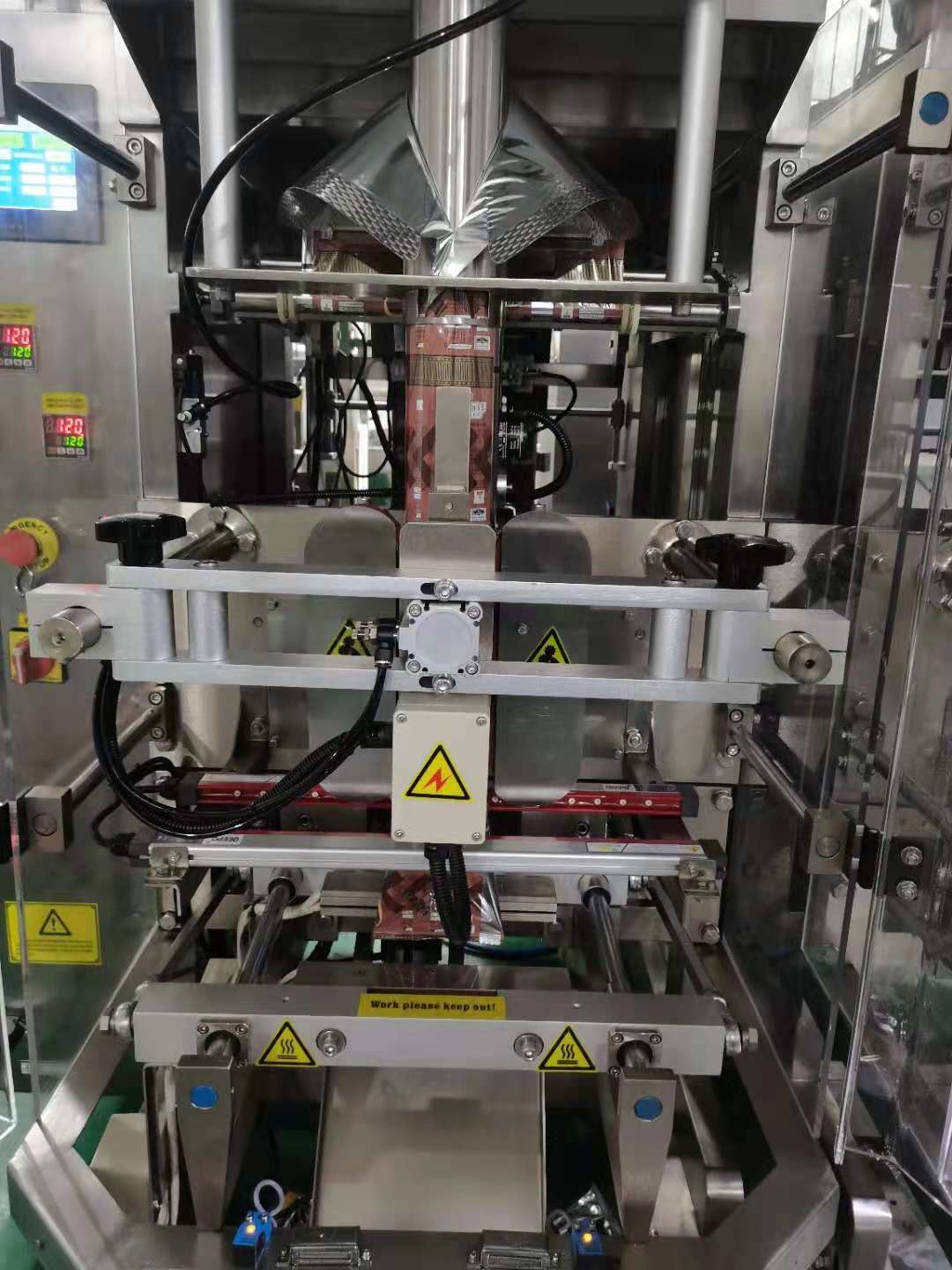

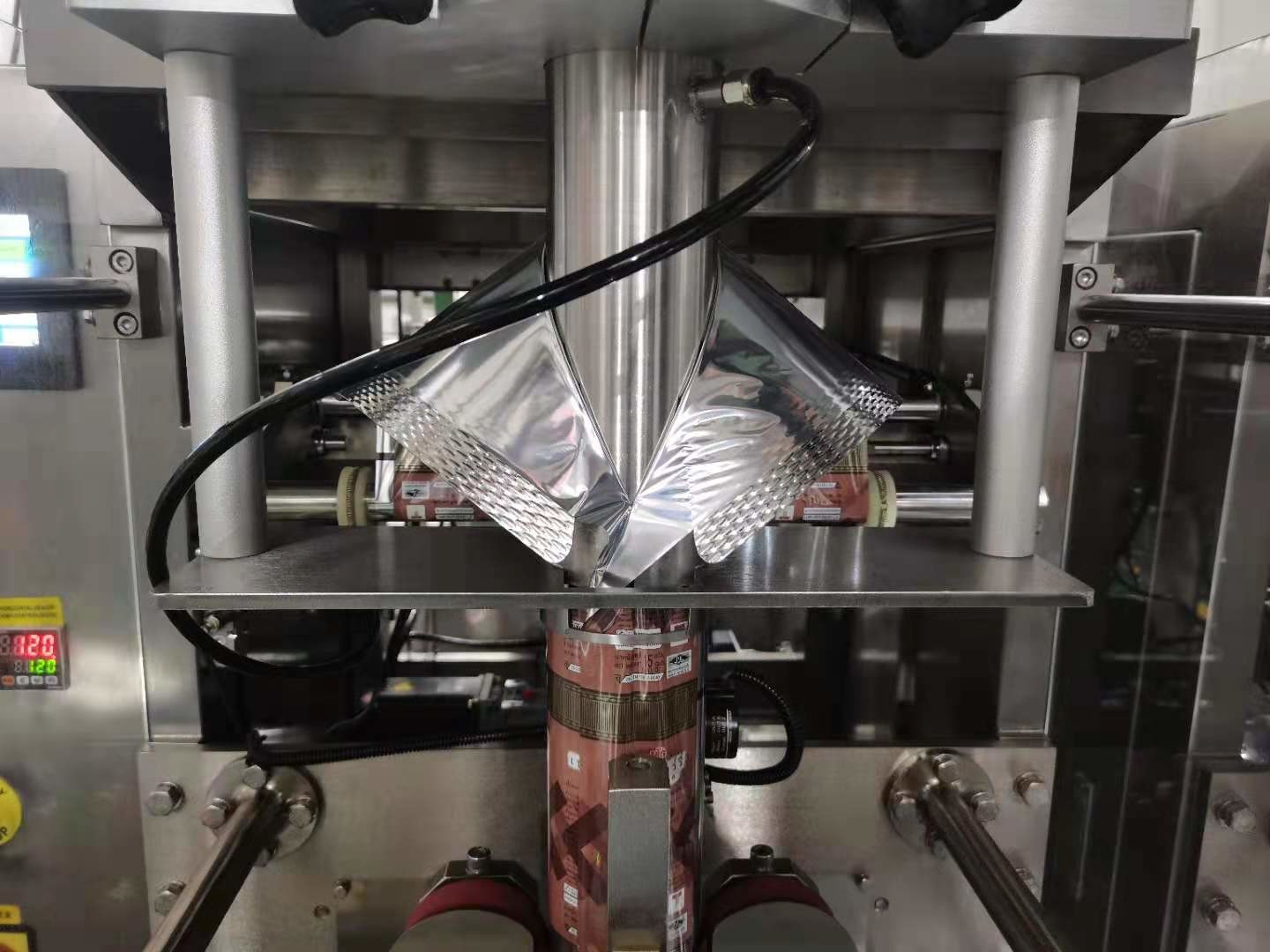

4. Vertical packing machine:
Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.
5. Product conveyor:
Convey the finished bag to next step.
6. Rotary table:
For finished bag collecting.
The Bag type:
Our cases:
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
