Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE CERTIFICATE |
| Model Number: | ZH-ZXGZ-01 |
| Minimum Order Quantity: | 1set |
| Price: | US$20,000 ~ 40,000 per set |
| Packaging Details: | wood case |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets per month |
| Type: | Multi-Function Packaging Machine | Application: | Food,Chemical,Machinery & Hardware |
|---|---|---|---|
| Certification: | CE,ISO9001 | Voltage: | 220V/380V |
| Automatic Grade: | Automatic | Condition: | New |
| Driven Type: | Electric | Packaging Type: | Cans |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Function: | Filling,Sealing,Wrapping,Labeling |
| Power: | 2KW | Packing Speed: | 25-40PCS/Min |
| Warranty: | 1 Year | Main Function: | Weighing And Filling |
| High Light: | Laundry Detergent Pods Filling Packing Machine,45pcs/min Filling Packing Machine,Multihead Weigher Filling Packing Machine |
||

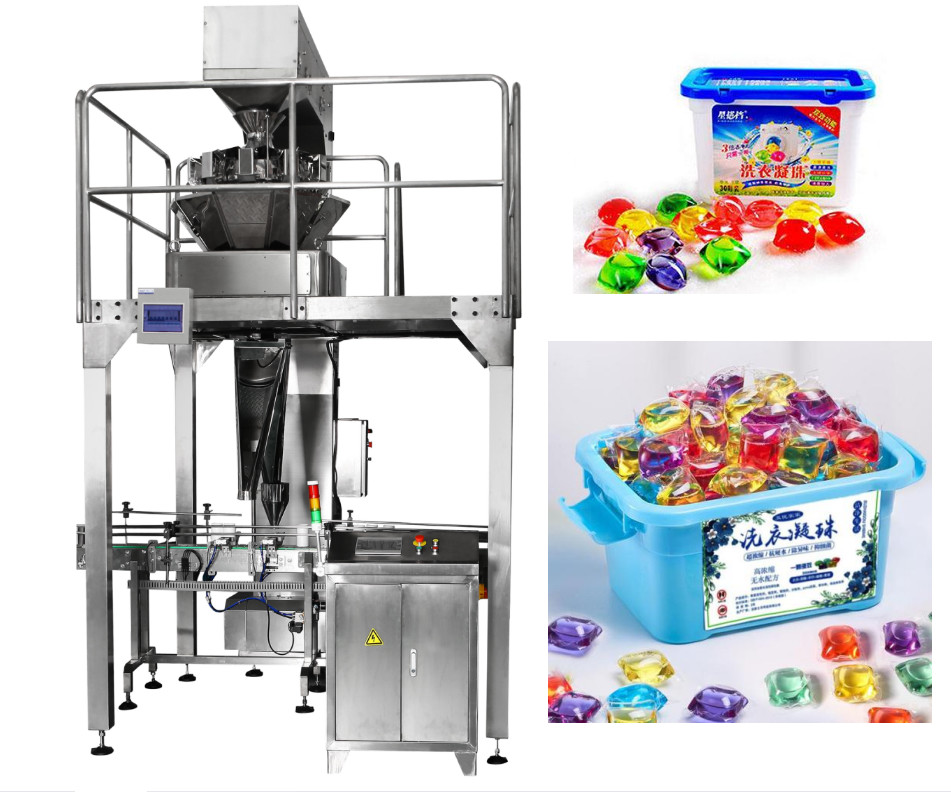

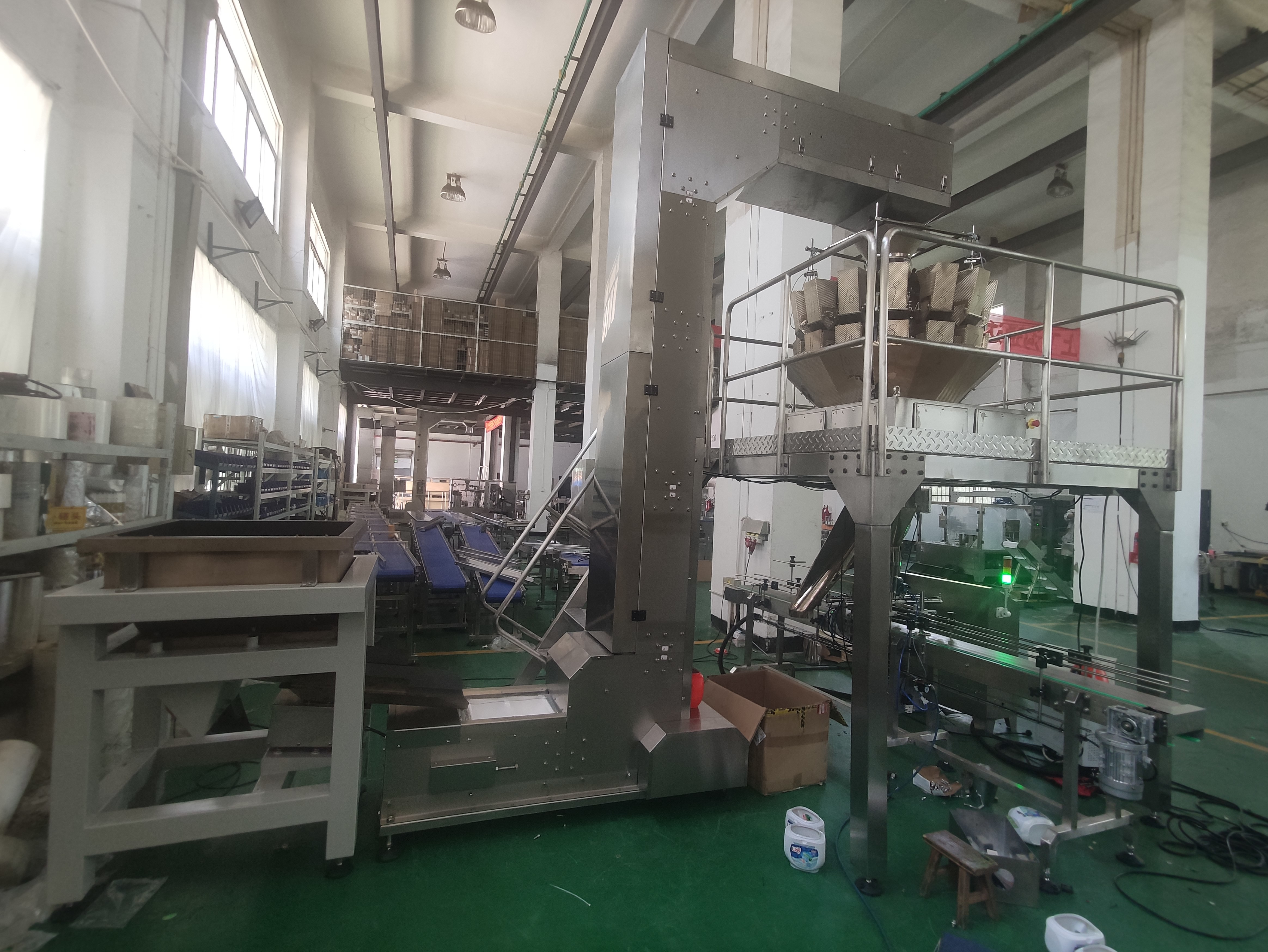

Automatic 304SS laundry detergent pods weighing and filling packing machine with multihead weigher
Speed: up to 45pcs/min
Accuracy: ±0.5~1.5g

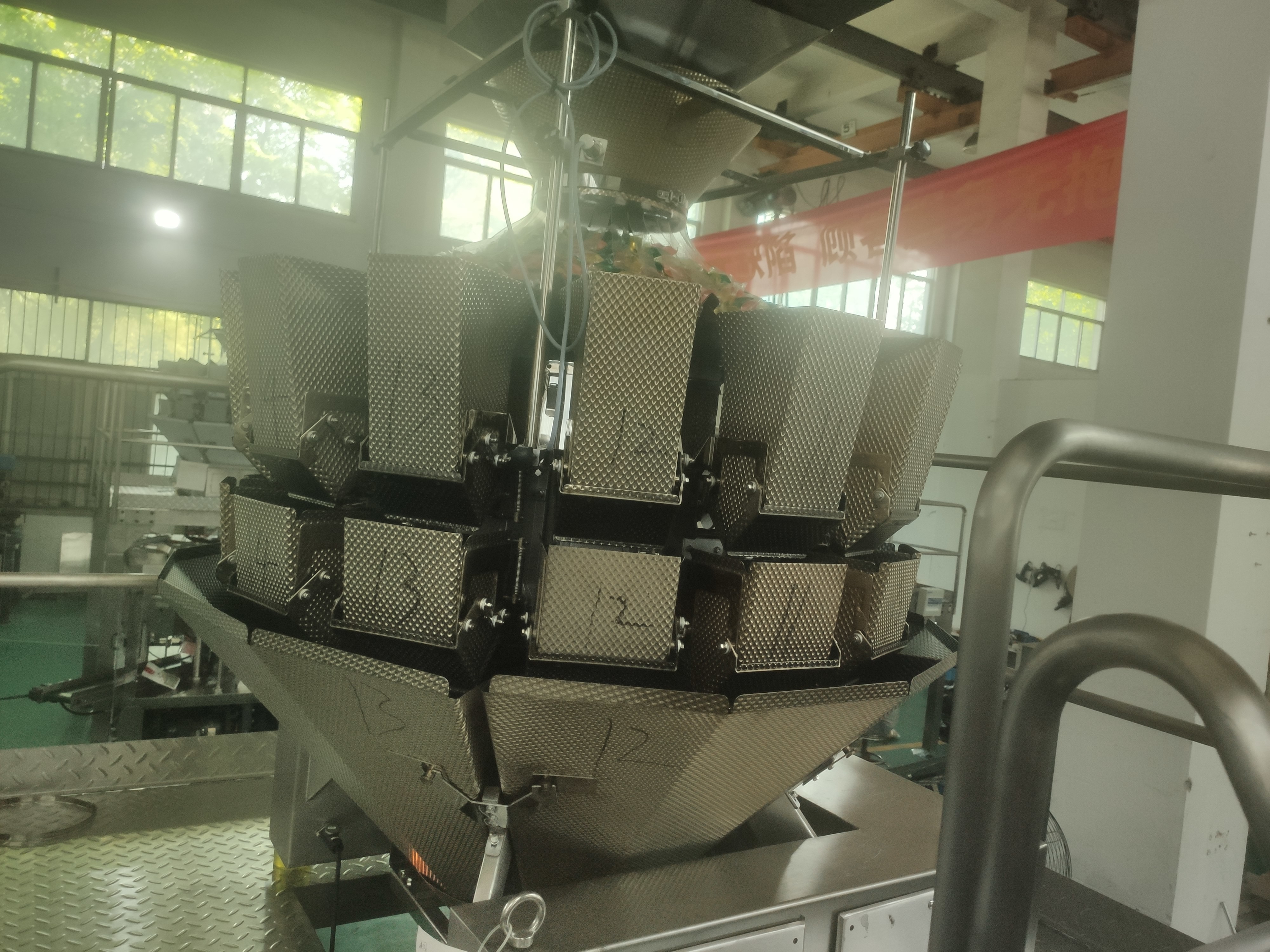

MULTIHEAD WEIGHER
PURPOSE: WEIGH TARGET WEIGHT AUTOMATICALLY
SPECIFICATION AND OPTIONS
1. Weigher heads: 10/14/24/32
2. Weigh Speed: 65~130 times/min
3. Once Weighing Range: 5~3000g
4. Accuracy: ±0.1-1.5g
5. Frame material: 304SS
6. Hopper volume: 0.5L/1.6L/2.5L/5L
7. HMI Size: 7" or 10"
8. Driver Method: stepper motor
9. Timming hopper: optional
10. Surface: plate/dimple/teflon coated
LINE FILLING MACHINE
PURPOSE: CONVEYOR PACKAGE SUCH AS BOTTLE/ CAN/ BUCKET/ BOX
SPECIFICATION AND OPTIONS
1. Frame material: 304SS
2. Type: chain type / belt type
3. Material: PP/ PVC/ food grade PU
4. Color: white/ bule
5. Length: customizable
6. Width and height: adjustable
7. Motor drive
INFEED BUCKET CONVEYOR
PURPOSE: CONVEYOR MATERIAL
SPECIFICATION AND OPTIONS
1. Type: Plate / Segment
2. Frame material: 304SS / Carbon steel
3. Vibration hopper volume: 72L/ 112L/ 342L
4. Vibration hopper dimension: customizable
5. Conveyor dimension: customizable
6. Individual hopper material: PP / 304SS
7. Individual hopper volume: 0.8/1.8/4/10L
8. Waterproof Vibration: optional
9. Control method: VFD
PLATFORM
PURPOSE: SUPPORT WEIGHER
SPECIFICATION AND OPTIONS
1. Frame Material: 304SS/ Carbon steel
2. With ladder and rail
3. Dimension: customizable
