Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Zon Pack |
| Certification: | CE |
| Model Number: | ZH-V420 |
| Minimum Order Quantity: | 1Sets |
| Price: | USD5000-10000/SET |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 30-40days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union ,MoneyGram |
| Supply Ability: | 99sets/month |
| Machine Name: | Vertical Packing Machine | Packing Speed: | 25-70bags/min |
|---|---|---|---|
| Max Film Width: | 420mm | Film Thickness: | 0.04-0.09mm |
| Bag Material: | PE,PET | Bag Type: | Pillow Bag,Gusseted Bag, Punching Bag,Connecting Bag |
| Machine Control: | PLC | ||
| High Light: | 420mm Film Width Pouch Packing Machine,Peanuts Pouch Packing Machine,PLC Pouch Packing Machine |
||

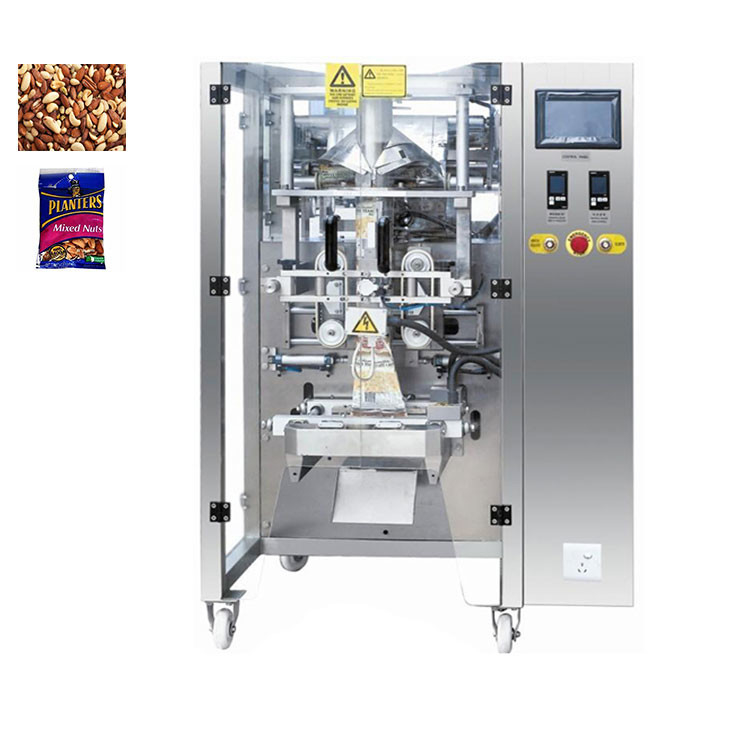

420mm Film Width Vertical Form Fill Seal Peanuts Pouch Packing Machine With PLC
Application:
It is suitable for packing grain, corn, rice,slice, irregular shape products such as puffy food, snacks, candy, chocolate, nuts, pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, frozen food, small hardware, etc.
Technical Feature

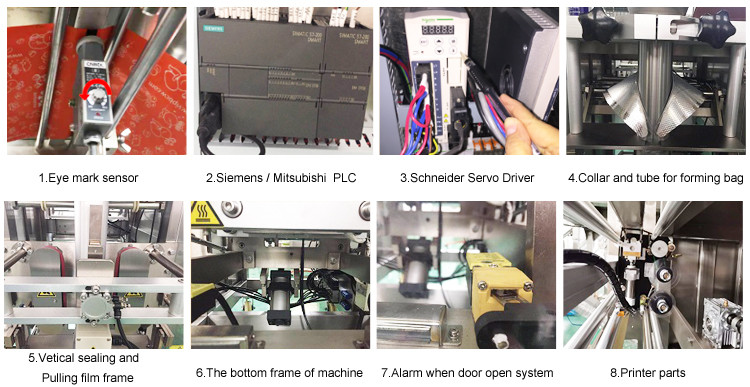

1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.

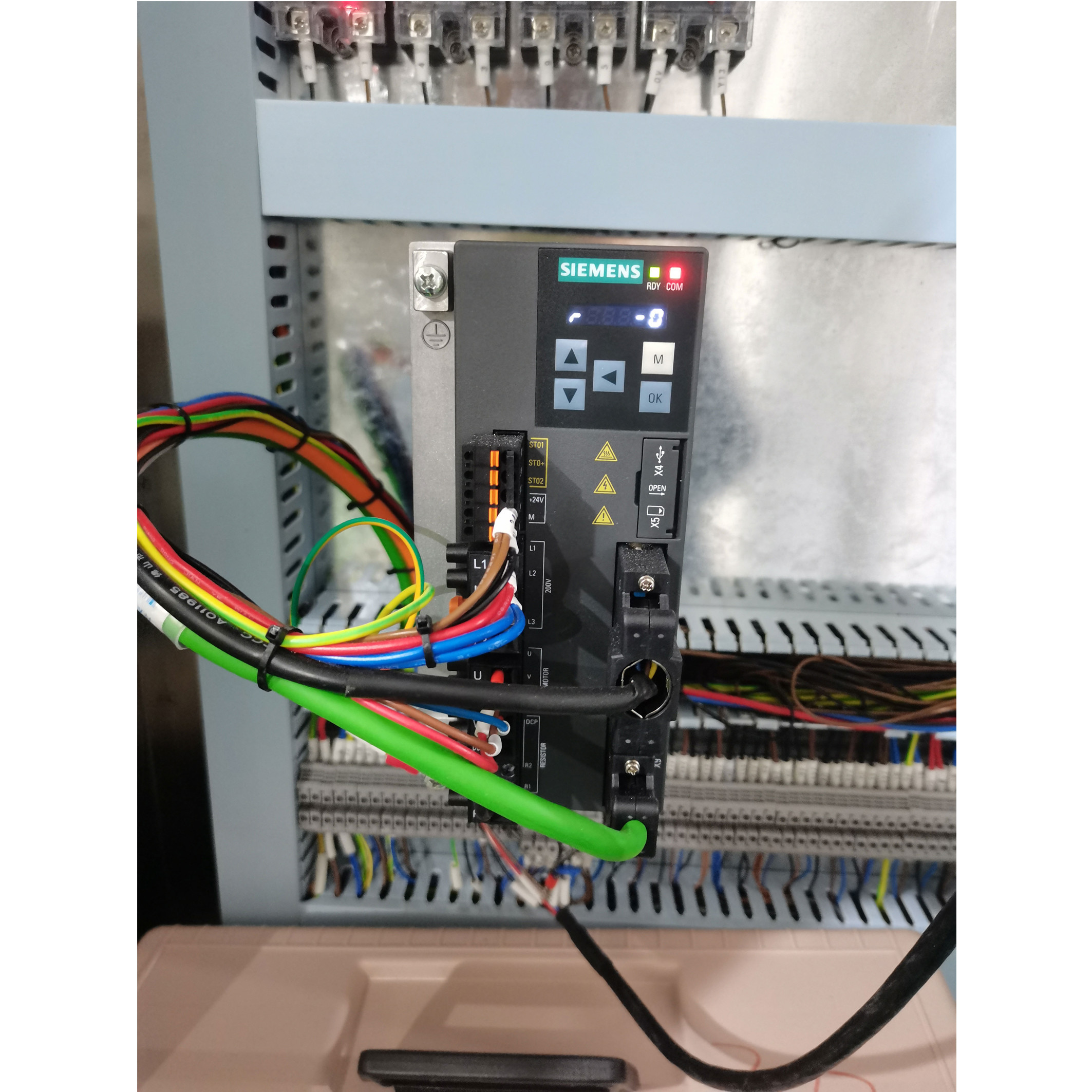

3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.

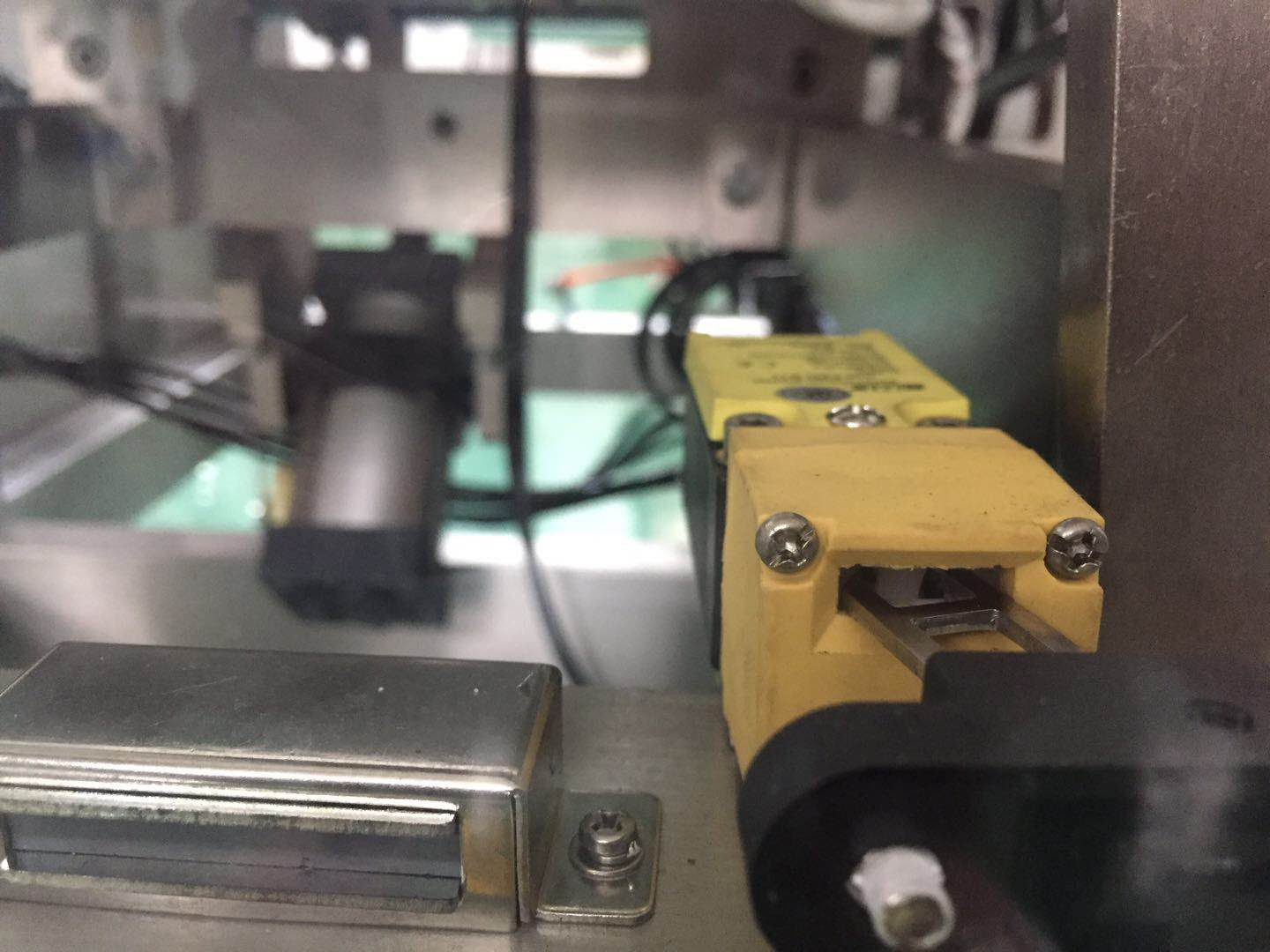

4. Perfect alarm system to make problem solved quickly.
5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
6. Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.
Technical Specification:
| Model | ZH-V420 |
| Packing speed | 25-70Bags/Min |
| Bag size(mm) |
W:60-200mm L:60-300mm |
| Bag making mode | Pillow bag, standing bag (gusseted), Punching bag Connecting bag |
| Max film width (mm) | 420 |
| Thickness of film (mm) | 0.04-0.09mm |
| Air consumption | 0.3m3/min 0.8MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE ,NY/PE, PET/ PET. |
| Power Parameter | 220V50/60Hz 2.2KW |
| Dimension(mm) | 1530(L)×970(W)×1700(H) |
| Gross Weight(kg) | 450 |
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to
providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
