Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DW300 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5000-6000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 300 Sets per month |
| Name: | High Speed Check Weigher | Function: | Check Weight |
|---|---|---|---|
| Weighing Range: | 50-5000g | Frame Material: | SUS304 |
| Power Supply: | 220V | Display Type: | Touch Screen |
| Operating Mode: | Touch Operation | Scale Interval: | 0.2g |
| Belt Speed: | 70m/min | Rejector: | Air Blow, Pusher, Shifter |
| Highlight: | 70m/Min online check weigher,5000g online check weigher,0.2g belt check weigher |
||
Factory directly sale 70m/min belt speed high speed online checkweigher for sale
Technical Feature
1. Large size color LCD touch screen interface, the operation is simple and direct display.
2. Simple mechanical structure, can quickly remove cleaning maintenance.
3. Can store 100 product parameters, the convenient user use.
4. Automatic zero tracking system, guarantee the stability of detection.
5. Built-in temperature and noise compensation system, ensure the data is reliable.
6. The dynamic weight compensation technology, ensure the data to be more effective
7. Parameters set password protection, only management operation.
8. Strong self diagnosis function, effectively improve the efficiency of the operator to deal with failure.
|
Technical Specification |
|||||||
| Model | ZH-DW160 | ZH-DW230S | ZH-DW230L | ZH-DW300 |
ZH-DW400 |
ZH-DW500 | ZH-DW600 |
| Weighing Range | 10-600g | 20-2000g | 20-2000g | 50-5000g | 0.2-10kg | 0.5-20kg | 10-50kg |
| Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | 1g | 1g | 5g |
| Best Accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | ±2g | ±5g |
| Max Speed | 250 pcs/min | 200 pcs/min | 155pcs/min | 140pcs/min | 105pcs/min | 75pcs/min | 75pcs/min |
| Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | 70m/min | 60m/min | 60m/min |
| Product Size | 200mm (L) 150mm (W) |
250mm (L) 220mm (W |
350mm (L) 220mm (W) |
400mm (L) 290mm (W) |
550mm (L) 390mm (W) |
700mm (L) 490mm (W) |
1000mm (L) 590mm (W) |
| Weighing Platform Size |
280mm (L) 160mm (W) |
350mm (L) 230mm (W) |
450mm (L) 230mm (W) |
500mm (L) 300mm (W) |
650mm (L) 400mm (W) |
800mm (L) 500mm (W) |
1200mm (L) |
| No. of Sorting Segment | 2 Segments or 3 Segments | ||||||
| Rejector | air blow, Pusher, shifter | ||||||
| Power Parameter | 220V/110V 50/60Hz | ||||||
| Protection Level | IP30/IP54/IP66 | ||||||
| Frame Material | SUS304 | ||||||
Application of the Check Weigher
ZH-DW series check weigher is suitable for in line weight check of food, medicine, chemical, consumer
product, etc.It has a widely application.

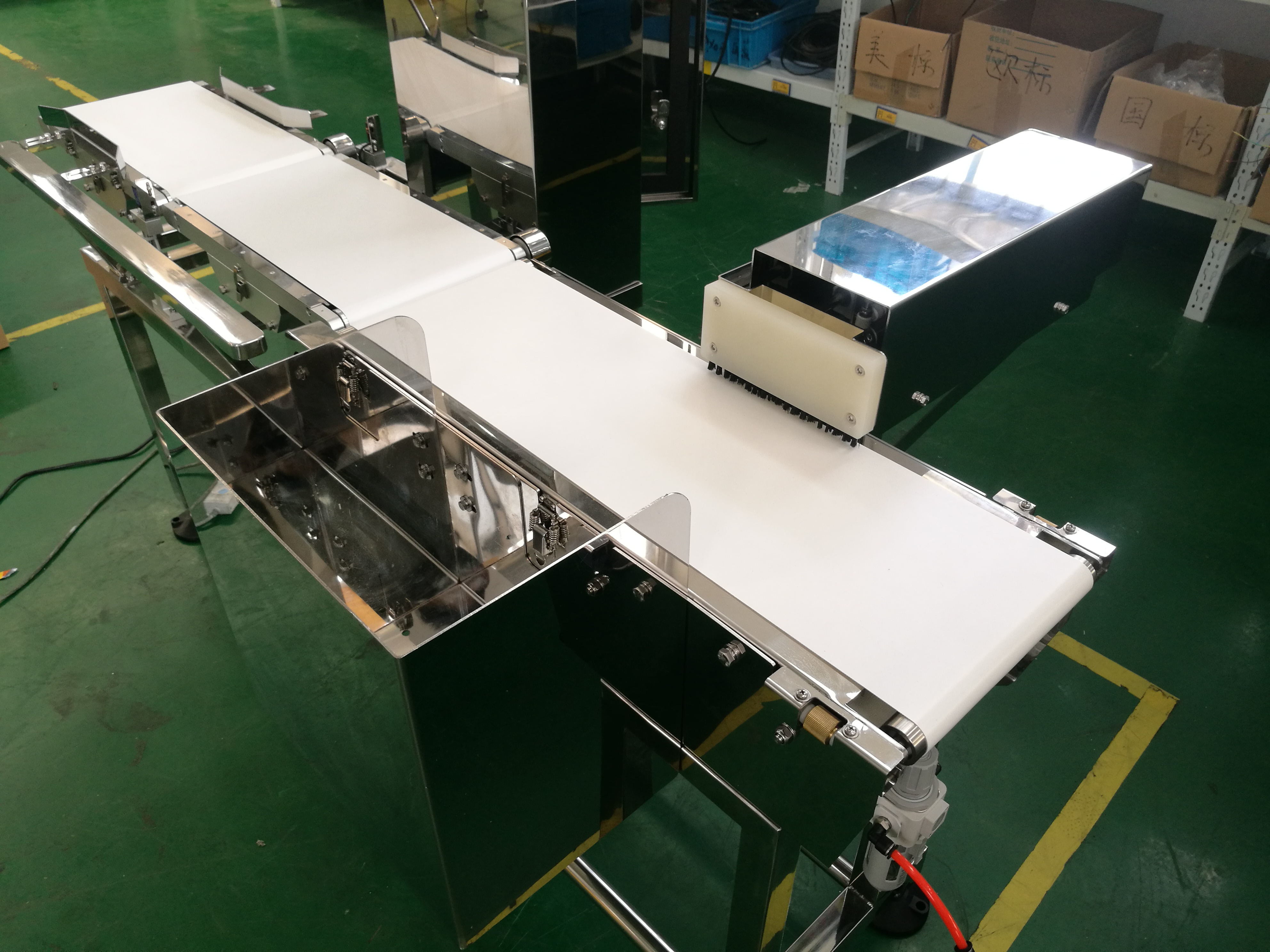

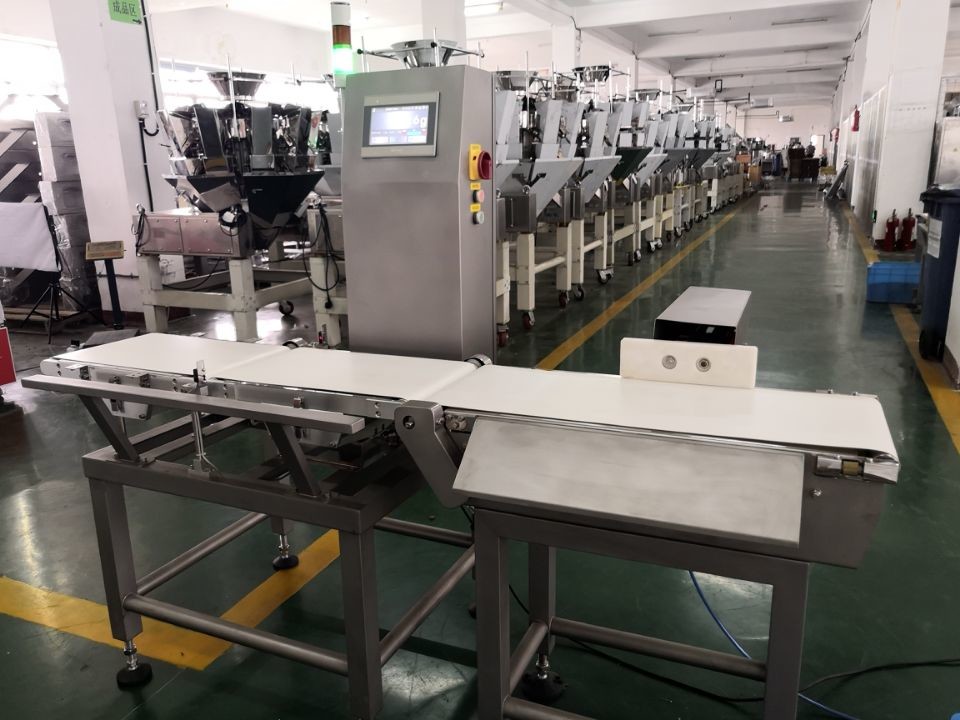

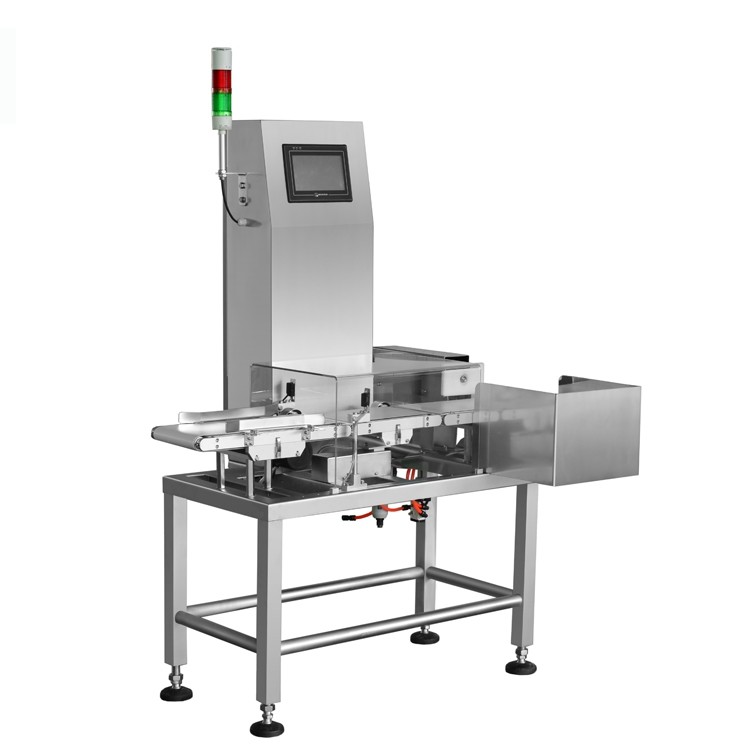

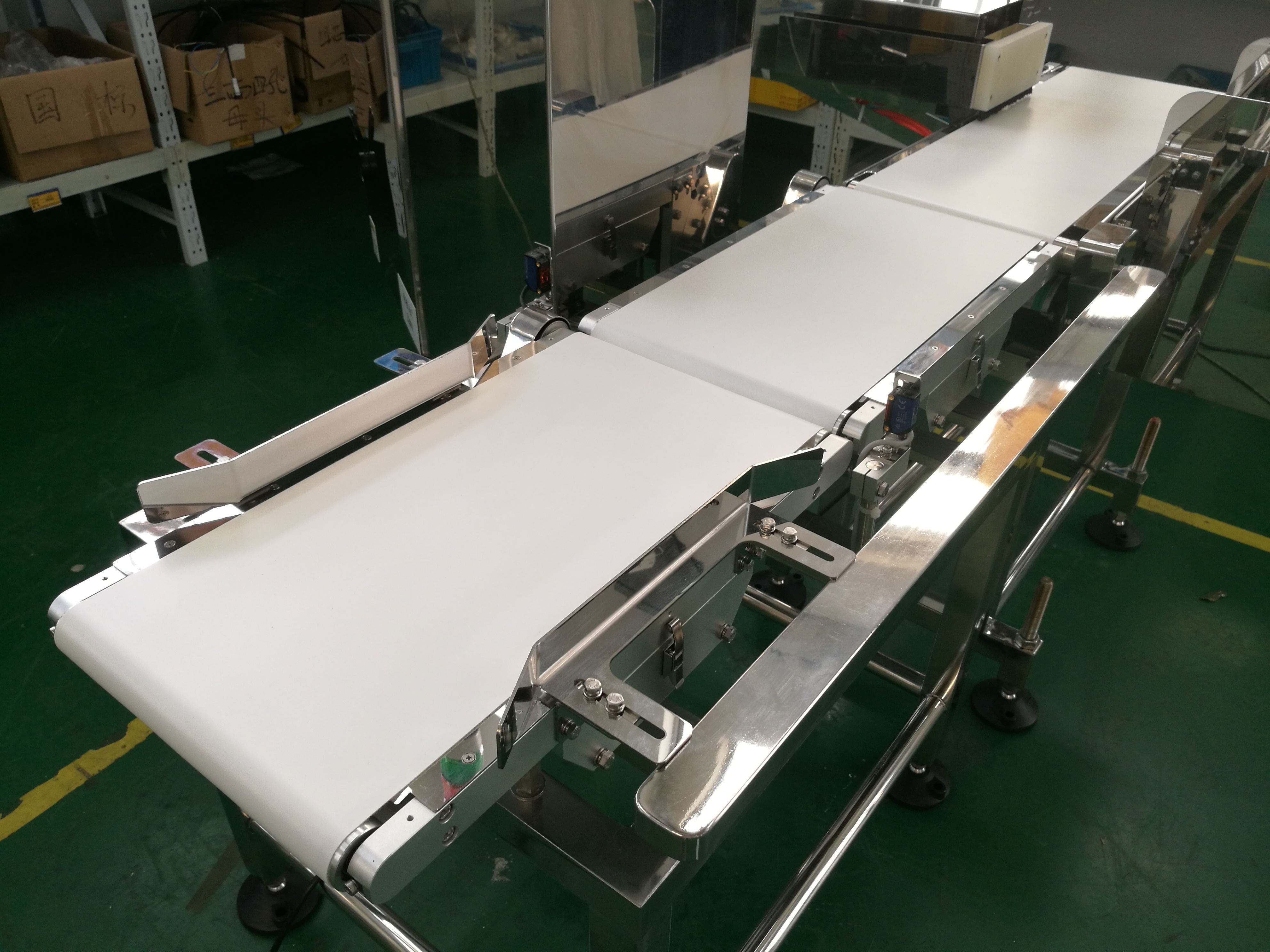

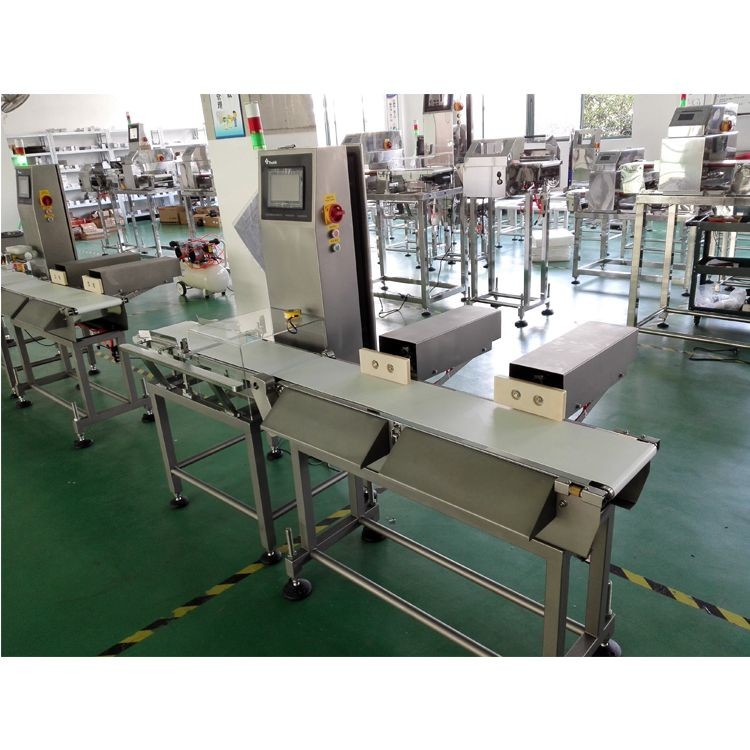

Machine Details
