Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | ZON PACK |
| Certification: | CE Certification |
| Model Number: | ZH-DW300 |
| Minimum Order Quantity: | 1 Set |
| Price: | 5000-6000USD per set |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-25 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 300 Sets per month |
| Name: | High Speed Check Weigher | Model: | ZH-DW300 |
|---|---|---|---|
| Weighing Range: | 50-5000g | Frame Material: | SUS304 |
| Display Type: | Touch Screen | Scale Interval: | 0.2g |
| Belt Speed: | 70m/min | Rejector: | Air Blow, Pusher, Shifter |
| Protection Level: | IP30/IP54/IP66 | Language: | Chinese And English |
| Highlight: | Online Checkweigher Conveyor,5000g checkweigher conveyor,0.2g online checkweigher |
||
Professional manufacturer online weight checking checkweigher conveyor for fresh food
Technical Feature
• Easy Integration: adjustable height, modular design
• Sturdy and robust construction: Stainless Steel 304
• Easy to use: touch screen operating system is easy to use with user password protection
• Easy to clean: detachable belt easy to to take apart for cleaning and set up.
• Variable Speed: Speed configurable based on application
• High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent
accuracy and speed
• Zero Trace: Manual and Automatic Calibration, increase accuracy
• Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in
USB disk
• Connectivity: standard ports for data exportation and connect to PC
• Self-learning: no need to calibration, system will find the best set up for the product.
|
Technical Specification |
|||||||
| Model | ZH-DW160 | ZH-DW230S | ZH-DW230L | ZH-DW300 |
ZH-DW400 |
ZH-DW500 | ZH-DW600 |
| Weighing Range | 10-600g | 20-2000g | 20-2000g | 50-5000g | 0.2-10kg | 0.5-20kg | 10-50kg |
| Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | 1g | 1g | 5g |
| Best Accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | ±2g | ±5g |
| Max Speed | 250 pcs/min | 200 pcs/min | 155pcs/min | 140pcs/min | 105pcs/min | 75pcs/min | 75pcs/min |
| Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | 70m/min | 60m/min | 60m/min |
| Product Size | 200mm (L) 150mm (W) |
250mm (L) 220mm (W |
350mm (L) 220mm (W) |
400mm (L) 290mm (W) |
550mm (L) 390mm (W) |
700mm (L) 490mm (W) |
1000mm (L) 590mm (W) |
| Weighing Platform Size |
280mm (L) 160mm (W) |
350mm (L) 230mm (W) |
450mm (L) 230mm (W) |
500mm (L) 300mm (W) |
650mm (L) 400mm (W) |
800mm (L) 500mm (W) |
1200mm (L) |
| No. of Sorting Segment | 2 Segments or 3 Segments | ||||||
| Rejector | air blow, Pusher, shifter | ||||||
| Power Parameter | 220V/110V 50/60Hz | ||||||
| Protection Level | IP30/IP54/IP66 | ||||||
| Frame Material | SUS304 | ||||||
Application of the Check Weigher
Checkweigher substantiates the extensive know-how that the company has accumulated in weighing technology
over the years.
By including a high-precision weight checking function in the production line, your product quality can improve
without any decline in efficiency. The series provides a whole range of features for handling different products, and
incorporate new functions in response to modern necessities.

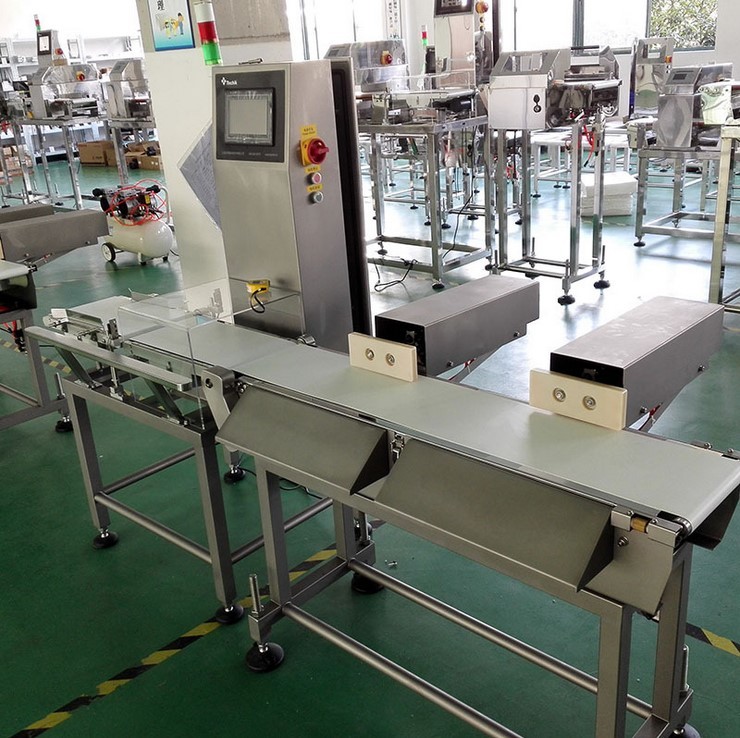

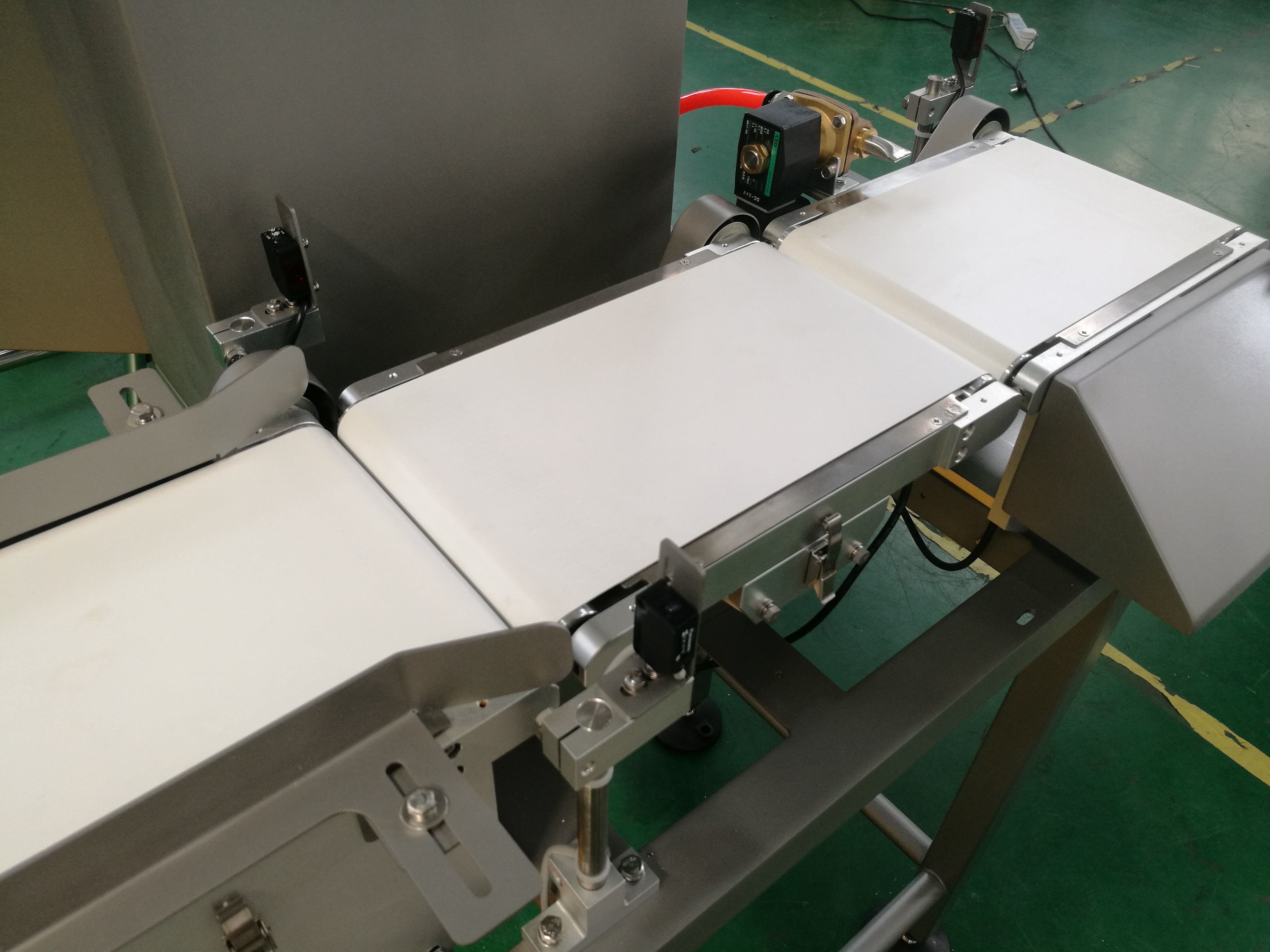

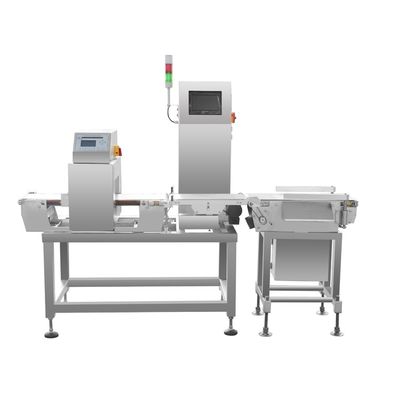

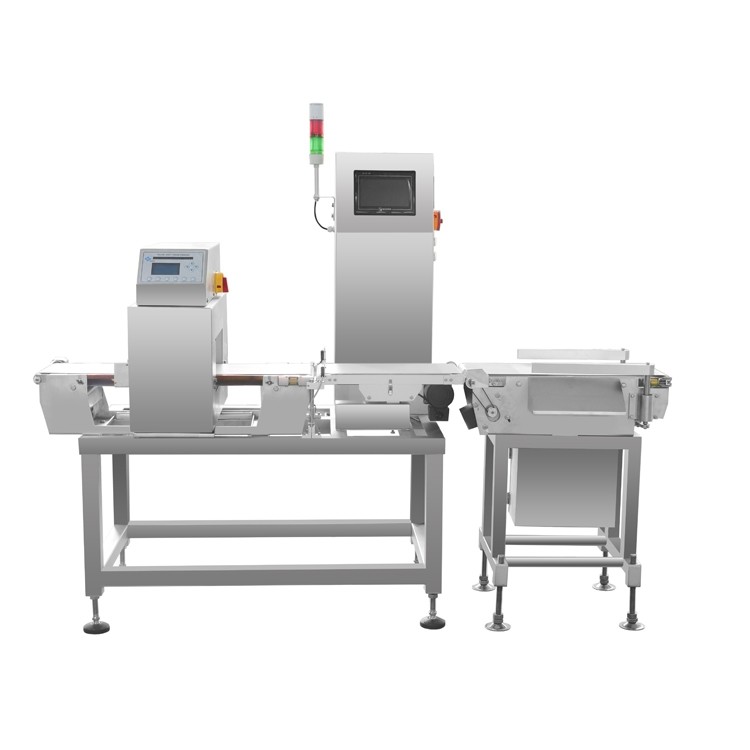

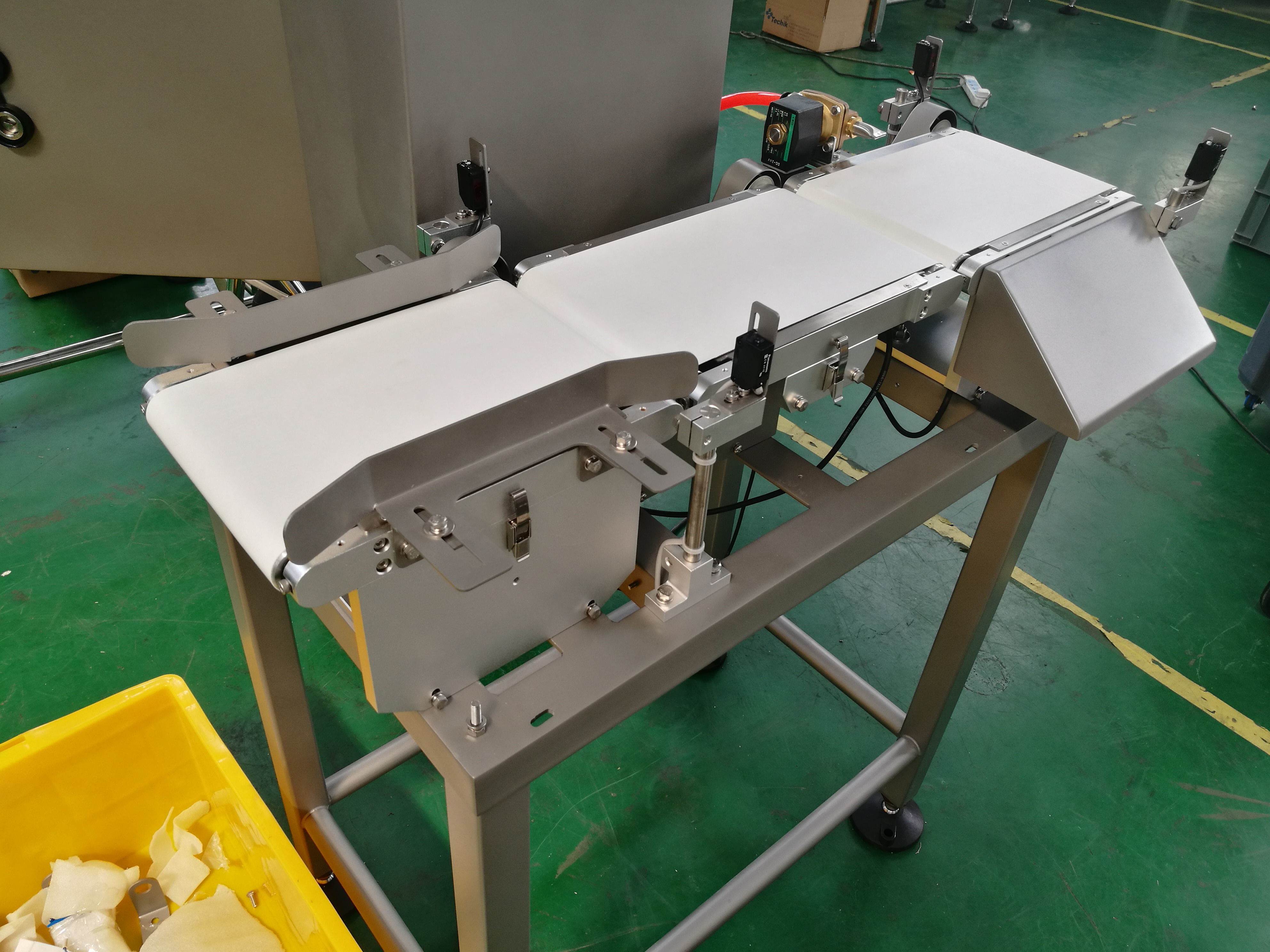

Machine Details
