Hangzhou Zon Packaging Machinery Co.,Ltd
| Place of Origin: | China,zhejiang |
|---|---|
| Brand Name: | ZONPACK |
| Certification: | CE SGS |
| Model Number: | ZH-V320 |
| Minimum Order Quantity: | 1sets |
| Price: | USD+7300+Sets |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-35working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 99+sets+per month |
| Material: | 304SS | Name: | VFFS Packing Machine |
|---|---|---|---|
| Packaging Type: | Pillow Bag . Punching Bag , Gussted Bag , Connecting Bag | Warranty: | 1 Years |
| Driven Type: | Electric | Condition: | New |
| After Warranty Service: | Free Spare Parts , | Function: | Filling , Date Pringting , Sealing |
| Feature: | Adjust The Bag Width Automaticlly | ||
| High Light: | 500g VFFS Packing Machine,SS304 VFFS Packing Machine,500g pet food packing machine |
||

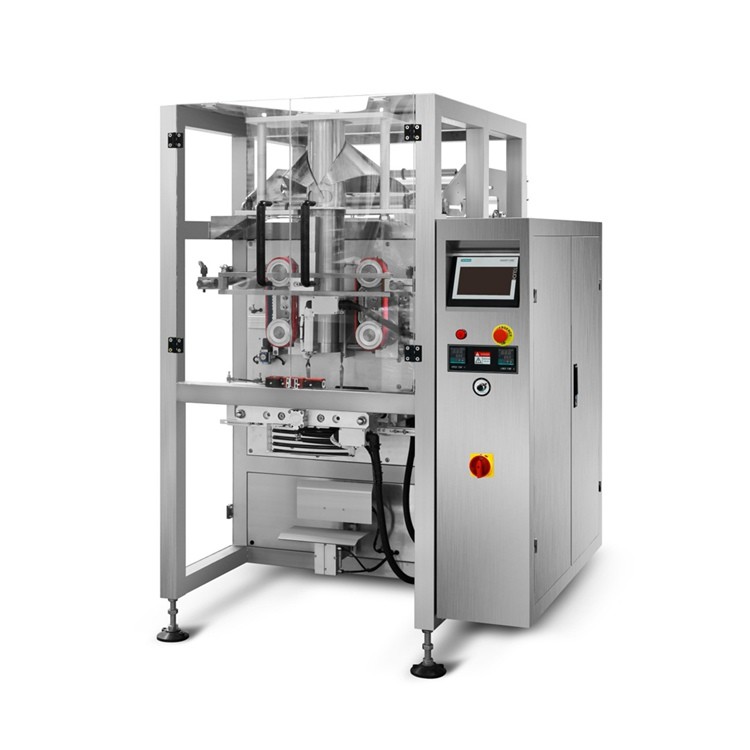

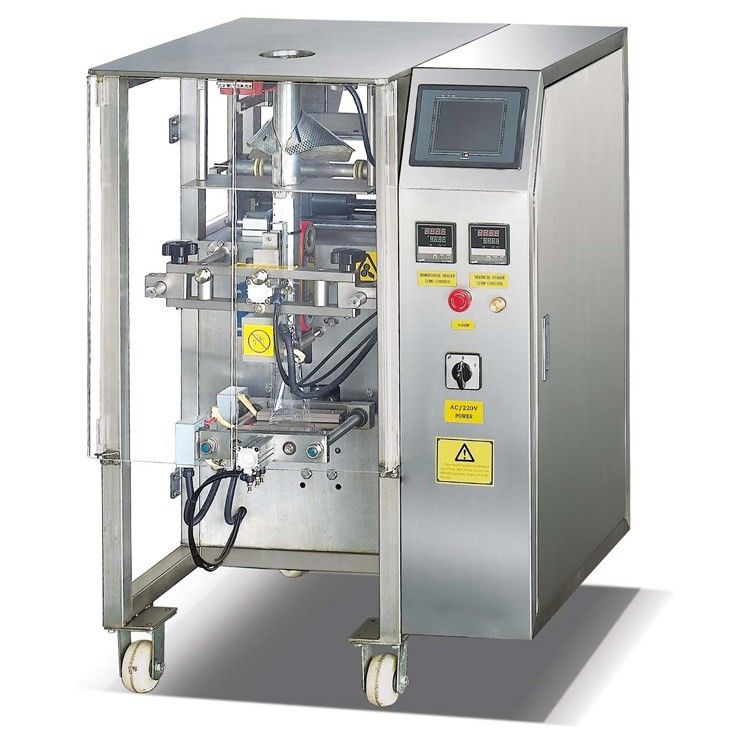

High speed vertical pet food packing machine for sunflower seed snacks packaging machine
I. Application of ZH-V320 Vertical Packing Machine
It is suitable for packing grains, pulses, seeds, salt,coffee beans, maize, nuts, candies, dried fruits, pasta, vegetables, crispy rice ,Potato Chips ,Snacks ,candy, pet food,etc.
II. Technical Feature
1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3. The machine will automatically complete all packaging processes from measuring, feeding, filling, Printing, finished bag.
4. Perfect alarm system to make problem solved quickly.
5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
6. Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.
7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.
III. Technical Specification
| Model | ZH-V320 |
| Packing speed | 25-70 Bags / Min |
| Bag size(mm) |
ZH-V320(W) 60-150 (L) 50-200 ZH-V420 (W) 60-200 (L) 60-300 ZH-V520 (W) 90-250 (L) 80-350 ZH-V620 (W) 100-300 (L) 100-400 ZH-V720 (W) 200-350 (L) 100-450 |
| Bag making mode |
Pillow bag, standing bag (gusseted), punch, Linked bag |
| Range of measuring (g) | 500 |
| Maximum width of packing film (mm) | 320 |
| Thickness of film (mm) | 0.04-0.08 |
| Air consumption | 0.4m3/min 0.6MPa |
| Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET, |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Package Volume (mm) | 1115(L)×800(W)×1361(H) |
| Gross Weight (kg) | 300kg |

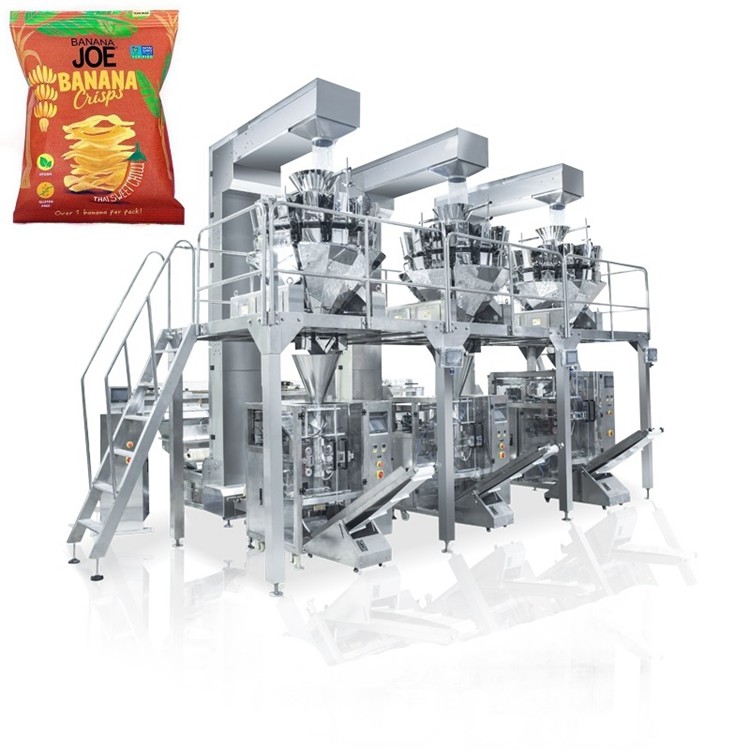

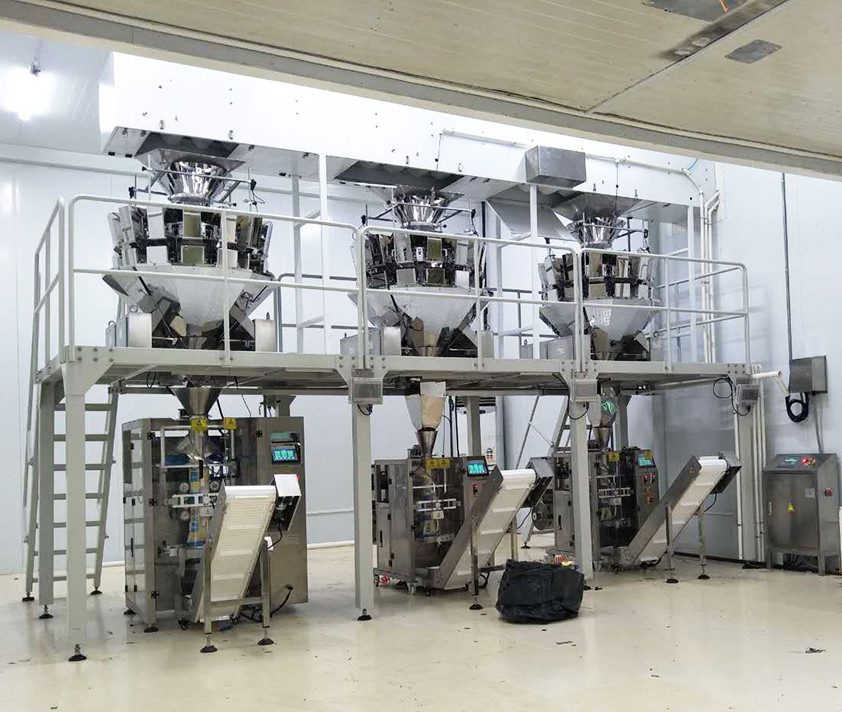

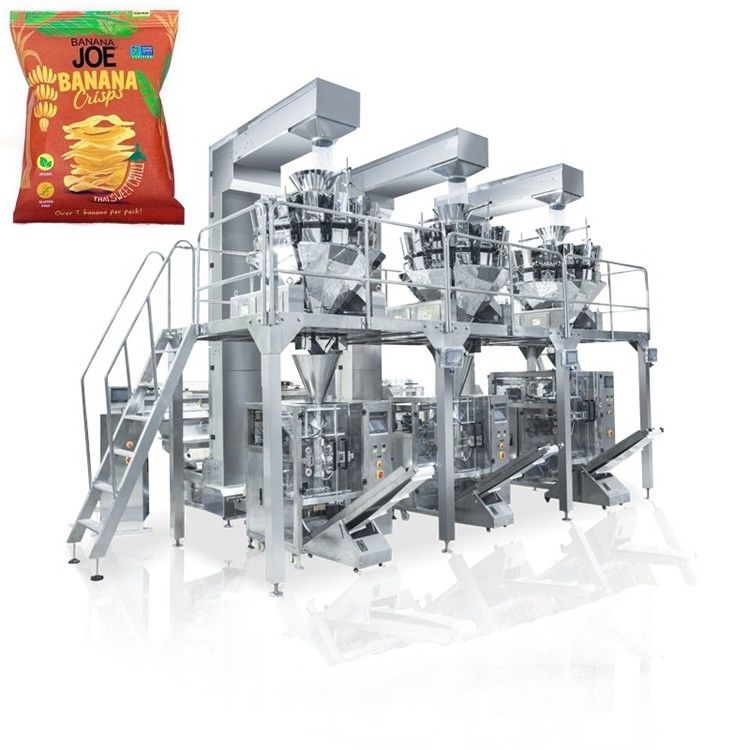

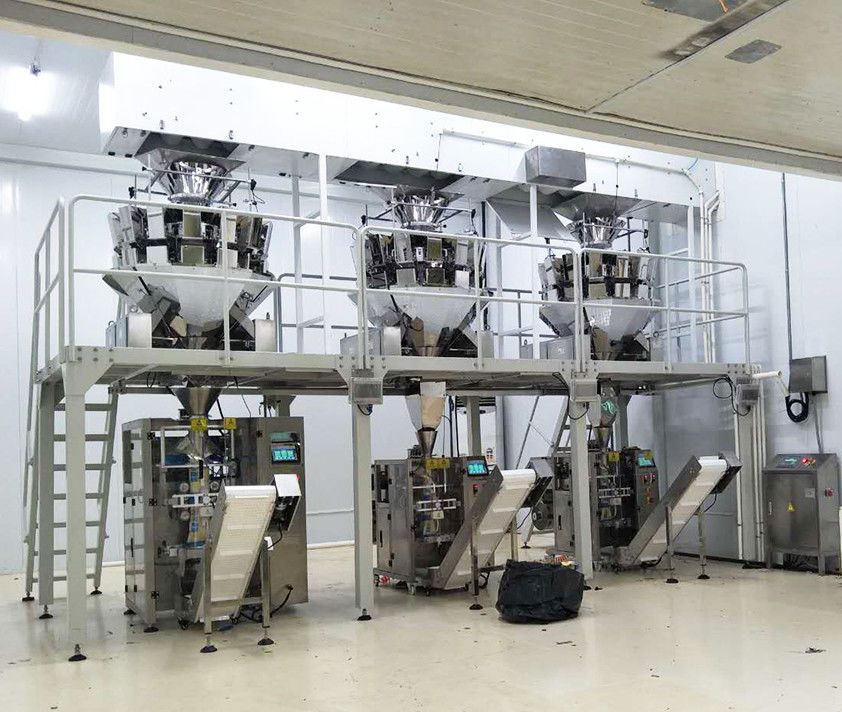

Some case :
Why choose ZONPACK :
