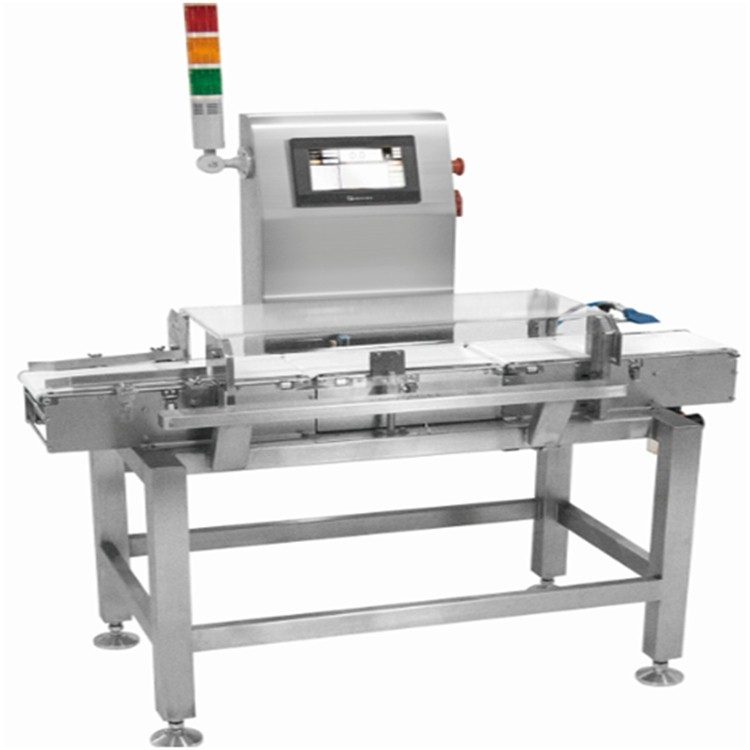

CE Waterproof Automatic Check Weigher With Rejector

CE Waterproof Automatic Check Weigher With Rejector
CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector CE Waterproof Automatic Check Weigher With Rejector
Basic Information
Place of Origin: China
Brand Name: ZON PACK
Certification: CE Certification
Model Number: ZH-DW230
Minimum Order Quantity: 1 Set
Price: 5000-6000USD per set
Packaging Details: Wooden case
Delivery Time: 20-25 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 300 Sets per month
Get Best Price Contact Now
Name: High Speed Check Weigher Model: ZH-DW230
Weighing Range: 20-2000g Frame Material: SUS304
Display Type: Touch Screen Zero Calibration: Auto Zero Tracking
Scale Interval: 0.1g Belt Speed: 70m/min
Rejector: Air Blow, Pusher, Shifter Protection Level: IP30/IP54/IP66
Highlight:

IP54 automatic check weigher

,

20g automatic check weigher

,

SUS304 check weigher system

High efficiency stable performance automatic check weigher with rejector



Technical Feature

1. Reinforced stainless steel structure; water-proof design

2. Equipped with German HBM high precision sensor to fulfill high-speed and stable detection

3. Equipped with Dynamic Weighing Technology, Automatic Zero Setting and Tracking Technology

4. 100 product memories easily to be edited and stored

5. Convenient user interface allowing users to switch between different products

6. USB flash drive supported to store data

7. Touch panel based user interface with multi-language supported



                                                              Technical Specification
Model ZH-DW160 ZH-DW230S ZH-DW230L ZH-DW300

 ZH-DW400

 ZH-DW500 ZH-DW600
Weighing Range 10-600g 20-2000g 20-2000g 50-5000g 0.2-10kg 0.5-20kg 10-50kg
Scale Interval 0.05g 0.1g 0.1g 0.2g 1g 1g 5g
Best Accuracy ±0.1g ±0.2g ±0.2g ±0.5g ±1g ±2g ±5g
Max Speed 250 pcs/min 200 pcs/min 155pcs/min 140pcs/min 105pcs/min 75pcs/min 75pcs/min
Belt Speed 70m/min 70m/min 70m/min 70m/min 70m/min 60m/min 60m/min
Product Size 200mm (L)
150mm (W)		 250mm (L)
220mm (W		 350mm (L)
220mm (W)		 400mm (L)
290mm (W)		 550mm (L)
390mm (W)		 700mm (L)
490mm (W)		 1000mm (L)
590mm (W)
Weighing
Platform
Size		 280mm (L)
160mm (W)		 350mm (L)
230mm (W)		 450mm (L)
230mm (W)		 500mm (L)
300mm (W)		 650mm (L)
400mm (W)		 800mm (L)
500mm (W)



1200mm (L)
600mm (W)

No. of Sorting Segment 2 Segments or 3 Segments
Rejector air blow, Pusher, shifter
Power Parameter 220V/110V 50/60Hz
Protection Level IP30/IP54/IP66
Frame Material SUS304





Application

It is suitable to check weight of various product, over or less weight will be rejected out,qualify bags will

be passed to next equipment.

CE Waterproof Automatic Check Weigher With Rejector 0

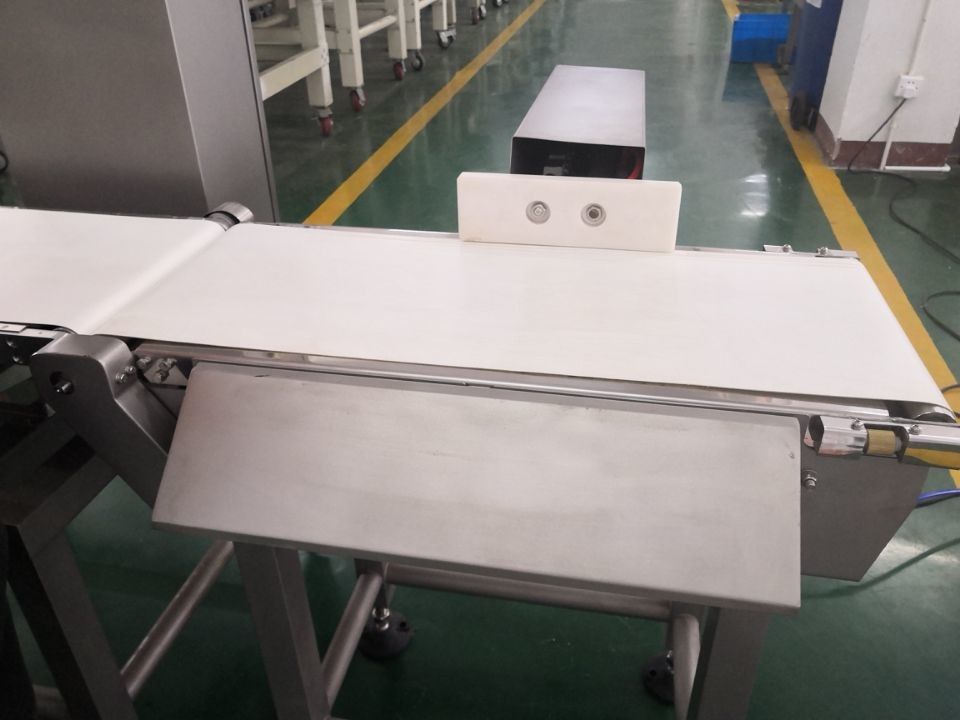

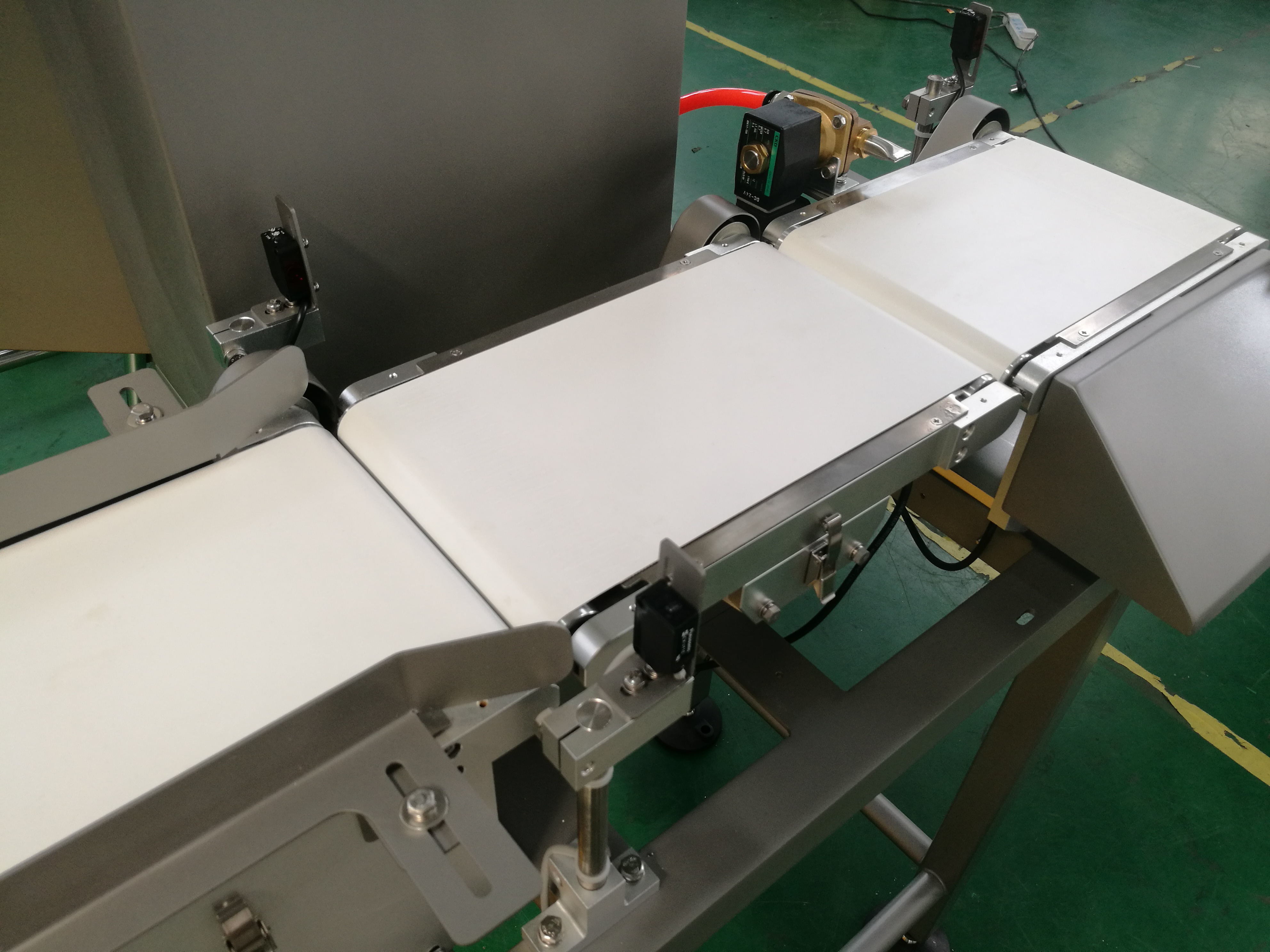

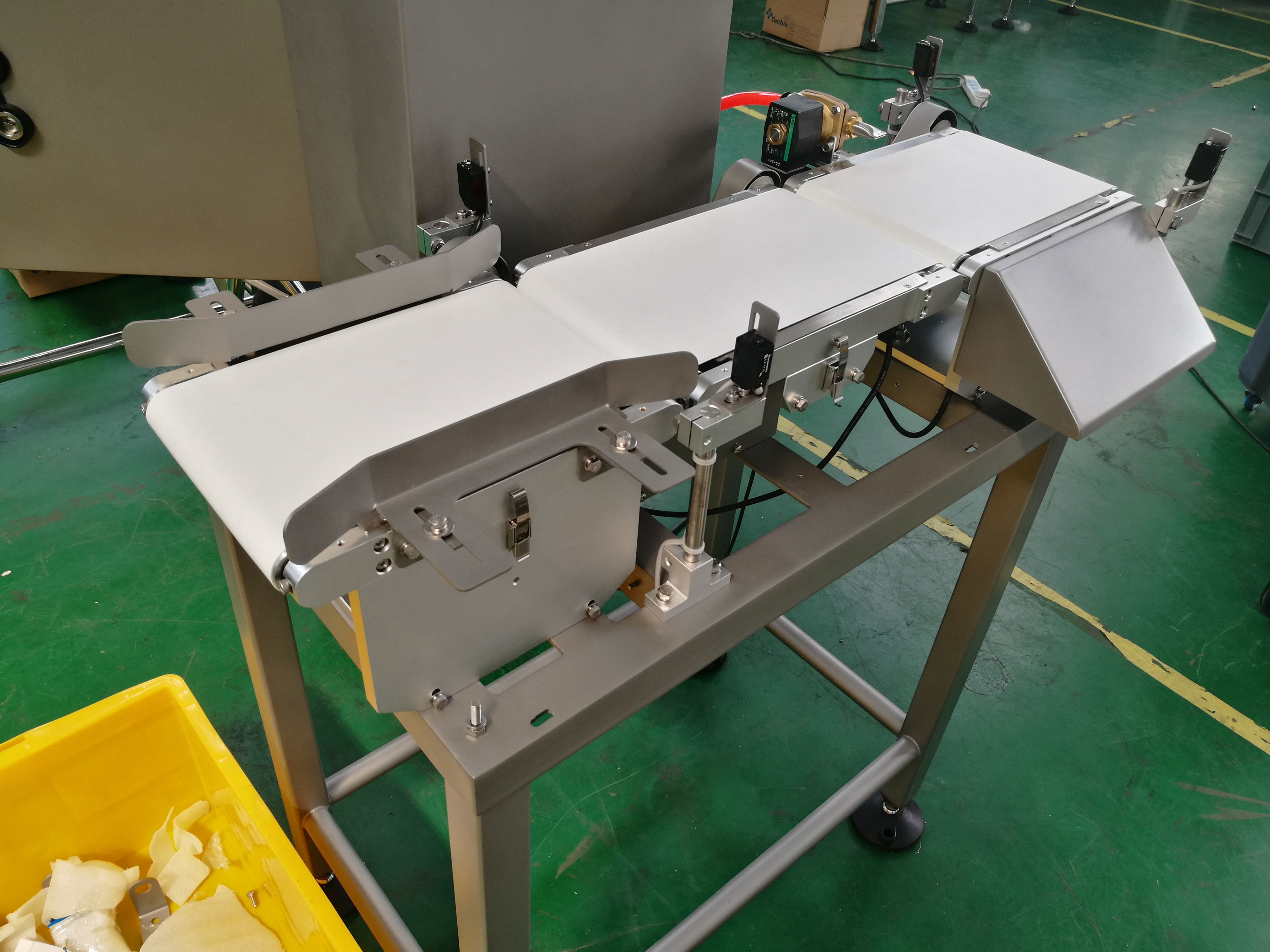

Machine Details

CE Waterproof Automatic Check Weigher With Rejector 1

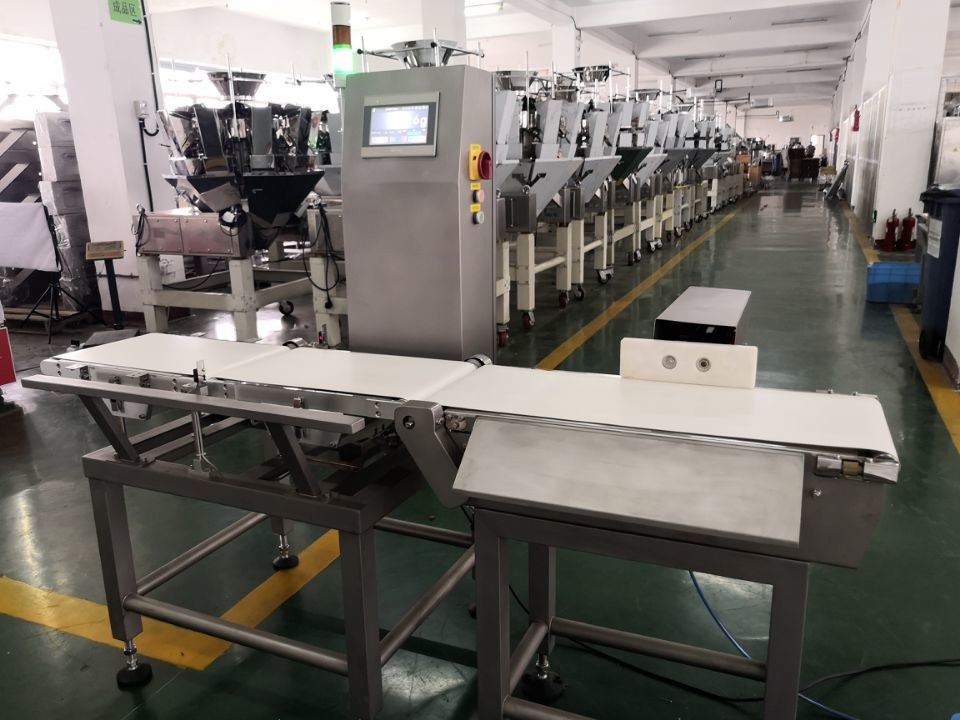

Our Cases

CE Waterproof Automatic Check Weigher With Rejector 2





Our Service

Semi-automatic beans bag filling and packing machine for small business 3 Semi-automatic beans bag filling and packing machine for small business 4





Pre-Sales Service                                   After-Sales Service
* Inquiry and consulting support.            * Training how to install the machine, training how to use the machine.
* Sample testing support.                       * Engineers available to service machinery overseas.

* View our factory.


Service Terms:

Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to

providing customers with perfect and efficient service.

1. Training service:

We will train your engineer to install our machines and how to fix some small problems.You can send your

engineer to our factory or we can dispatch our engineer to your company.

2. Trouble shooting service:

Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the

way,you need to afford the round trip and accommodation fee.

3.Spare part replacement:

Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.

4.The documents that will be supplied:

1) Invoice

2) Packing List

3) Bill of Lading

4) Other files that buyer wanted.
